Clack WS1CI - Front Cover and Drive Assembly

Page 30 WS1CI & WS1.25CI Manual

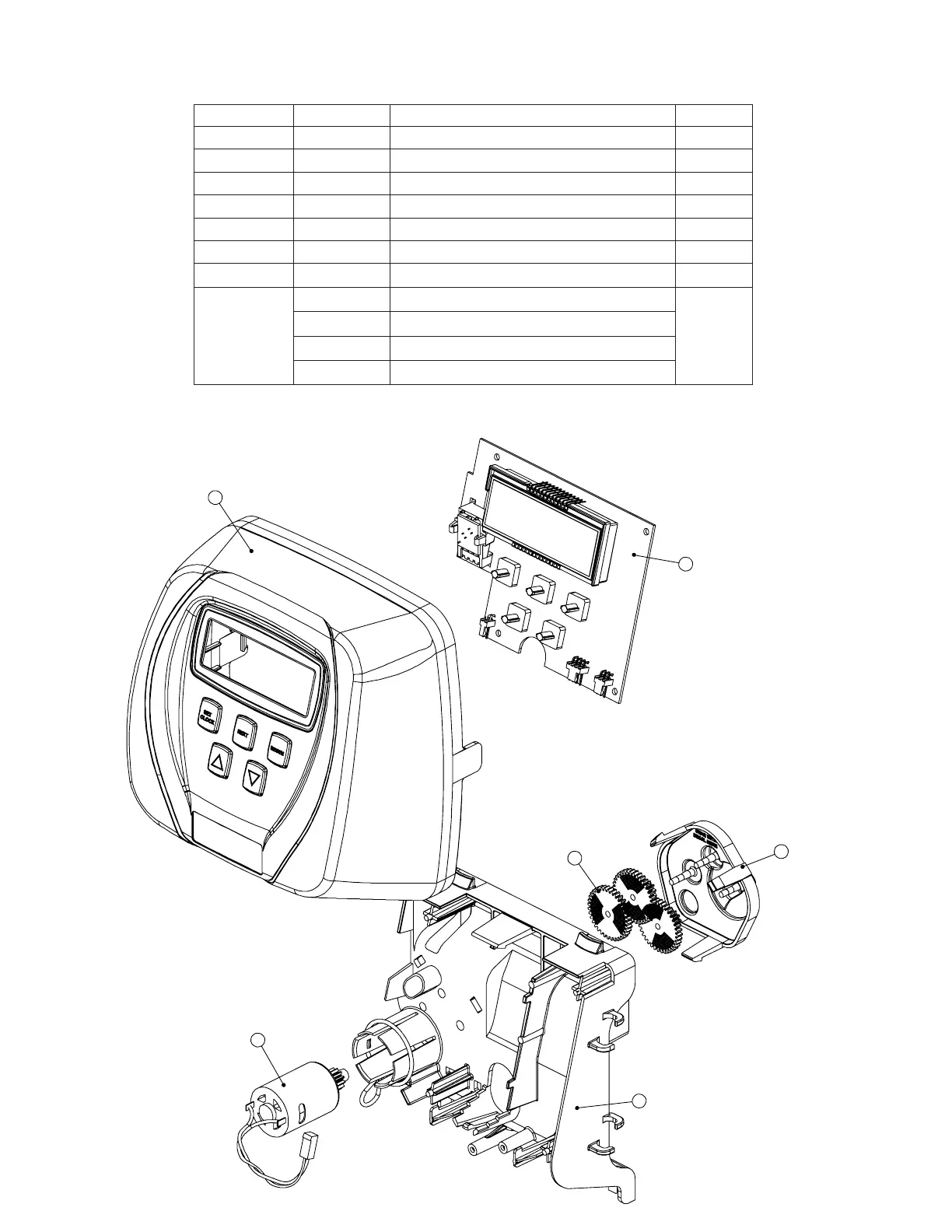

Front Cover and Drive Assembly
1
4
3
2
6
5
Drawing No. Order No. Description Quantity
1 V3175CI-01 WS1CI Front Cover ASY 1
2 V3107-01 WS1 Motor 1
3 V3106-01 WS1 Drive Bracket & Spring Clip 1
4 V3108CI WS1CI PC Board 1
5 V3110 WS1 Drive Gear 12x36 3
6 V3109 WS1 Drive Gear Cover 1
V3002CI WS1CI Drive ASY *
Not Shown
V3186 WS1 AC ADAPTER 110V-12V
1
V3186EU WS1 AC ADAPTER 220-240V-12V EU
V3186UK WS1 AC ADAPTER 220-240V-12V UK
V3186-01 WS1 AC ADAPTER CORD ONLY
* Drawing number parts 2 through 6 may be purchased as a complete assembly, part V3002CI.
