Clack WS1CI - Drain Line - 1

Page 36 WS1CI & WS1.25CI Manual









Water
Flow
Proper DLFC orientation
directs water flow toward
the washer face with
rounded edge.

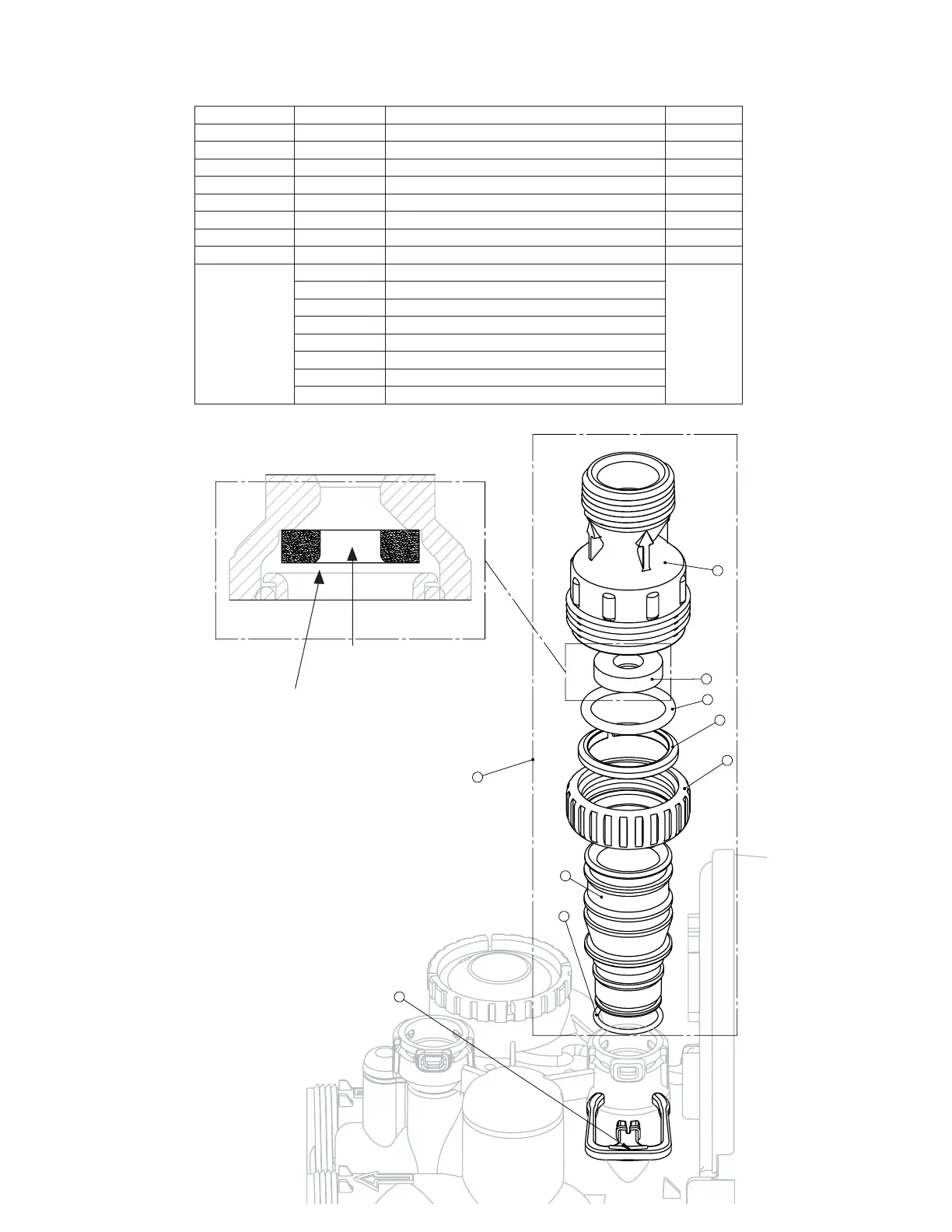

Drain Line – 1”
Drawing No. Order No. Description Quantity
1 H4615 Elbow Locking Clip 1
2 V3008-02 WS1 Drain FTG 1 Straight 1
3* V3166 WS1 Drain FTG Body 1 1
4* V3167 WS1 Drain FTG Adapter 1 1
5* V3163 0-ring 019 1
6* V3150 WS1 Split Ring 1
7* V3151 WS1 Nut 1” QC 1
8* V3105 O-ring 215 1
9
V3190-090 WS1 DLFC 9.0 gpm for 1
One DLFC
must be
used if 1”
fi tting is
used
V3190-100 WS1 DLFC 10.0 gpm for 1
V3190-110 WS1 DLFC 11.0 gpm for 1
V3190-130 WS1 DLFC 13.0 gpm for 1
V3190-150 WS1 DLFC 15.0 gpm for 1
V3190-170 WS1 DLFC 17.0 gpm for 1
V3190-200 WS1 DLFC 20.0 gpm for 1
V3190-250 WS1 DLFC 25.0 gpm for 1
* Can be ordered as a set. Order number V3008-02, description: WS1 Drain FTG 1 Straight.
