Clack WS1CI User Manual

Page 38 WS1CI & WS1.25CI Manual

















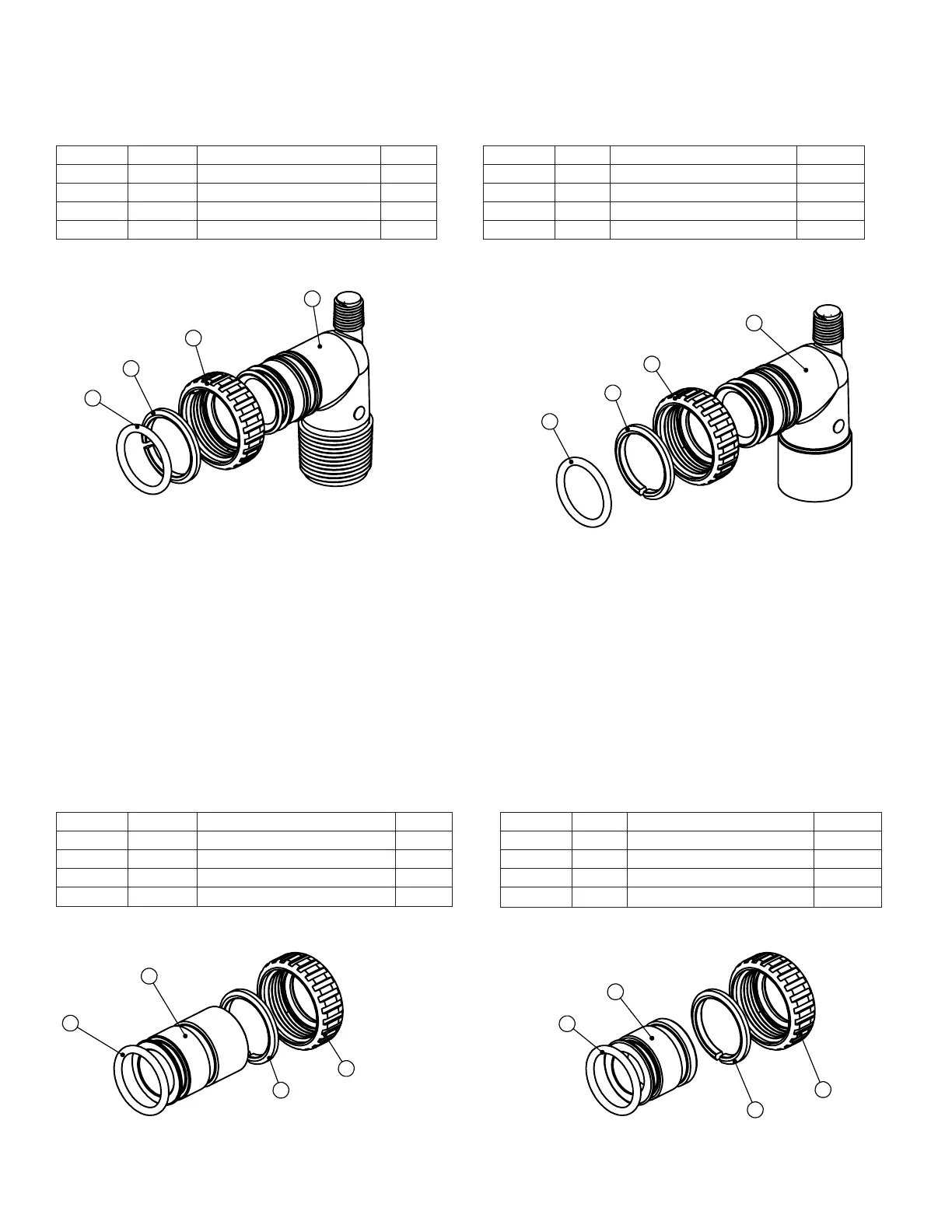

Installation Fitting Assemblies
Order No: V3007
Description: WS1 Fitting 1” PVC Male NPT Elbow Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3149 WS1 Fitting 1” PVC Male NPT Elbow 2
Order No: V3007-01
Description: WS1 Fitting ¾” & 1” PVC Solvent 90° ASY
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3189 WS1 Fitting ¾” & 1” PVC Solvent 90 2
Order No: V3007-02
Description: WS1 Fitting 1” Brass Sweat Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3188 WS1 Fitting 1” Brass Sweat 2
Order No: V3007-03
Description: WS1 Fitting ¾” Brass Sweat Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3188-01
WS1 Fitting ¾” Brass Sweat
2
