Page 34 WS1CI & WS1.25CI Manual

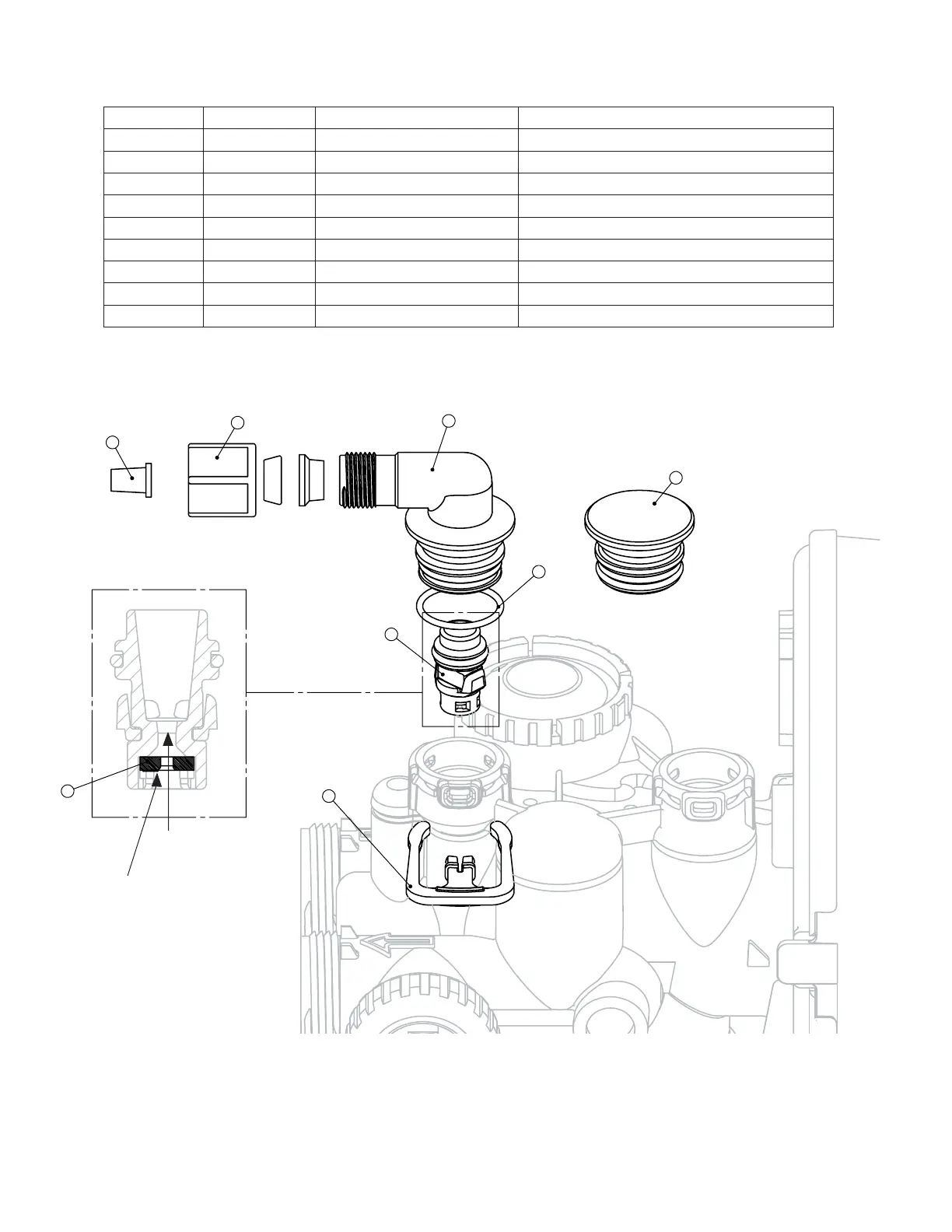

Refi ll Flow Control Assembly and Refi ll Port Plug
Drawing No. Order No. Description Quantity
1 V3195-01 WS1 Refi ll Port Plug ASY This part is required for backwash only systems
2 H4615 Elbow Locking Clip 1
3 JCP-P-6 Polytube insert 3/8” 1
4 JCPG-6PBLK Nut 3/8” 1
5 H4613 Elbow Cap 3/8” 1
6 V3163 0-ring 019 1
7 V3165-01* WS1 RFC Retainer ASY 1
8 V3182 WS1 RFC 1
Not Shown H4650 Elbow ½” with nut and insert Option
*Assembly includes V3182 WS1 RFC.
Water
Flow
Proper RFC orientation
directs refill water flow
towards the washer face
with rounded edge and
text.
To Next Page
