WS1CI & WS1.25CI Manual Page 31

Drawing No. Order No. Description Quantity

1 V3005 Spacer Stack Assembly 1

2 V3004 Drive Cap ASY 1

3 V3178 WS1 Drive Back Plate 1

4a V3011 WS1 Piston Downflow ASY 1

4b V3001-01 WS1 Piston Upflow ASY 1

5 V3174 WS1 Regenerant Piston 1

6 V3135 O-Ring -229 1

7 V3180 O-Ring -337 1

8 V3105 O-Ring -215 1

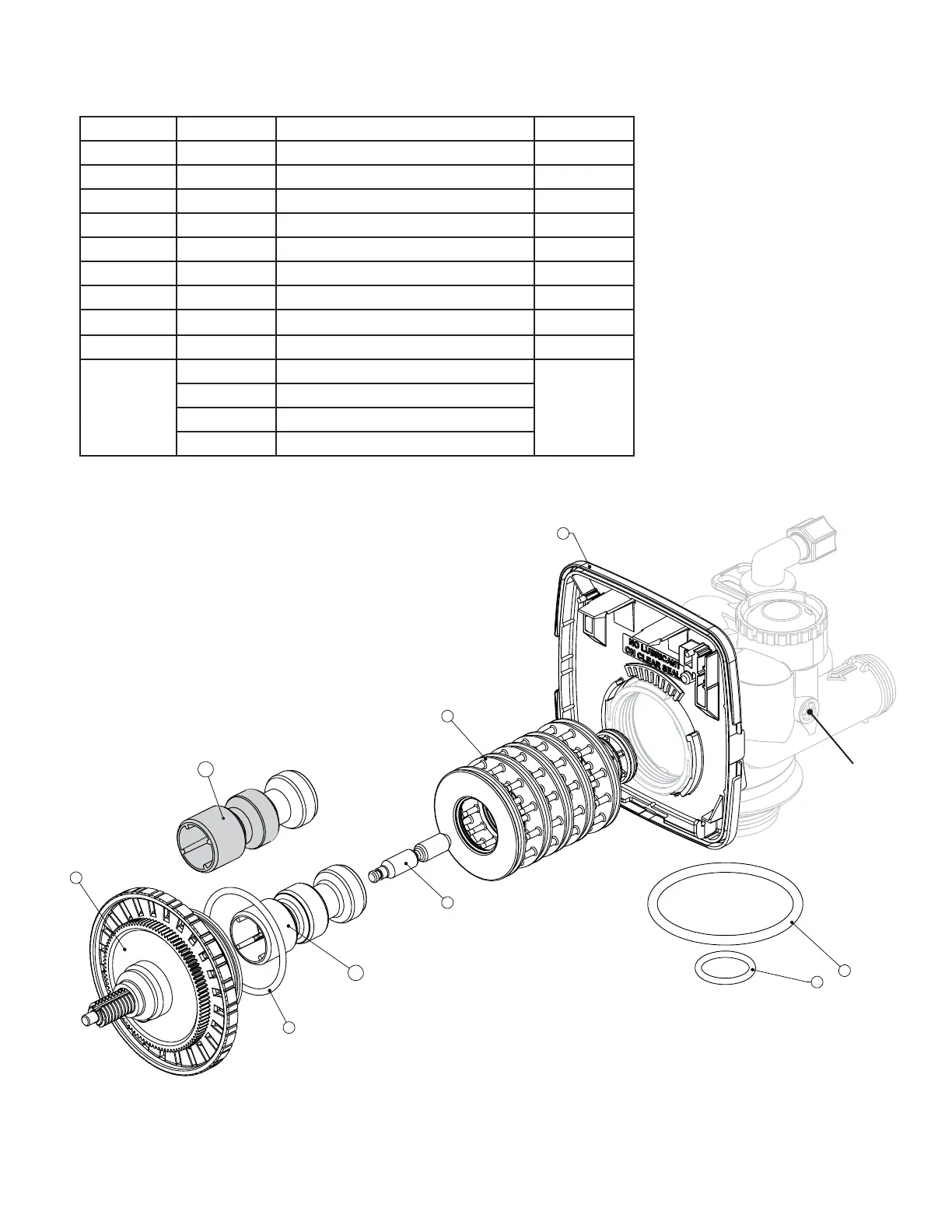

WS1CI Drive Cap Assembly, Downﬂ ow Piston, Upﬂ ow Piston, Regenerant Piston and Spacer Stack Assembly

Drawing No. Order No. Description Quantity

1 V3005 WS1 Spacer Stack Assembly 1

2 V3004 Drive Cap ASY 1

3 V3178 WS1 Drive Back Plate 1

4a V3011* WS1 Piston Downﬂ ow ASY 1

4b V3011-01* WS1 Piston Upﬂ ow ASY 1

5 V3174 WS1 Regenerant Piston 1

6 V3135 O-ring 228 1

7 V3180 O-ring 337 1

8 V3105 O-ring 215 (Distributor Tube) 1

Not Shown

V3001 WS1 Body ASY Downﬂ ow

V3001-02 WS1 Mixing Valve Body ASY

V3001UP WS1 Body ASY Upﬂ ow

V3001-02UP WS1 Mixing Valve Body Upﬂ ow ASY

*V3011 is labeled with DN and V3011-01 is labeled with UP.

Note: The regenerant piston is not used in backwash only applications.
