Page 32 WS1CI & WS1.25CI Manual
6
2
4
3
5
1
7
8
Grey Plug on all
WS1.25 bodies
*Grey Ring
*Grey Distributor
O-ring retainer
*Only for valves that have a
32mm Distributor Tube Opening

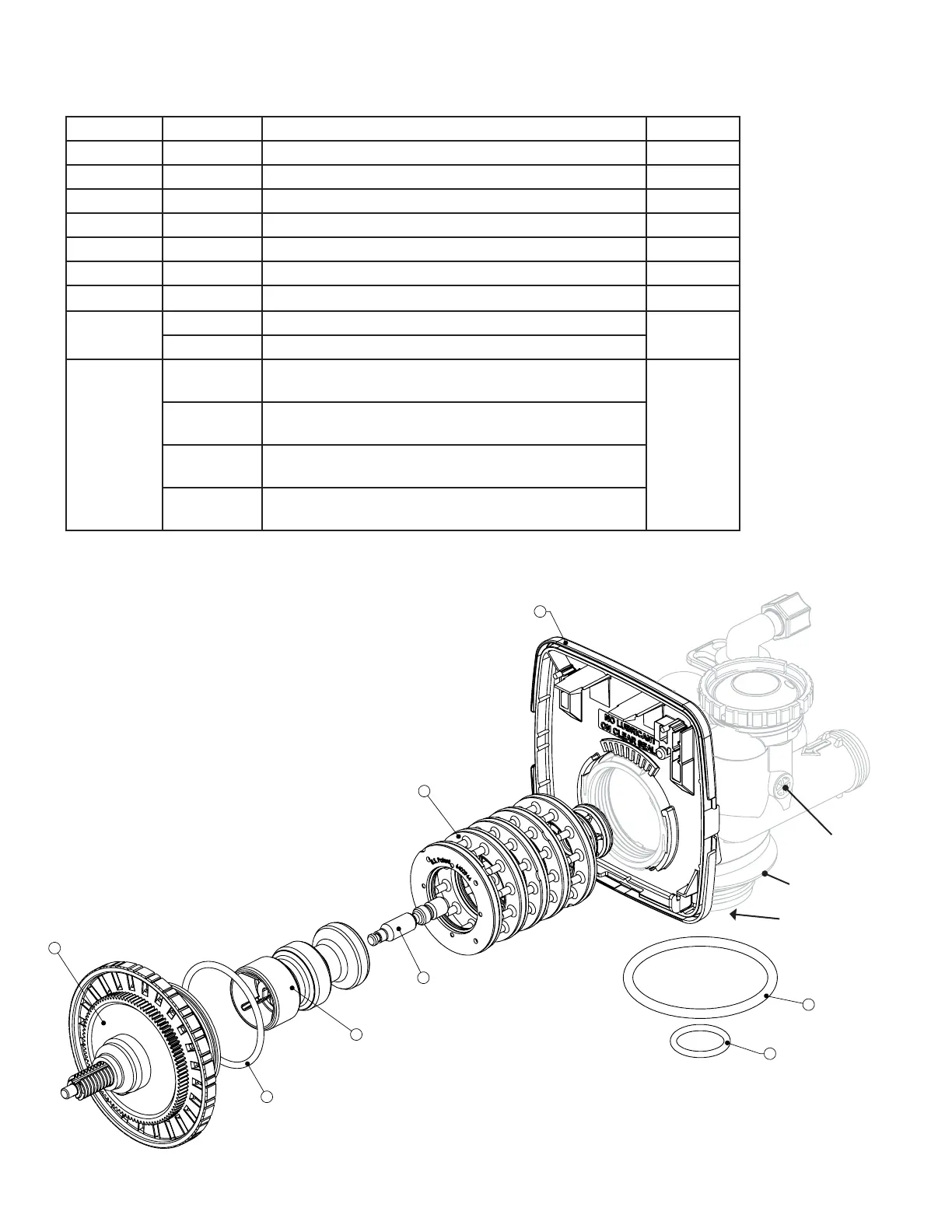

WS1.25CI Drive Cap Assembly, Downfl ow Piston, Regenerant Piston and Spacer Stack Assembly
Drawing No. Order No. Description Quantity
1 V3430 WS1.5 Spacer Stack Assembly 1
2 V3004 Drive Cap ASY 1
3 V3178 WS1 Drive Back Plate 1
4 V3407 WS1.5 Piston Downfl ow ASY 1
5 V3174 WS1 Regenerant Piston 1
6 V3135 O-ring 228 1
7 V3180 O-ring 337 1
8
V3358 O-ring 219 (Distributor Tube Opening 33.5 mm (1.32")
1
V3357 O-ring 218 (Distributor Tube Opening 32mm)
Not Shown
V3020 WS1.25 Body ASY Downfl ow
(Distributor Tube Opening 35.5 mm (1.32")
1
V3020-01 WS1.25 Mixing Valve Body Downfl ow ASY
(Distributor Tube Opening 33.5 mm (1.32")
V3020-02 WS1.25 Body ASY Downfl ow
(Distributor Tube Opening 32mm)
V3020-03 WS1.25 Mixing Valve Body Downfl ow ASY
(Distributor Tube Opening 32mm)
Note: The regenerant piston is not used in backwash only applications.
