Clack WS1CI User Manual

WS1CI & WS1.25CI Manual Page 39

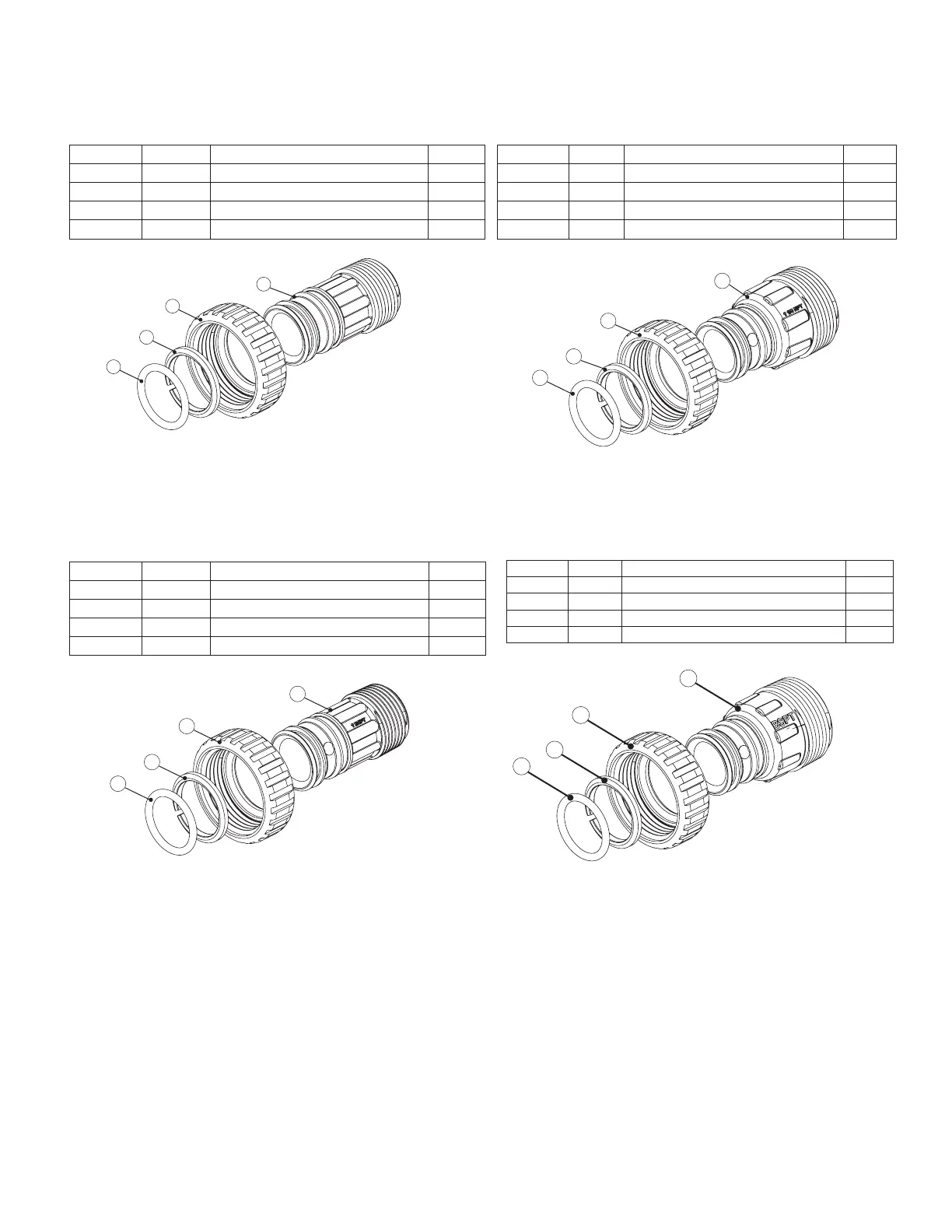

Installation Fitting Assemblies
1 NPT
1
3
2
4
3
2
1
4
3
2
1
4
Order No: V3007-04
Description: WS1 Fitting 1” Plastic Male NPT Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3164 WS1 Fitting 1" Plastic Male NPT 2
Order No: V3007-05
Description: WS1 Fitting 1-¼” Plastic Male NPT Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1-1/4” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3317 WS1 Fitting 1-¼" Plastic Male NPT 2
Order No: V3007-06
Description: WS1 Fitting 1” Plastic Male BSPT Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3316 WS1 Fitting 1" Plastic Male BSPT 2
Order No. V3007-08
Description: WS1 Fitting 1-1/4” Plastic Male BSPT Assembly
Drawing No. Order No. Description Quantity
1 V3151 WS1 Nut 1” Quick Connect 2
2 V3150 WS1 Split Ring 2
3 V3105 O-Ring 215 2
4 V3361 WS1 Fitting 1-1/4" Plastic Male BSPT 2
2
1
4
3
