Clarion NX502E User Manual

English
42
NX502E
C
18
16
14
12
10
8
6
4
2
17
15
13
11
9
7
5
3
1
A
1
3
5
7
2
4
6
8
B
1
3
5
7
2
4
6
8
d

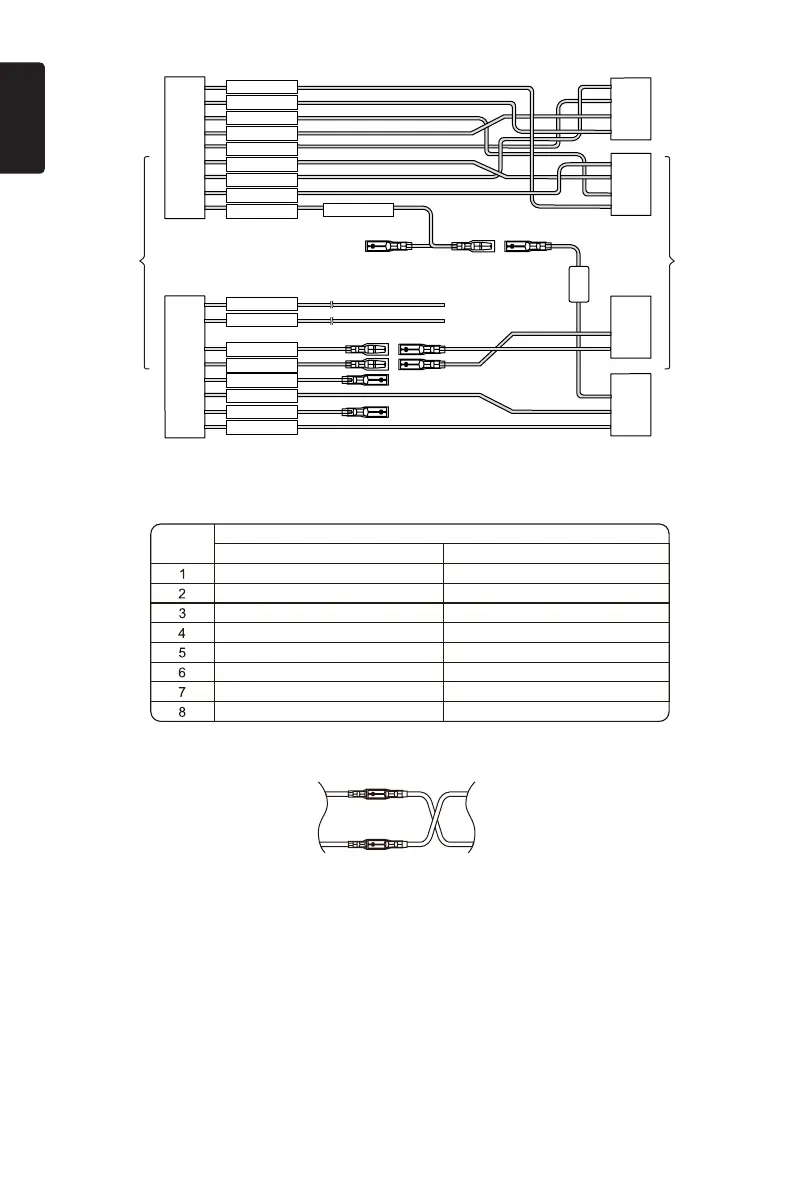

VW, Audi
Rear right (+) / Purple
Rear right (-) / Purple with black stripe
Front right (+) / Gray
Battery 12V(+) / Yellow
Front right (-) / Gray with black stripe
Auto Antenna / Blue
Front left (+) / White
Illumination / Orange with white stripe Front left (-) / White with black stripe
ACC+ / Red Rear left (+) / Green
Ground / Black Rear left (-) / Green with black stripe
YellowYellow
Red Red
Function
ConnectorA ConnectorB
Location
Rear right -
Front right -
Front left +
Rear left +
AUTO ANT
ACC +
Parking
Reverse
Ground
Rear right +
Front right +
Front left -
Rear left -
Illumination
AMP Remote
Phone Mute
Battery +
Fuse 15A

Clarion NX502E Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3, WMA
Video formats supported	MPEG4
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
USB ports quantity	1
Headphone connectivity	3.5mm
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM, MW
Preset stations quantity	22
Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
Compatible memory cards	SD
Menu languages	CZE, DEU, DUT, ENG, ESP, FRE, GRE, ITA, POL, SWE
Key illumination color	Multi
