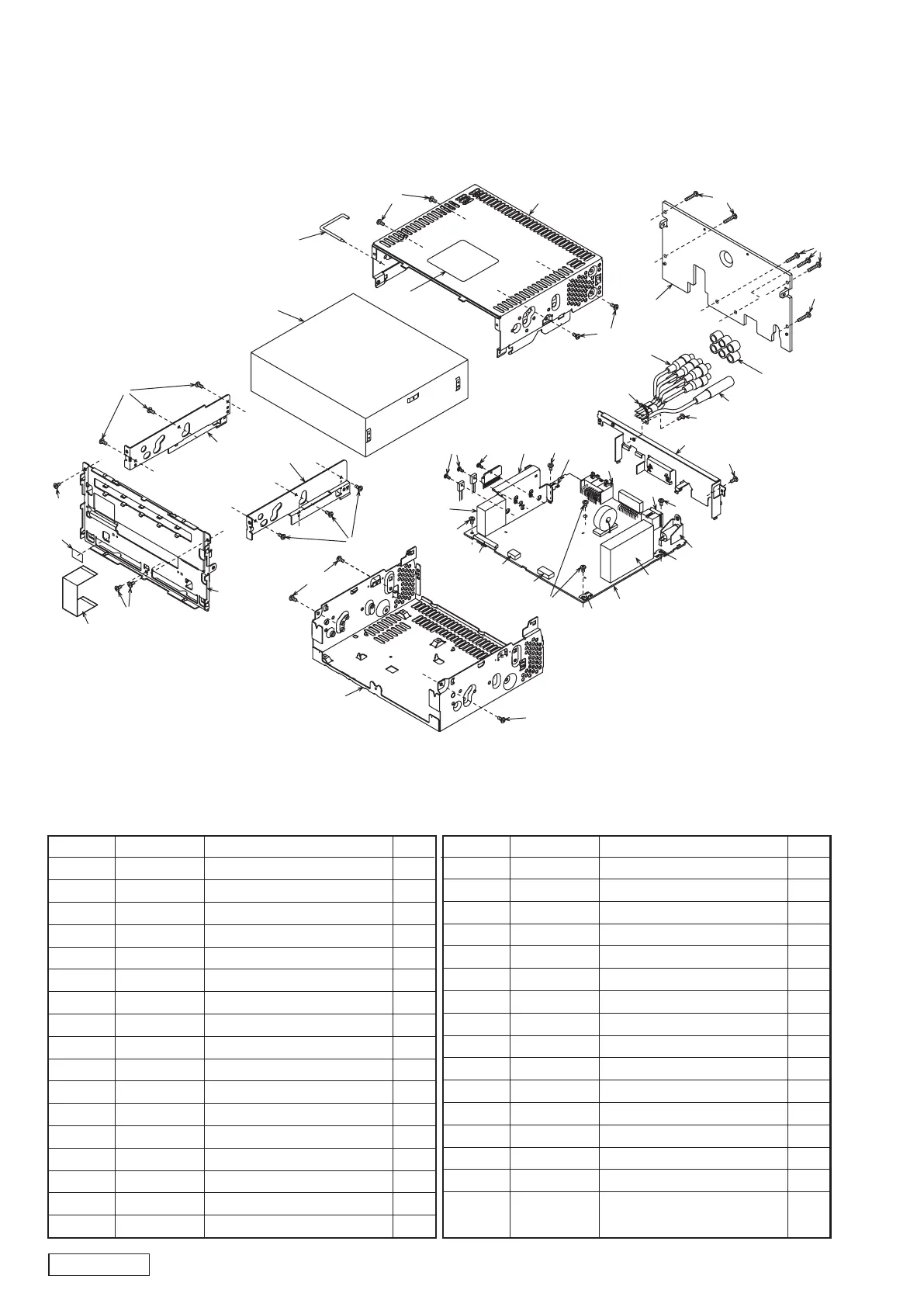

Main section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 311-1896-10 LOWER CASE 1
2 310-1799-10 UPPER CASE 1
3 309-0813-00 FRONT-BRKT 1
4 331-4036-00 MECH-BRKT(L) 1
5 331-4037-00 MECH-BRKT(R) 1
6 313-1941-00 HEAT SINK 1
7 929-0371-81 CD-CHANG-MODULE 1
8 816-4023-50 FLAT WIRE 1
9 345-3799-20 RUBBER PART 6
10 286-6687-00 SETPLATE 1
11 341-1823-00 SHAFT-S 1
12 347-7229-00 SPACER FILM 1
13 076-0648-22 PLUG(22P) 1
14 076-0648-10 PLUG(10P) 1
15 ----------- MAIN PWB 1
16 073-0762-90 TERMINAL 3
17 880-2150A CCC-TUNER 1
18 092-4000-51 ANT-RECEPT 1
19 074-1214-00 OUTLET SOCKET 1
20 074-1194-00 OUTLET SOCKET(Ce-NET) 1
21 331-4035-00 IC HOLDER 1
22 074-1237-69 OUTLET SOCKET(19P) 1
23 307-0714-00 REAR PLATE 1
24 855-5535-50 RCA PIN CORD 1
25 716-0878-50 IT SCREW(M2.6 x 5) 5
26 714-3008-85 MACHINE SCREW(M3 x 8) 3
27 714-2606-8B MACHINE SCREW(M2.6 x 6) 11
28 780-3006-51 SCREW(M3 x 6) 1
29 714-2610-8B MACHINE SCREW(M2.6 x 10) 6
30 716-3552-00 SCREW(M2.3 x 2.5) 6
31 060-6028-00 DC-DC CONVERTER 1
32 335-0833-01 LEAD HOLDER 1
33 855-0569-52 MINI JACK CORD 1
