Clarion WXZ468RMP - Lower Unit Assembly Parts

- M8-929-0371-80

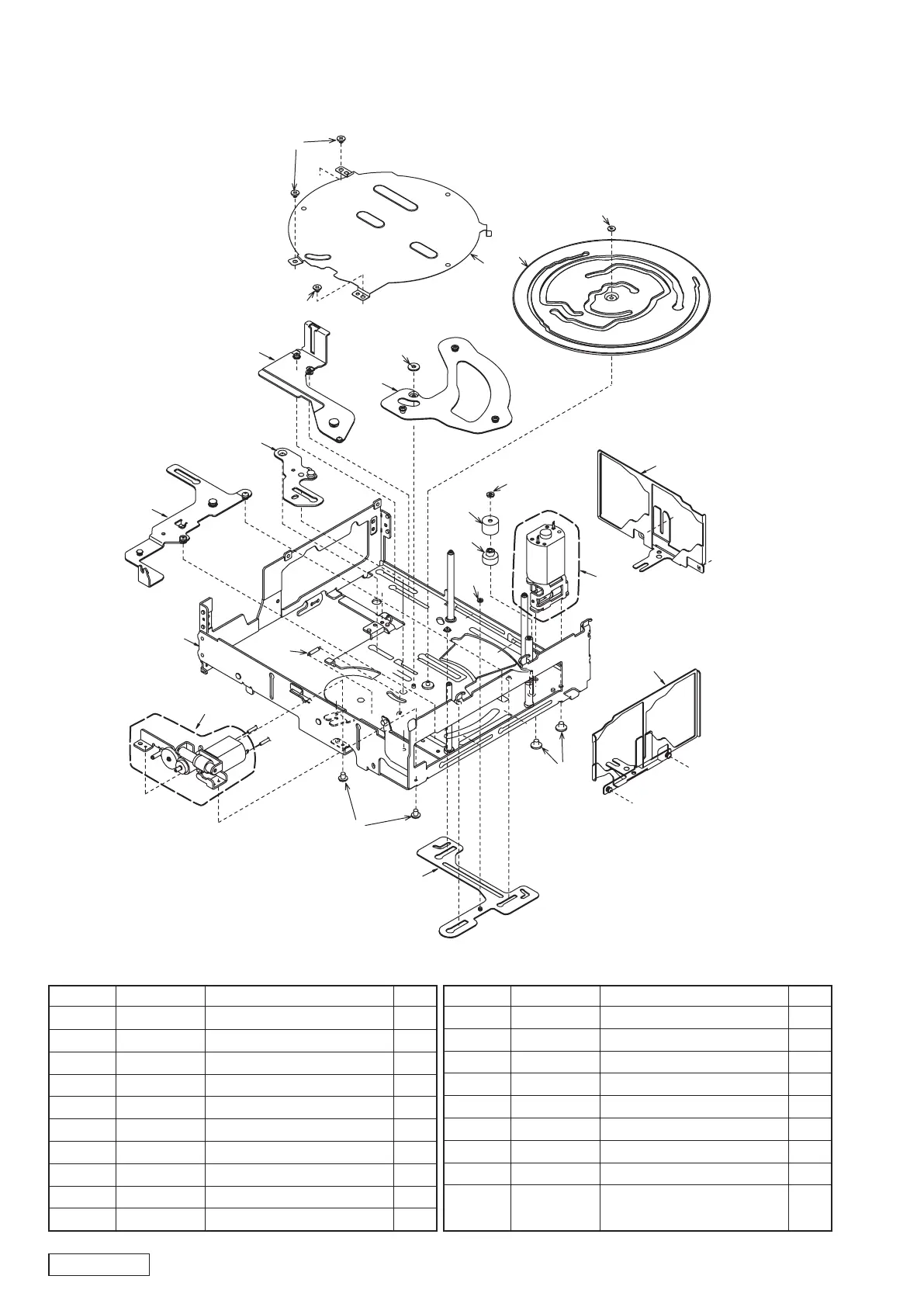

Lower unit assy section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 966-1757-21 LOWER-C-ASSY 1
2 966-0658-21 DH-SP-ASSY A 1
3 966-1758-20 DS-SP-ASSY A 1
4 966-0660-22 DH-SP-ASSY S 1
5 966-0661-22 DH-SP-ASSY R 1
6 966-0677-23 D-SHT PL-B-ASSY 1
7 966-0659-21 DH-SP-ASSY B 1
8 966-1759-00 DS-SP-ASSY B 1
9 HBS-546-100 M-MTR SUB ASSY 1
10 HBS-568-100 UD-MOTOR-ASSY 1
11 620-1771-22 CAM GEAR 1
12 620-1624-24 GEAR COVER 1
13 621-0732-21 M-GEAR B 1
14 621-0733-20 M-GEAR C 1
15 716-1850-01 SCREW(M2.0x2.0) 5
16 716-3451-01 SCREW(M1.7x2.5) 2
17 746-0761-00 WASHER 2
18 746-0768-00 WASHER 2
19 750-6756-00 SW-L-SPRING 1
