Clarion WXZ468RMP Service Manual

- M6-929-0371-80
Function of Mechanism
[DISC HOLDER]
Six holders.
(Related motor:UP/DW-Motor)
[DRIVE UNIT]
Chukking of a play disc.
(Related Motor:Mode motor)
[LOADING ROLLER]
Disk is stored/ejected by rotation.
(Related Motor:Laoding motor)
[SHUTTER]
Shutter at disc insertion.
(Related Motor:Mode Motor)
Function of Motors
[MOT1 LOADING MOTOR]
Rotation of loading roller.
(Related Sensor:PT1,2,3,Q1)
[MOT2 MODE MOTOR]
Rotation of mode plate.
Chukking disc.
Opening/closing holder.
Movement of loading/ejecting roller.
Opening/closing shutter.
(Related Sensor:S1,2,3)
[MOT3 UP/DW-MOTOR]
Going up and down of disc holder.
Selection of disc holder.
(Related Sensor:S4,IC10)
OPERATION
Function of Switches
[S1,2,3]
Detect a home position of mode plate.
Detect mode plate position by combination of on and
off.
[S4]
Detection of initial position of holder.
Initial position:S4-ON,IC10-bright.
[S5]
Opening/closing detection of shutter.
OFF:Close, ON:Open
Function of Photo sensors
[PT1]
Detection of start loading and passing of disc.
Bright:no DISC, Dark:DISC
[PT2]
Detection of finish eject and passing of disc.
Bright:no DISC, Dark:DISC
[PT3]
Detection of store and passing of disc.
Bright:no DISC, Dark:DISC
[Q1]
Detection of passing of disc.
Bright:no DISC, Dark:DISC
[IC10]
Detection of holder position

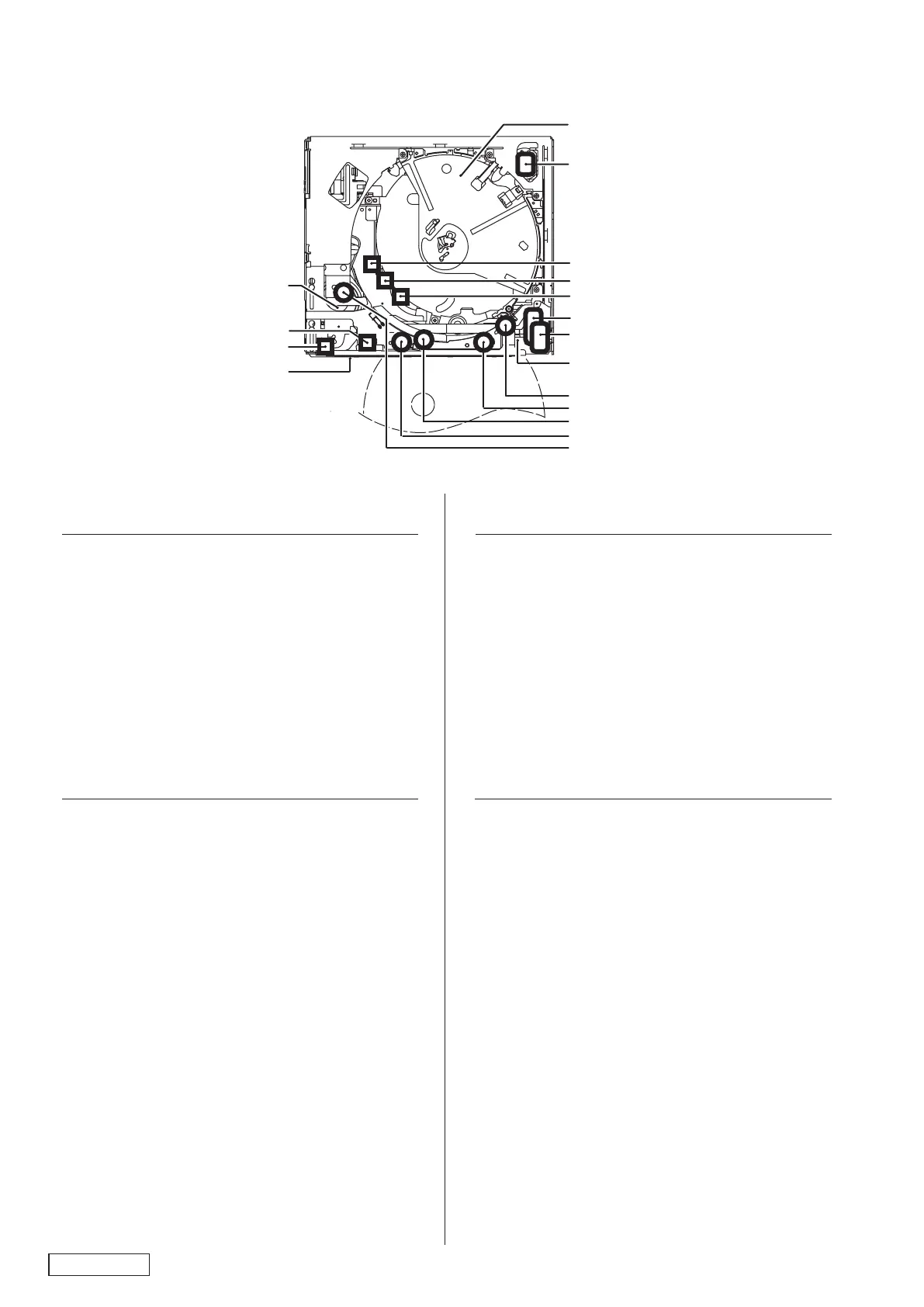

MOT2 (Mode Motor)
Discholder
MOT1 (Loading Motor)
Loading Roller
PT3 of SENSOR-L-FPC
MOT3 (UP/DW-Motor)
S3 of CD-PWB (Mode Plate)
S2 of CD-PWB (Mode Plate)
S1 of CD-PWB (Mode Plate)
S5 of SENSOR-U-FPC (Sutter)
Drive Unit
Shutter
S4 of CD-PWB (Holder)
PT2 of SENSOR-L-FPC
PT1 of SENSOR-L-FPC
IC10 of CD PWB
Q1 of CD PWB
