Clarion WXZ468RMP Service Manual

- 13 -
WXZ468RMP

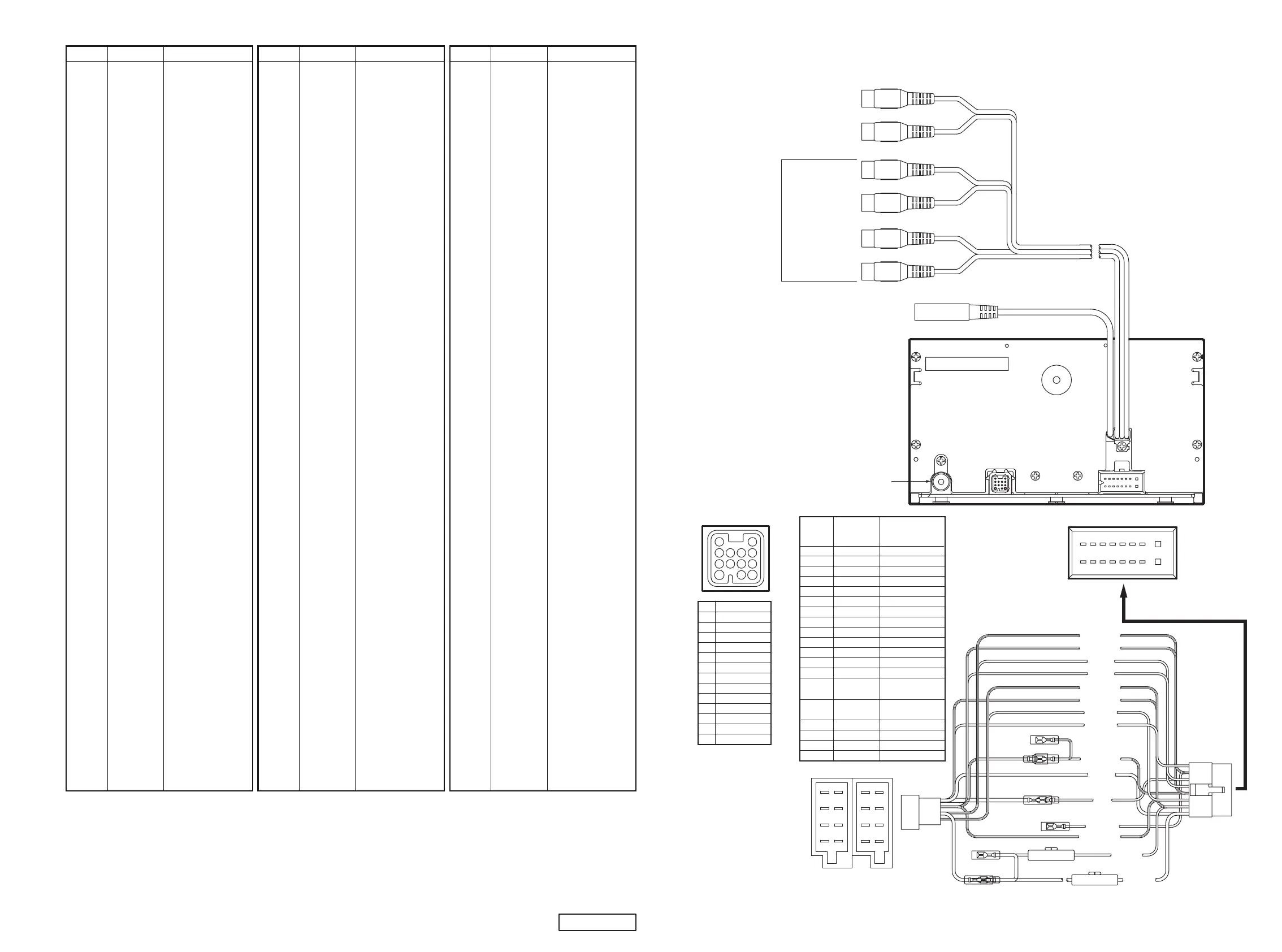

CONNECTOR LAYOUT
M5 x 6 mm MA X
FRONT / RIGHT
FRONT / LEFT
REAR / LEFT
REAR / RIGHT
AUX-IN / LEFT
AUX-IN / RIGHT
GRAY
1
2
3
4
5
6
7
8
9
10
11
12
13
No. Description
1 GND
2 BACK UP
3 L-CH(+)
4 N.C.
5 N.C.
6 BUS(+)
7 R-CH(+)
8 R-CH(-)
9 SYS-ACC
10 BUS(-)
11 L-CH(-)
12 ILLUMI
13 N.C.
J601 (CeNET)
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
J601
RADIO ANT
RCA PIN CORD
855-5535-50
LINE-OUT
MINI JACK CORD
855-0569-52
CAR
WIRED
REMOCON
CL 0728
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
J101
Pin No.
(J101 -
ISO)
Color Description
1 - B7 GRN SP R/L(+)
2 - B8 GRN/BLK SP R/L(-)
3 - B6 WHT/BLK SP F/L(-)
4 BRN PHONE INT
5 - B5 WHT SP F/L(+)
6 - A7 RED ACC
7 - B3 GRY SP F/R(+)
8- N.C
9 - B4 GRY/BLK SP F/R(-)
10 - A5 BLU/WHT REMOTE
11 - B1 PUR SP R/R(+)
12 - A6 ORG/WHT ILLUMI
13 - B2 PUR/BLK SP R/R(-)
14 YEL BACK UP(BUS)
(3A FUSE)
15 - A4 YEL BACK UP
(15A FUSE)
16 - A8 BLK GND
EXTENSION LEAD
854-6418-50
B5
B3 B4
B1 B2
A2A1
A4A3
A5 A6
A7
A8
B6
B7 B8
ISO CONNECTOR
15A
BLACK
RED
ORG / WHT
GRY / BLK
BLU / WHT
GRAY
WHITE
BROWN
WHT / BLK
GRN / BLK
GREEN
PURPLE
PUR / BLK
FUSE(15A)
120-0150-00
YELLOW
REMOTE
PHONE
MUTE
ACC
BACK UP
YELLOW
3A
FUSE(3A)
120-0030-00
A1 - N.C
A2 - N.C
A3 - N.C
REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION REF No. PART No. DESCRIPTION
R112 119-1021-15 1/10W 1k ohm
R113 119-1021-15 1/10W 1k ohm
R114 119-1021-15 1/10W 1k ohm
R115 119-1021-15 1/10W 1k ohm
R201 119-6831-15 1/10W 68k ohm
R202 119-1041-15 1/10W 100k ohm
R203 119-1031-15 1/10W 10k ohm
R206 119-2211-15 1/10W 220 ohm
R208 116-5611-15 1/4W 560 ohm
R209 119-4731-15 1/10W 47k ohm
R210 116-2721-15 1/4W 2.7k ohm
R211 116-2721-15 1/4W 2.7k ohm
R212 119-4721-15 1/10W 4.7k ohm
R213 119-4721-15 1/10W 4.7k ohm
R214 119-4721-15 1/10W 4.7k ohm
R215 116-1031-15 1/4W 10k ohm
R216 119-1021-15 1/10W 1k ohm
R217 119-2231-15 1/10W 22k ohm
R218 119-4731-15 1/10W 47k ohm
R219 116-1831-15 1/4W 18k ohm
R220 116-1521-15 1/4W 1.5k ohm
R230 119-1801-15 1/10W 18 ohm
R231 119-1041-15 1/10W 100k ohm
R304 119-4721-15 1/10W 4.7k ohm
R305 119-4721-15 1/10W 4.7k ohm
R312 119-4721-15 1/10W 4.7k ohm
R313 119-4721-15 1/10W 4.7k ohm
R314 119-0000-05 1/10W 0 ohm JW
R315 119-1521-15 1/10W 1.5k ohm
R333 119-8211-15 1/10W 820 ohm
R334 119-8211-15 1/10W 820 ohm
R335 119-8211-15 1/10W 820 ohm
R336 119-2211-15 1/10W 220 ohm
R337 119-0000-05 1/10W 0 ohm JW
R340 119-3311-15 1/10W 330 ohm
R341 119-3311-15 1/10W 330 ohm
R342 119-3311-15 1/10W 330 ohm
R343 119-3311-15 1/10W 330 ohm
R401 119-1541-15 1/10W 150k ohm
R402 119-1531-15 1/10W 15k ohm
R403 119-1041-15 1/10W 100k ohm
R404 119-1541-15 1/10W 150k ohm
R410 119-1041-15 1/10W 100k ohm
R411 119-1021-15 1/10W 1k ohm
R412 119-1021-15 1/10W 1k ohm
R413 119-1041-15 1/10W 100k ohm
R414 032-0140-00 1/10W 56k ohm F
R415 032-0140-00 1/10W 56k ohm F
R416 032-0140-00 1/10W 56k ohm F
R417 032-0140-00 1/10W 56k ohm F
R418 032-0140-54 1/10W 22k ohm F
R419 032-0140-54 1/10W 22k ohm F
R420 032-0140-54 1/10W 22k ohm F
R421 032-0140-54 1/10W 22k ohm F
R427 119-1011-15 1/10W 100 ohm
R429 119-1011-15 1/10W 100 ohm
R431 119-1031-15 1/10W 10k ohm
R432 119-1031-15 1/10W 10k ohm
R447 119-2211-15 1/10W 220 ohm
R448 119-2211-15 1/10W 220 ohm
R449 119-2211-15 1/10W 220 ohm
R450 119-2211-15 1/10W 220 ohm
R453 119-2231-15 1/10W 22k ohm
R454 119-2231-15 1/10W 22k ohm
R455 119-2231-15 1/10W 22k ohm
R456 119-2231-15 1/10W 22k ohm
R459 119-3311-15 1/10W 330 ohm
R460 119-3311-15 1/10W 330 ohm
R461 119-3311-15 1/10W 330 ohm
R462 119-3311-15 1/10W 330 ohm
R464 119-1021-15 1/10W 1k ohm
R465 119-1021-15 1/10W 1k ohm
R523 119-3311-15 1/10W 330 ohm
R536 119-1021-15 1/10W 1k ohm
R537 119-8221-15 1/10W 8.2k ohm
R538 119-3321-15 1/10W 3.3k ohm
R540 119-2231-15 1/10W 22k ohm
R551 032-0140-00 1/10W 56k ohm F
R552 032-0140-00 1/10W 56k ohm F
R553 032-0140-00 1/10W 56k ohm F
R554 032-0140-00 1/10W 56k ohm F
R555 032-0140-51 1/10W 15k ohm F
R556 032-0140-51 1/10W 15k ohm F
R557 032-0140-51 1/10W 15k ohm F
R558 032-0140-51 1/10W 15k ohm F
R559 119-2211-15 1/10W 220 ohm
R560 119-2431-15 1/10W 24k ohm
R561 119-2211-15 1/10W 220 ohm
R562 119-2431-15 1/10W 24k ohm
R564 119-3931-15 1/10W 39k ohm
R566 119-3931-15 1/10W 39k ohm
R567 119-1041-15 1/10W 100k ohm
R568 119-1041-15 1/10W 100k ohm
R569 119-1021-15 1/10W 1k ohm
R570 119-1021-15 1/10W 1k ohm
R571 119-1021-15 1/10W 1k ohm
R572 119-1021-15 1/10W 1k ohm
R573 119-3921-15 1/10W 3.9k ohm
R574 119-3921-15 1/10W 3.9k ohm
R575 119-1021-15 1/10W 1k ohm
R576 119-1021-15 1/10W 1k ohm
R577 119-3921-15 1/10W 3.9k ohm
R578 119-3921-15 1/10W 3.9k ohm
R579 119-1041-15 1/10W 100k ohm
R580 119-1041-15 1/10W 100k ohm
R581 119-8221-15 1/10W 8.2k ohm
R582 119-8221-15 1/10W 8.2k ohm
R583 119-8221-15 1/10W 8.2k ohm
R584 119-8221-15 1/10W 8.2k ohm
R585 119-8221-15 1/10W 8.2k ohm
R586 119-8221-15 1/10W 8.2k ohm
R601 119-0000-05 1/10W 0 ohm JW
R602 119-0000-05 1/10W 0 ohm JW
R603 116-6801-15 1/4W 68 ohm
R604 119-3321-15 1/10W 3.3k ohm
R606 119-1031-15 1/10W 10k ohm
R607 119-1021-15 1/10W 1k ohm
R608 119-4731-15 1/10W 47k ohm
R609 119-4731-15 1/10W 47k ohm
R610 119-4721-15 1/10W 4.7k ohm
R611 119-1031-15 1/10W 10k ohm
R612 116-1521-15 1/4W 1.5k ohm
R613 119-4731-15 1/10W 47k ohm
R614 119-4721-15 1/10W 4.7k ohm
R615 119-1031-15 1/10W 10k ohm
R622 116-1811-15 1/4W 180 ohm
R623 116-1811-15 1/4W 180 ohm
R624 119-5621-15 1/10W 5.6k ohm
R625 119-1031-15 1/10W 10k ohm
R626 116-1811-15 1/4W 180 ohm
R627 119-2231-15 1/10W 22k ohm
R628 119-1031-15 1/10W 10k ohm
R629 119-4721-15 1/10W 4.7k ohm
R630 119-4721-15 1/10W 4.7k ohm
R631 119-1031-15 1/10W 10k ohm
R632 119-1031-15 1/10W 10k ohm
R633 119-1031-15 1/10W 10k ohm
R634 119-1031-15 1/10W 10k ohm
R635 119-1031-15 1/10W 10k ohm
R636 119-1031-15 1/10W 10k ohm
R637 119-1031-15 1/10W 10k ohm
R638 119-1011-15 1/10W 100 ohm
R639 119-1031-15 1/10W 10k ohm
R640 119-1031-15 1/10W 10k ohm
R641 119-1031-15 1/10W 10k ohm
R642 119-1031-15 1/10W 10k ohm
R643 119-1031-15 1/10W 10k ohm
R644 119-1031-15 1/10W 10k ohm
R645 119-2241-15 1/10W 220k ohm
R646 119-4731-15 1/10W 47k ohm
R647 119-1531-15 1/10W 15k ohm
R648 119-1031-15 1/10W 10k ohm
R649 119-4721-15 1/10W 4.7k ohm
R652 119-4721-15 1/10W 4.7k ohm
R653 119-4731-15 1/10W 47k ohm
R654 119-1021-15 1/10W 1k ohm
R655 119-1031-15 1/10W 10k ohm
R656 119-1041-15 1/10W 100k ohm
R660 119-1031-15 1/10W 10k ohm
R661 119-1031-15 1/10W 10k ohm
R662 119-1041-15 1/10W 100k ohm
R663 119-0000-05 1/10W 0 ohm JW
R664 119-3311-15 1/10W 330 ohm
R665 119-3311-15 1/10W 330 ohm
R666 119-3311-15 1/10W 330 ohm
R667 119-3311-15 1/10W 330 ohm
R668 119-3311-15 1/10W 330 ohm
R671 119-1041-15 1/10W 100k ohm
R672 119-1041-15 1/10W 100k ohm
R674 119-0000-05 1/10W 0 ohm JW
R675 119-1221-15 1/10W 1.2k ohm
R680 119-3311-15 1/10W 330 ohm
R681 119-3311-15 1/10W 330 ohm
R682 119-3311-15 1/10W 330 ohm
R683 119-3311-15 1/10W 330 ohm
R684 119-3311-15 1/10W 330 ohm
R685 119-3311-15 1/10W 330 ohm
R686 119-3311-15 1/10W 330 ohm
R687 119-3311-15 1/10W 330 ohm
R697 119-0000-05 1/10W 0 ohm JW
R698 119-0000-05 1/10W 0 ohm JW
SUP1 060-0122-91 DSP-141N-S00B
TM201 073-0762-90 TERMINAL
TM203 073-0762-90 TERMINAL
TM204 073-0762-90 TERMINAL
X301 061-3536-90 11.2896MH
X601 060-1541-90 3.14MHz
X602 061-1056-00 32.768kHz
PWB 039-2796-01 PWB(WITHOUT
COMPONENT)

Clarion WXZ468RMP Specifications

General

Brand	Clarion
Model	WXZ468RMP
Category	Car Receiver
Language	English
