- M10-929-0371-80

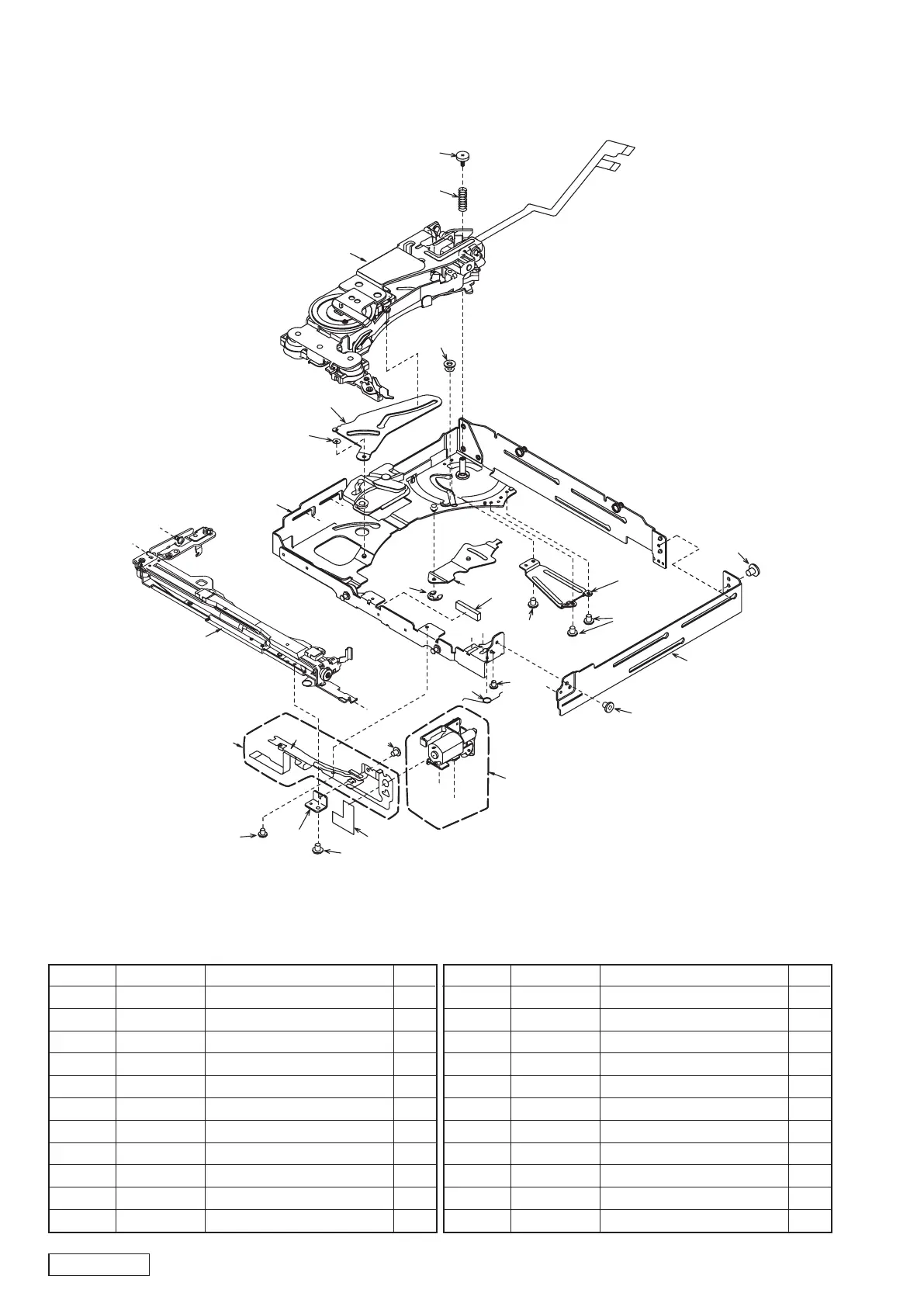

N-Drive-CH unit section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
* Do not reuse the following parts.
(No.17,18,19,20)
1 HBS-565-100 N-DRIVE UNIT 1
2 HBS-567-100 LOADING-U-ASSY 1
3 HBS-556-100 LO-MOTOR-S-ASSY 1
4 HBS-552-100 L-SENSOR-S-ASSY 1
4-1 ----------- SENSOR-L-FPC 1
5 966-0676-20 D-SHT LK-A-ASSY 1
6 966-1755-00 DRIVE-CH A ASSY 1
7 620-1681-21 DRIVE CHASSIS B 1
8 620-1672-21 DR-SUPPORT-PL 1
9 620-1680-20 D-SHIFT COVER 1
10 622-1743-20 D-SHIFT ROLLER B 1
11 716-3450-00 SCREW(M1.7x2.0) 6
12 716-3459-01 SCREW(M1.7x2.0) 1
13 750-6761-20 DRIVE SPRING A 1
14 345-5868-00 RUBBER PART 1
15 620-1651-20 S-PWB-PLATE 1
16 750-6754-20 LO-ES-SPRING B 1
17 345-5424-01 SEN-FPC GUIDE 1
18 716-1859-01 SCREW(M1.7x2.0) 2
19 744-0039-00 E-RING 1
20 746-0870-00 WASHER 1
21 716-3538-00 SCREW(M1.7x2.0) 1
20
10
11
21
16
15
5
2
6
19
1
11
11
7
9
11
11
17
18
3
8
12
13
4
4-1
A4
A3
to A3
to A4
to B1
B1
to A2
to A1
A1
A2
18
*
*
*
*
*
14
