- 15 -
WXZ468RMP

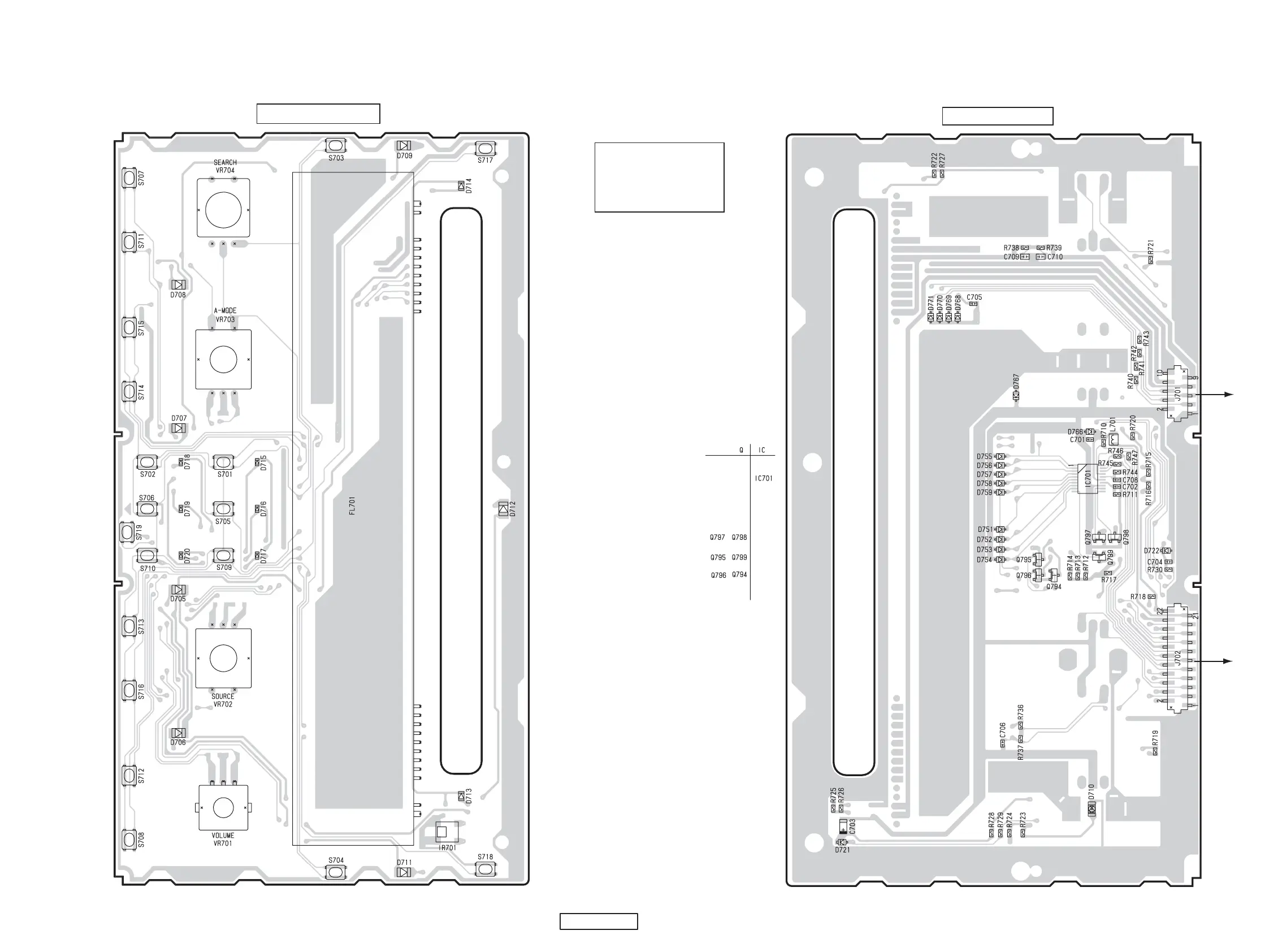

PRINTED WIRING BOARD
Switch PWB(B1) section
COMPONENT SIDE
SOLDER S
IDE
Caution:
COMPONENT SIDE: Parts on the
component side
seen from the
component side are indicated.
SOLDER SIDE: Parts on the solder
side seen from the solder side are
indicated.
To page 16
P601 of Main PWB
To page 16
P602 of Main PWB
14
16
