Clarion WXZ468RMP - Parts Identification; Escutcheon and Main Section Parts

- 9 -
WXZ468RMP
1
2
3
4
5
6
36
34
33
34
31
7
32
16
34
33
7
52
63
12
37
35
37
8
33
35
9
10
11
55
47
46
61
62
45
39
45
44
53
45
45
40
39
49
39
50
39
41
39
50
39
48
51
43
42
40
13
38
x19
14
17
18
22
15
20
54
19
59
60
58
57
21
23
56
35
26
35
30
25
30
28
29
35
45
35
56
27
24
41

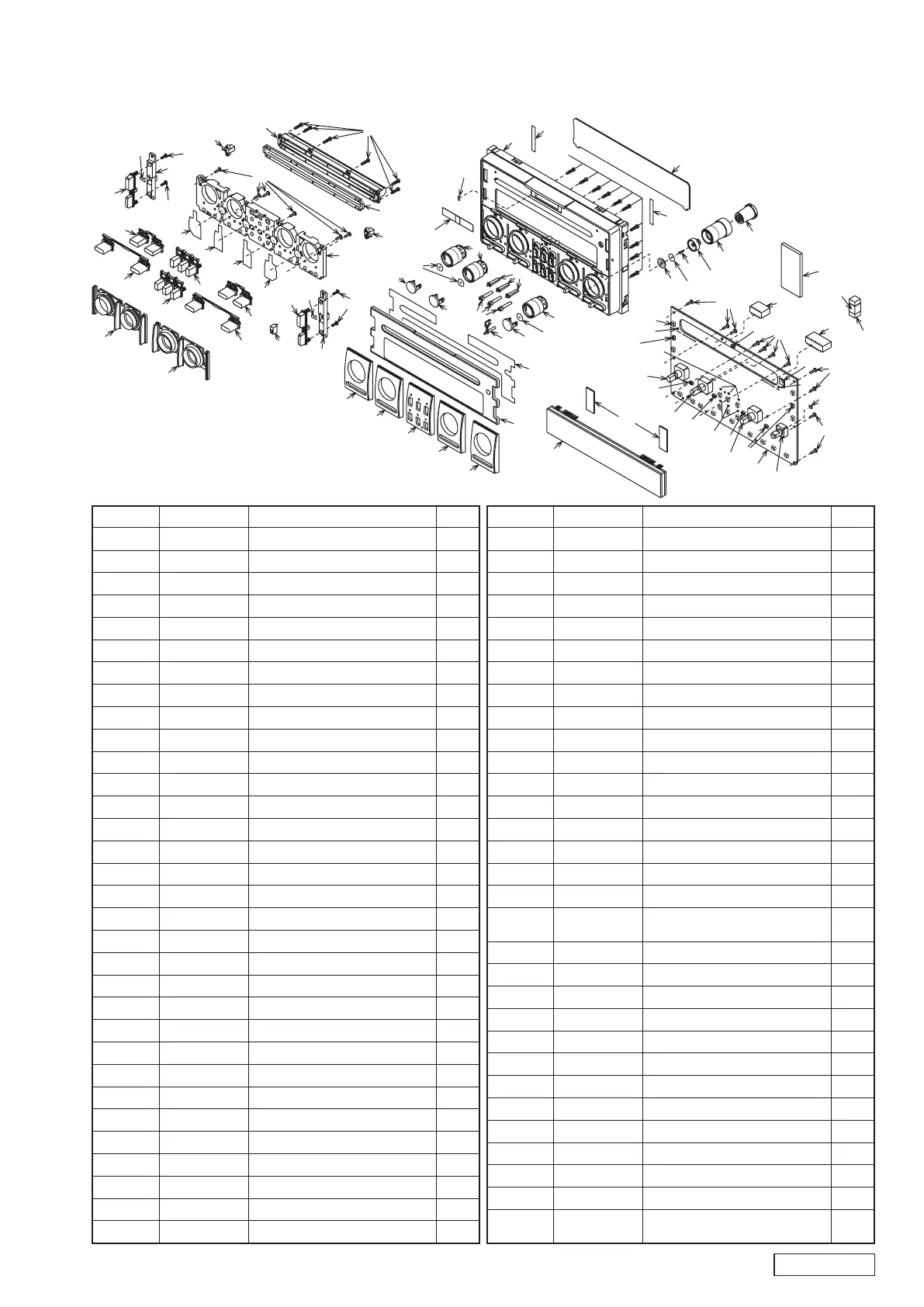

EXPLODED VIEW/PARTS LIST
Escutcheon section
NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1 371-5820-00 FACE PANEL(A) 1
2 371-5821-00 FACE PANEL(B) 1
3 371-5822-00 FACE PANEL(C) 1
4 371-5823-01 FACE PANEL(D) 1
5 371-5824-00 FACE PANEL(E) 1
6 373-1073-02 DIAL-CVR 1
7 380-5635-00 KNOB 3
8 335-7548-00 KNOB-CAP 1
9 335-7573-00 KNOB-RING 1
10 380-5636-00 KNOB (A) 1
11 380-5637-00 KNOB (B) 1
12 370-6176-01 ESCUTCHEON 1
13 335-7547-00 FILTER(VFD) 1
14 335-7549-00 ILLUMI PLATE(L) 1
15 335-7550-00 ILLUMI PLATE(R) 1
16 382-7458-00 BUTTON(RESET) 1
17 382-7451-00 BUTTON(BAD/D-Z) 1
18 382-7452-01 BUTTON(TA/ADJ) 1
19 382-7453-00 BUTTON(1,2,3) 1
20 382-7454-00 BUTTON(TIE/RDM) 1
21 382-7455-00 BUTTON(SCN/RPT) 1
22 382-7459-00 BUTTON(4,5,6) 1
23 382-7456-00 BUTTON(CD/S-A) 1
24 382-7457-00 BUTTON(L/D)OU 1
25 335-7553-00 ILLUMI PLATE(B) 1
26 335-7557-00 ILLUMI PLATE(L) 1
27 335-7556-00 ILLUMI PLATE(R) 1
28 346-0180-00 LEATHER SHEET 1
29 371-5832-01 TRIM PLATE 1
30 335-7551-00 ILLUMI PLATE(CD) 2
31 335-7561-00 ILLIMI-PLATE(A) 3
32 335-7555-00 ILLUMI PLATE(B) 3
33 347-7528-00 DOUBLE FACE 4
34 380-5616-00 KNOB CAP 3
35 716-0872-52 PAD SCREW(M1.7 x 5) 21
36 347-7526-00 DOUBLE FACE 1
37 347-7243-00 DOUBLE FACE 2
38 013-6312-50 SWITCH 19
39 001-7040-91 LED(WHITE) 7
40 001-7043-90 LED(GREEN) 2
41 001-7062-90 LED(RED) 6
42 379-4056-28 VFD 1
43 347-7405-00 SPACER 2
44 060-4017-90 IR-RECIEVER 1
45 716-0778-51 WAVE SCREW(2 x 6) 17
46 074-3010-72 OUTLET SOCKET(22P) 1
47 074-3010-60 OUTLET SOCKET(10P) 1
48 ----------- SWITCH PWB 1
49 016-9901-00 VR W/SHAFT(SEARCH) 1
50 016-9900-94 VR W/SHAFT 2
(A-MODE,SOURCE)
51 016-9900-84 VR W/SHAFT(VOLUME) 1
52 347-7878-00 FILM 1
53 001-7095-90 LED(BLUE) 1
54 335-7554-00 ILLUMI PLATE 1
55 345-8090-00 CUSHION RUBBER 1
56 347-7884-00 FILM(E) 2
57 347-7877-00 FILM(D) 1
58 347-7876-00 FILM(C) 1
59 347-7875-00 FILM(B) 1
60 347-7874-00 FILM(A) 1
61 347-7321-00 E-SHEET 1
62 345-5598-00 CUSHION 1
63 347-6548-00 DOUBLE FACE 1
