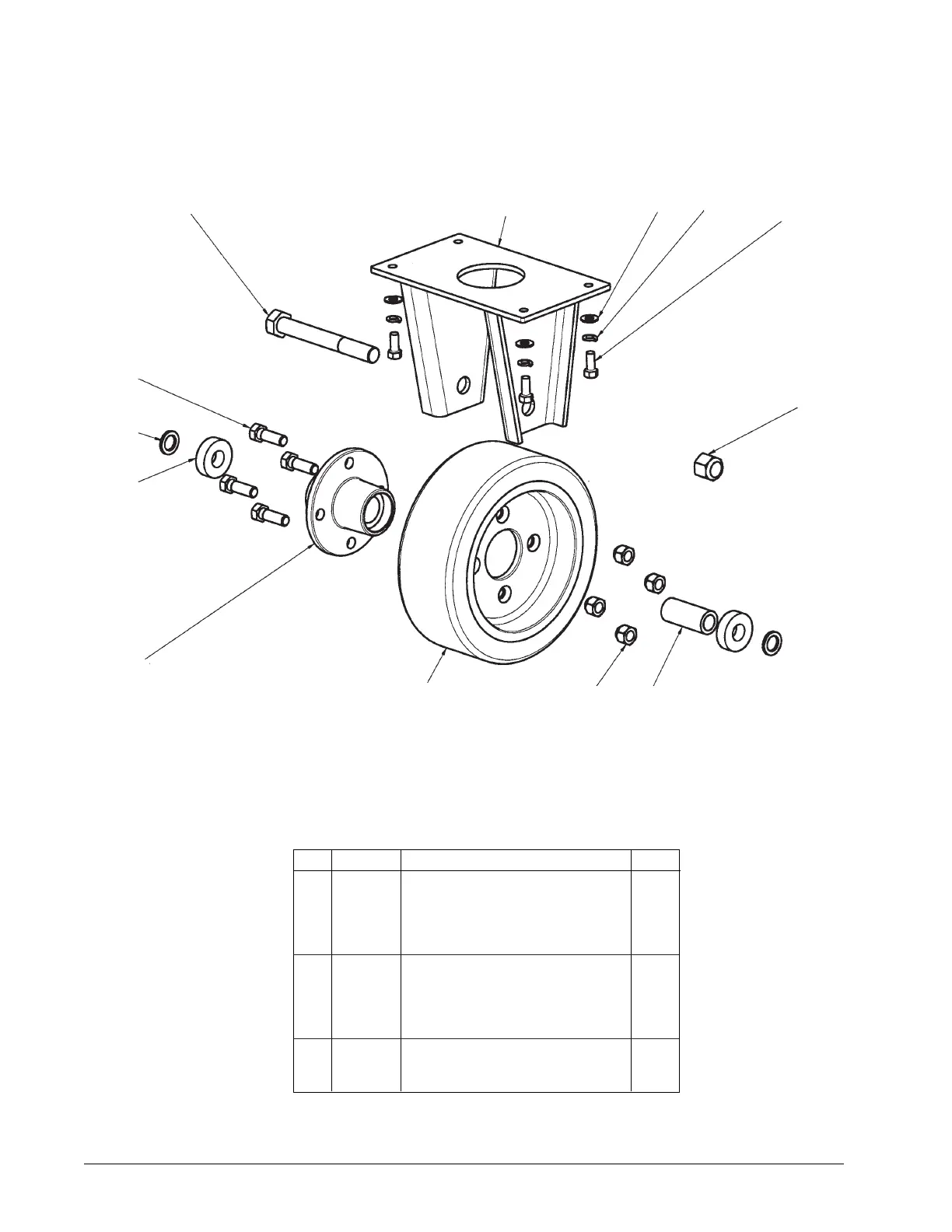

Clarke Focus - Front Wheel Assembly Drawing and Parts List

Page -70- Clarke
®
Operator's Manual -Focus Rider Scrubber
Ref Part No. Description Qty
1 80267A Bolt, 3/4 - 16 Hex Head 1
2 61472A Yoke Weldment, Steering 1
3 980645 Washer, 3/8 Flat 4
4 170883 Washer, Lock 3/8 4
5 85822A Screw, 3/8 -16 x 7/8 Hex Hd. 4
6 80268A Nut, .750 ESNA 1
7 61483A Spacer, Center 1
8 81221A Nut, 1/2 -20 Lug 4
9 61382A Wheel, Anti-Skid 1
10 61474A Hub, Front Wheel 1
11 53437A Bearing 2
12 61484A Spacer, Outside 2
13 85838A Bolt, 1/2 -20 Hex 4
Clarke
®
FOCUS Rider Scrubber
Front Wheel Assembly Drawing and Parts List 6/04
Drawing #10779A
