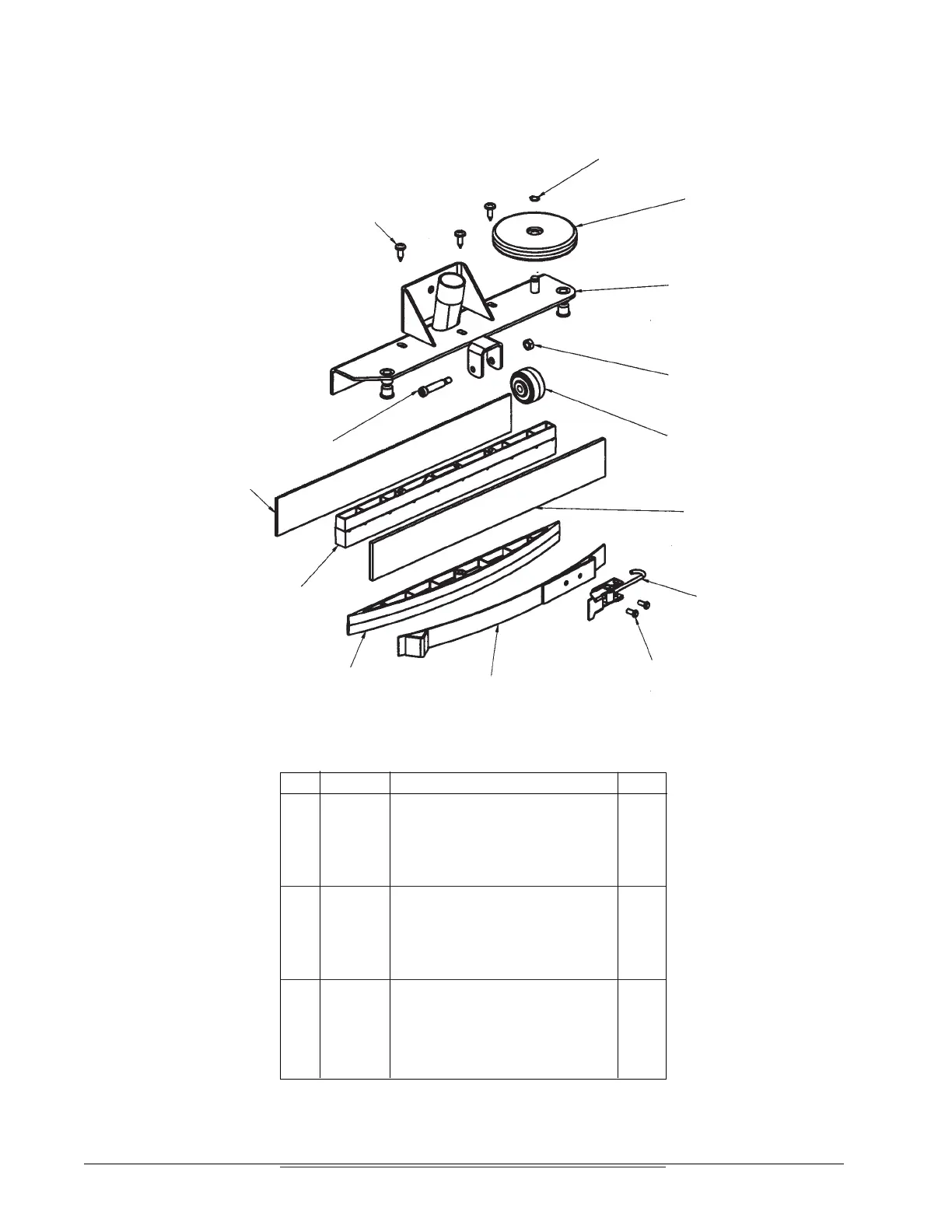

Clarke Focus - Front Squeegee Assembly Drawing

Page -82- Clarke
®
Operator's Manual -Focus Rider Scrubber
Ref Part No. Description Qty
1 80275A Screw, 1/4 - 14 x 3/4 3
2 53185A Ring, Retainer 1
3 30048A Wheel, Guide 1
4 61496A Weldment, Fr. Squeegee Base 1
5 81104A Nut, 1/4 Nylock 1
6 59932A Wheel, Squeegee 1 5/8 1
7 30540A Blade, Outer Gum Rubber 1
8 50835A Latch, Squeegee Clamp 1
9 930086 Rivet, 3/16 x .450 Pan HD 2
10 61495A Strap, Squeegee Weldment 1
11 53444A Wedge, Secondary Squeegee 1
12 53443A Spacer, Secondary Squeegee 1
13 30541A Blade, Squeegee 1
14 80270A Screw, 1/4 - 20 Shoulder 1
NI 30569A Hose, Sec. Squeegee 1
Clarke
®
FOCUS Rider Scrubber
Front Squeegee Assembly Drawing and Parts List 6/04
Drawing # 10694A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
