Clarke Focus - 28 Rotary Brush Head Assembly Drawing and Parts List

Page -76- Clarke
®
Operator's Manual -Focus Rider Scrubber
Clarke
®
FOCUS Rider Scrubber

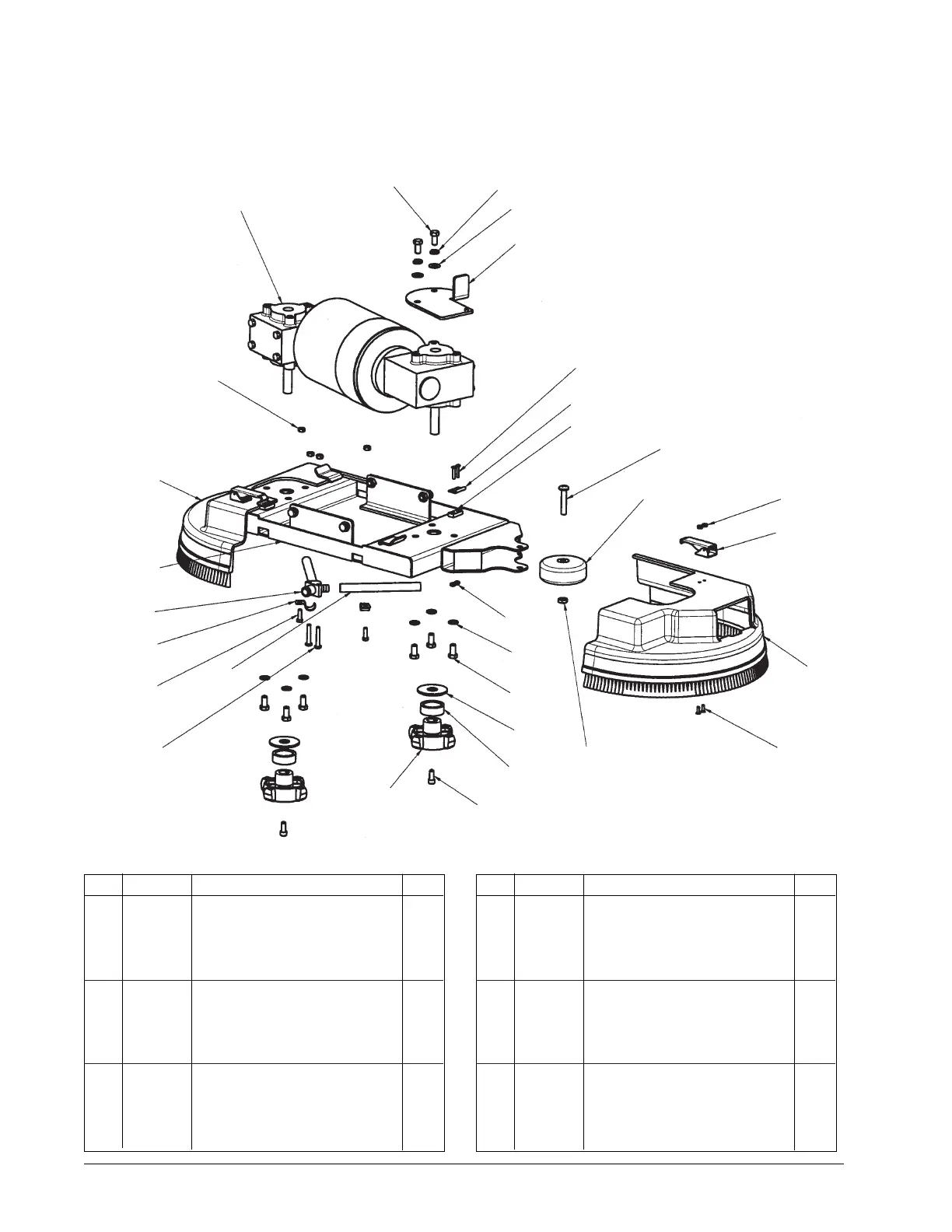

28” Rotary Brush Head Assembly Drawing and Parts List 6/04
Drawing #10697A
Ref Part No. Description Qty
1 40904A Motor, Dual Gear Box 1
2 962244 Bolt, 3/8 - 16 x 3/4 Hex 12
3 170883 Washer, Lock 3/8 2
4 980645 Washer, 3/8 Flat 2
5 61497A Plate, 28” Head Sec. Squ. Lift 1
6 85613A Screw, 8 - 32 x 7/8 PH SS 4
7 55451A Keeper, Latch 2
8 61570A Spacer, Keeper 2
9 80277A Screw, 3/8 - 16 x 2 PH 1
10 59950A Wheel, Guide 3 1/2 1
11 81109A Nut, 8 - 32 ESNA SS 8
12 55721A Latch, Brush Housing 2
13 10703A Housing, 28” Brush Right Main 1
14 84200A Screw, 8 - 32 FHCS 4
15 920148 Nut, 3/8 - 16 Hex Jam 1
Ref Part No. Description Qty
16 980638 Washer, 3/8 Lock 10
17 59856A Washer, Rubber 2
18 61658A Collar, Brush Driver 2
19 962714 Screw, Gimbal Mount 2
20 34400B Gimbal, Motor 2
21 962989 Screw, 1/4 - 20 x 1 1/2 PH 2
22 34705A Hose, Solution 2
23 170915 Screw, 1/4 - 20 x 3/4 Hex HD 2
24 782002 Clamp, Manifold 2
25 38014A Splitter, Solution 1
26 61546A Frame, 28” Brush Motor 1
27 10699A Housing, 28” Brush Left Main 1
28 81104A Nut, 1/4 Nylock 4
NI 30536A Housing, 28” Left Brush 1
NI 30535A Housing, 28” Right Brush 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
11
16
2
17
18
19
20
21
22
23
24
25
26
27
28
NI = Not illustrated
