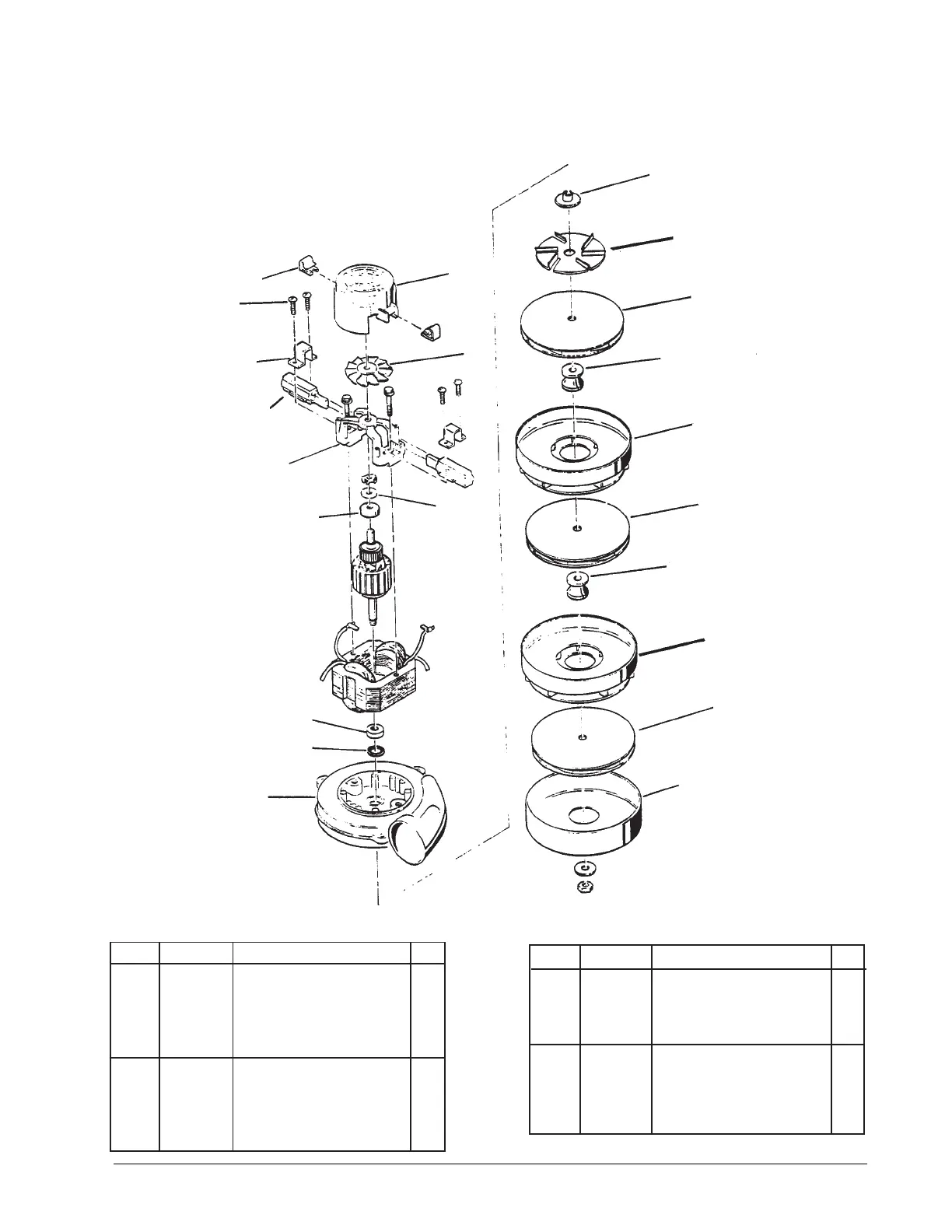

Clarke Focus - Vac Motor Assembly Drawing

Clarke
®
Operator's Manual - Focus Rider Scrubber Page -87-
Ref # Part No. Description Qty
11 59803A Washer - neoprene 1
12 50610A Bracket and shell 1
13 58501A Spacer 1
14 53914A Fan - Rotating 3
15 658201 Spacer 2
16 53908A Fan - Stationary 1
17 658506 Shell 1
18 53995A Fan, Air Seal 1
19 53996A Fan, Stationary 1
Ref # Part No. Description Qty
1 51913A Clip (optional) 2
2 54809A Housing 1
3 53905A Fan 1
4 85303A Screw - 8-32 x
3
/8 4
5 40830A Carbon Brushes 2
6 51914A Clamp 2
7 50618A Bracket 1
8 53100A Disc 1
9 902679 Bearing - Ball 1
10 902648 Bearing - ball, radial 1
1
2
4
6
3
7
8
9
5
10
11
12
17
14
19
15
14
16
15
14
18
13
Clarke
®
FOCUS Rider Scrubber
Vac Motor Assembly #45019A 6/04
