Clarke Focus - Squeegee Lift Assembly Drawing and Parts List

Clarke
®
Operator's Manual - Focus Rider Scrubber Page -71-
Clarke
®
FOCUS Rider Scrubber

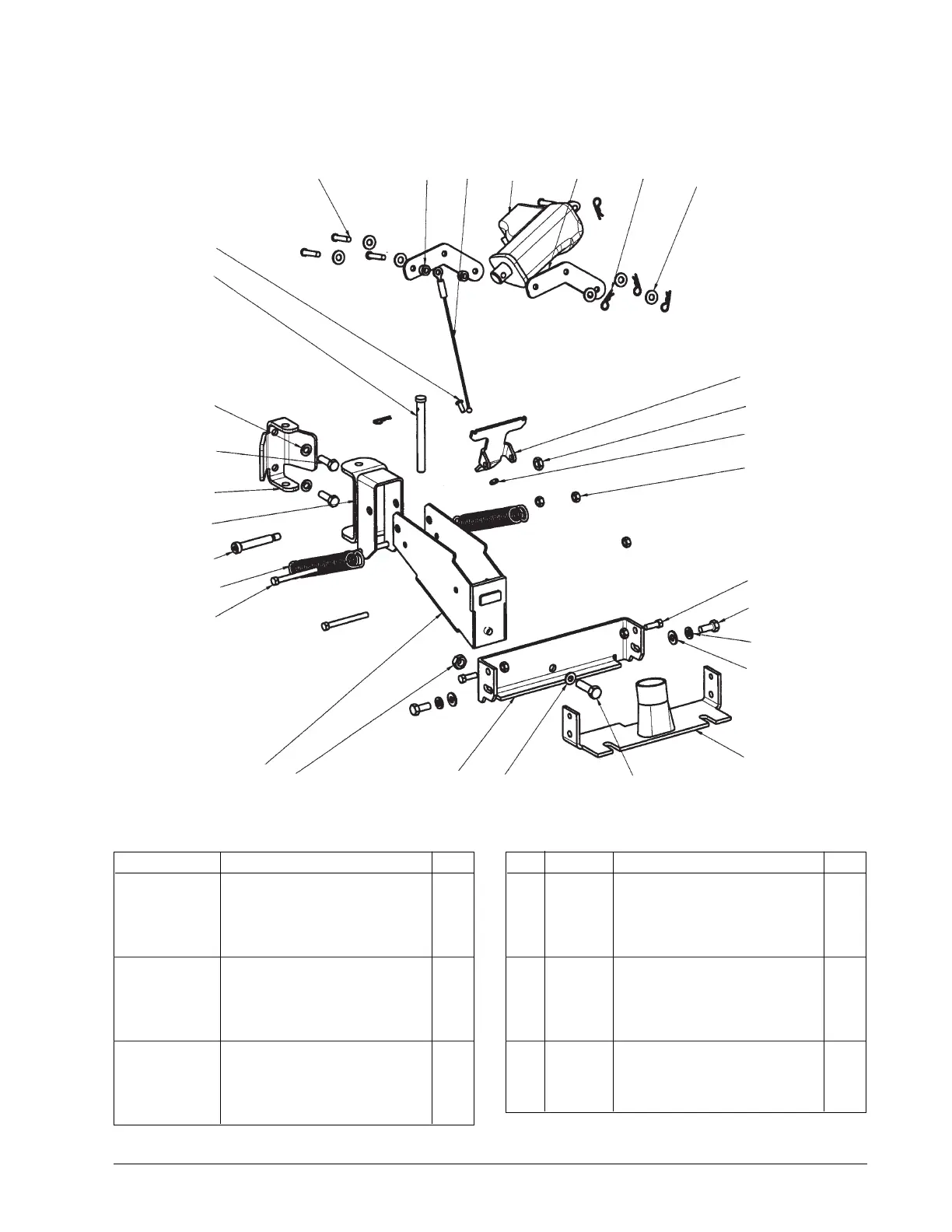

Squeegee Lift Assembly Drawing and Parts List 6/04
Drawing #10787A
Ref Part No. Description Qty
1 66531A Pin, Swing Arm 1
2 962798 Screw, 10-24 x 1/2 PH 1
3 80273A Pin, Clevis 4
4 30542A Spacer 2
5 61549A Cable, Rear Squeegee 1
6 53387A Actuator, Squeegee 1
7 53446A Lever, Pivot, Squeegee 2
8 836711 Pin, Hair 5
9 87026A Washer, 1/4 Flat SS 6
10 61552A Lever, Spring 1
11 920110 Nut, 5/16-18 Hex Lock 1
12 920296 Nut, 10-24 Elastic Stop 1
13 81104A Nut, 1/4 Nylock 5
14 170915 Screw, 1/4 - 20 x 3/4 Hex HD 2
15 962620 Screw, 5/16 - 24 x 3/4 Hex HD 2
Ref Part No. Description Qty
16 980652 Washer, 5/16 Lock 4
17 980651 Washer, 5/16 Flat 2
18 61267A Tube, Bracket Squeegee 1
19 85730A Screw, 3/8 - 16 x 1 1/4 Hex HD 1
20 87031A Washer, 3/8 Flat SS 1
21 60678B Bracket, Squeegee Mount 11
22 81105A Nut, 3/8 - 16 SS ESNA 1
23 61551A Arm, Rear Weldment 1
24 962269 Screw, 1/4 - 20 x 2 1/2 Hex HD 2
25 53423a Spring, Extension 5,19” 2
26 80015A Screw, 3/8 -16 x 2 2
27 61550A Mount, Front Arm 1
28 61491A Bracket, Squeegee Mount 1
29 85813A Screw, 5/16 - 18 x 1 Hex HD 2
1
2
3
4
5
67
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
16
