Clarke Focus - Right Arm Control Assembly Drawing

Page -84- Clarke
®
Operator's Manual -Focus Rider Scrubber
Clarke
®
FOCUS Rider Scrubber

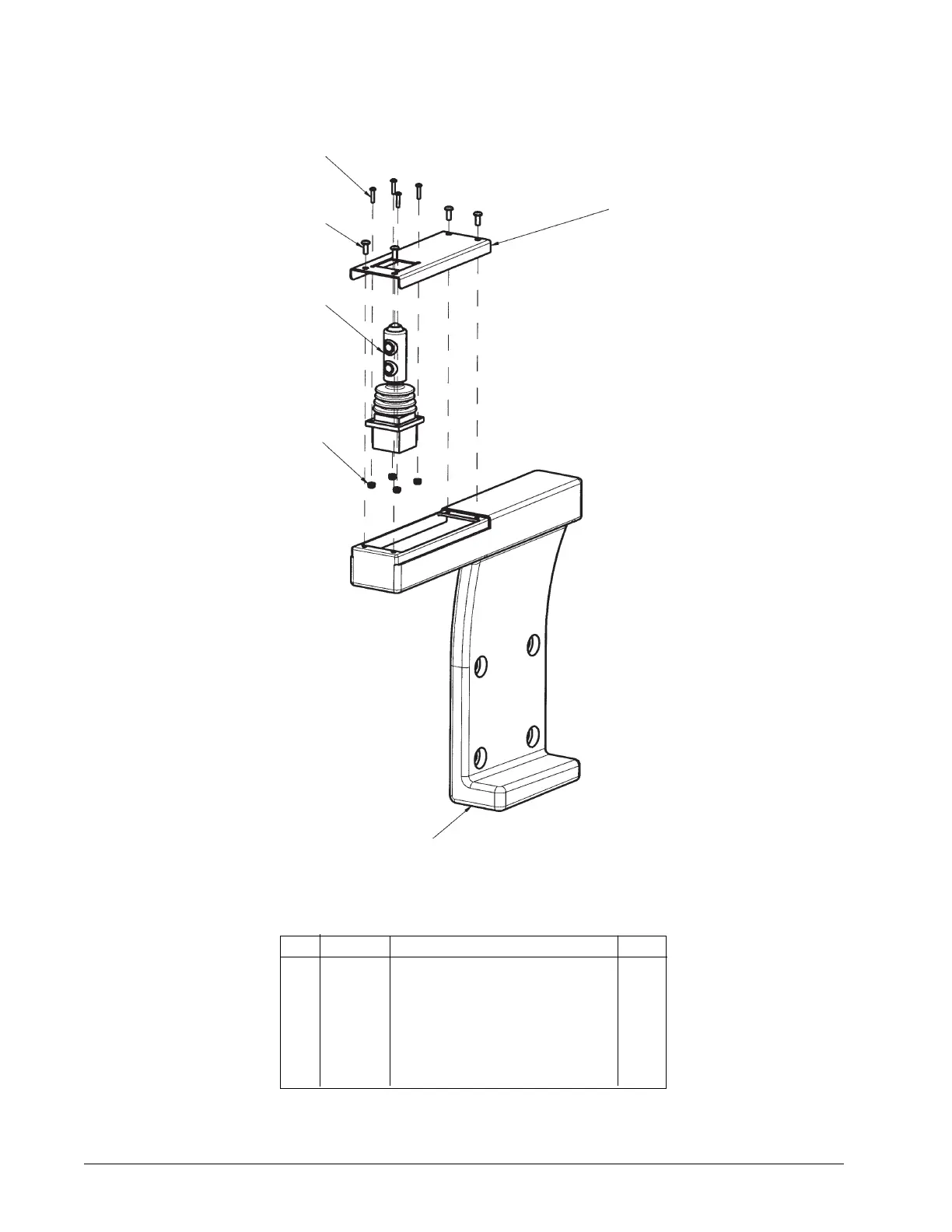

Right Arm Control Assembly Drawing and Parts List 6/04
Drawing # 10781A
Ref Part No. Description Qty
1 920056 Nut, 6 - 32 ESNA Nylock 4
2 40875A Joystick 1
3 84237A Screw, 10 - 32 x .50 PH 4
4 962738 Screw, 6 - 32 x 5/8 PH 4
5 61555A Panel, Arm Rest Right Control 1
6 30532A Arm, Control Right 1
NI 70807A Label, i-Drive 1
NI = Not illustrated
