prompt)
z Realize other special functions.
USB2.0 port
To connect USB2.0 storage device, USB2.0 mouse, burner and
etc.
Power
indication light
Power indication light.
HDD abnormal
indication light
HDD error occurs or HDD capacity is below specified threshold
value, the light becomes red to alert you.
Network
abnormal
indication light
Network error occurs or there is no network connection, the light
becomes red to alert you.
Alarm indicator
light
The light becomes on when an alarm occurred.

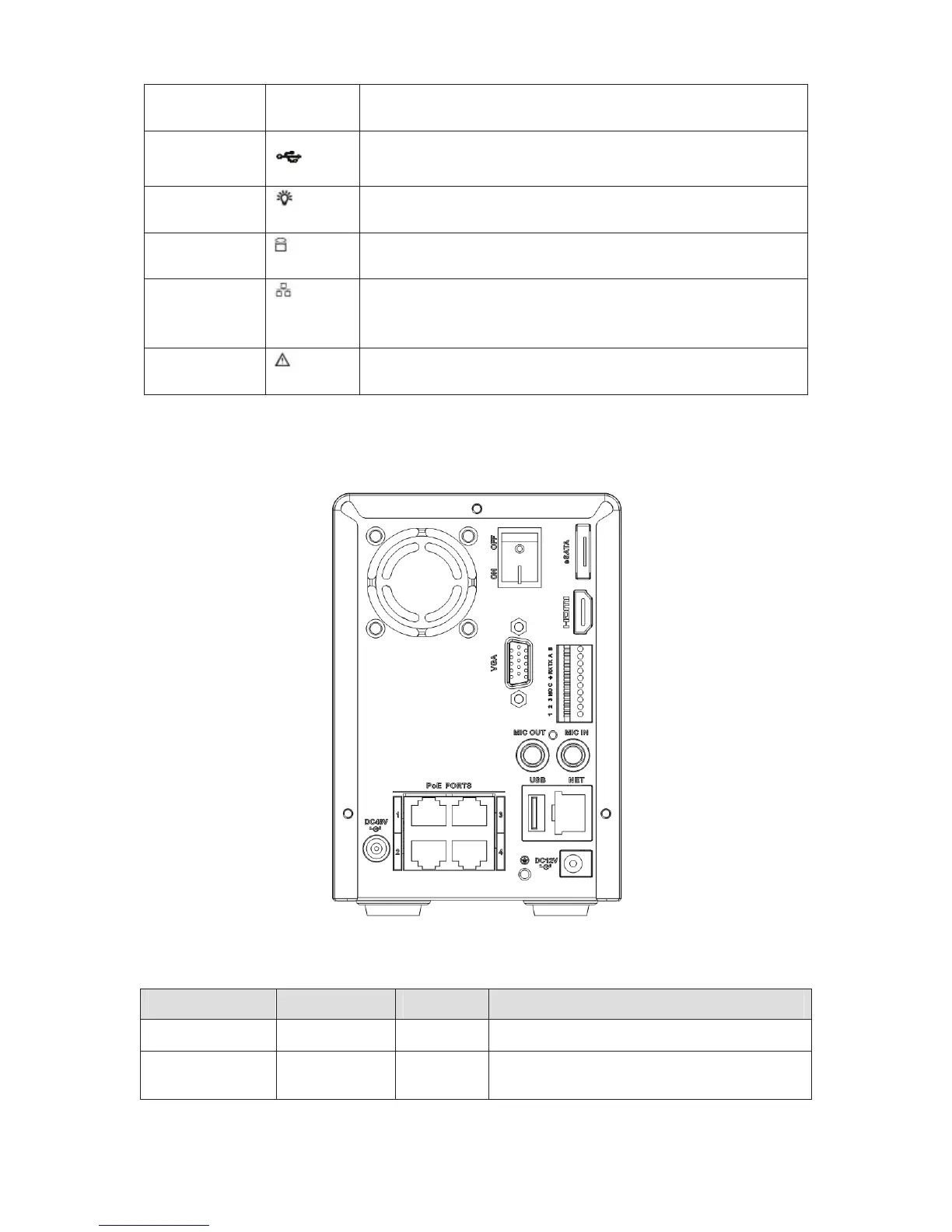

The rear panel is shown as below. See Figure 2-2.
Figure 2-2
Please refer to the following sheet for detailed information.
Port Name Connection Function
USB2.0 USB2.0 port. Connect to USB2.0 mouse.
NET Network port 10M/100M/1000Mbps self-adaptive Ethernet
port. Connect to the network cable.
