43
Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
3
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
2
Forward-Facing Rear-Facing
Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
Forward-Facing
Step 14

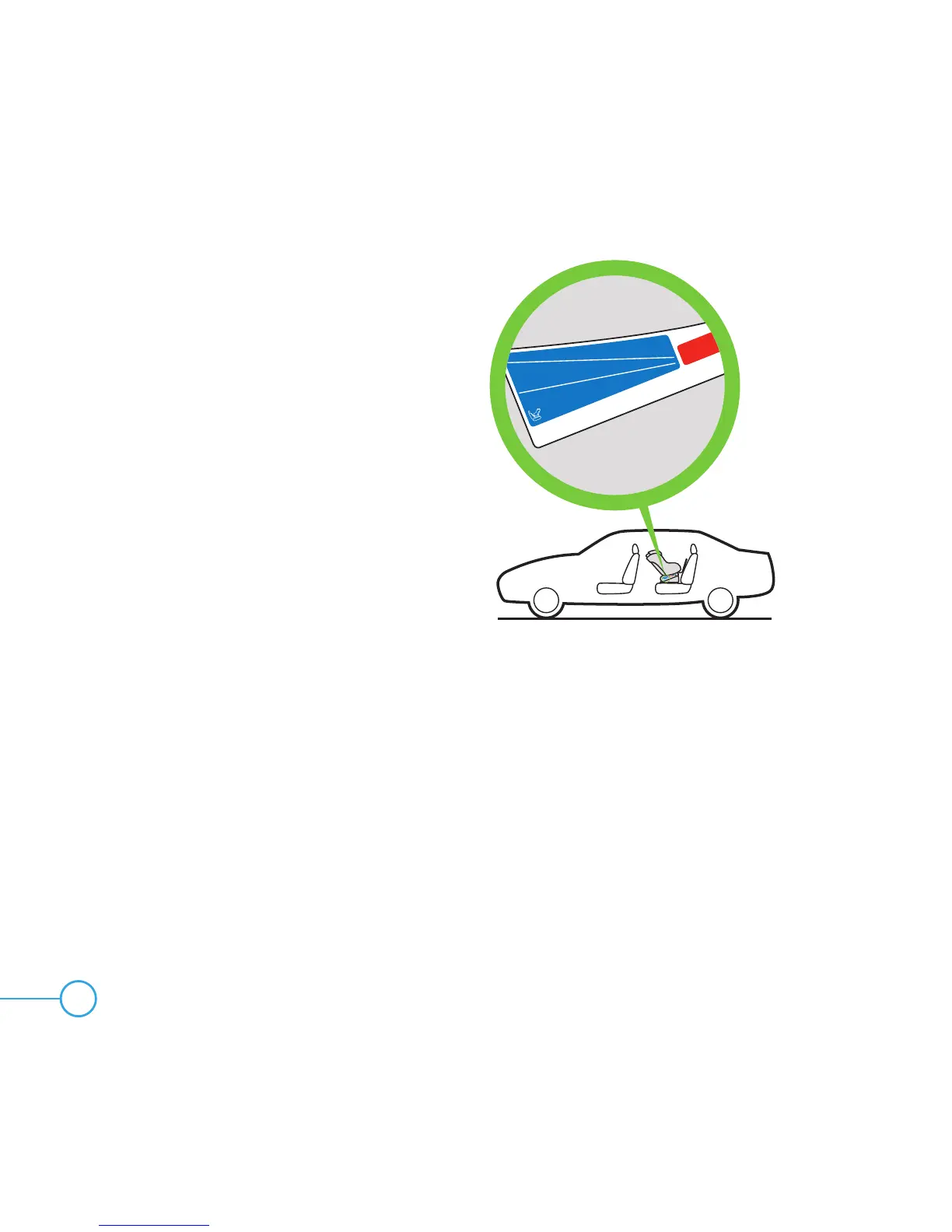

Verify that the Rear-Facing Level Reference
Line appropriate for the child’s weight
is parallel to the ground as shown in
Figure 54. If not, go back to Step 10 adjust
the recline level and try installing again,
or move the seat to a different vehicle
seating position.
NOTE: If needed, a rolled towel or pool
noodle may be placed under the foot end of
the car seat to achieve an acceptable recline
level.
Step 15
Install Seat Cushion, see “Removing/Installing
Seat Cushion” on page 83.
Figure 54
