Step 5
Open both Rear-Facing Belt Lock-offs as
shown in Figure 61.
Check that both the top and bottom portions
of each Rear-Facing Lock-off are clear of the
Rear-Facing Belt Path.
Step 6
Position the seat so that the Rear-Facing Level
Reference Line appropriate for the child’s
weight is parallel with the ground as shown
in Figure 62.
• If using with an infant under 22 lb
(10 kg), position the seat with the more
reclined Reference Line (top line) parallel
to the ground.
• If using with an older child who is over
22 lb (10 kg), position the seat with the
more upright Reference Line (bottom
line) parallel to the ground.

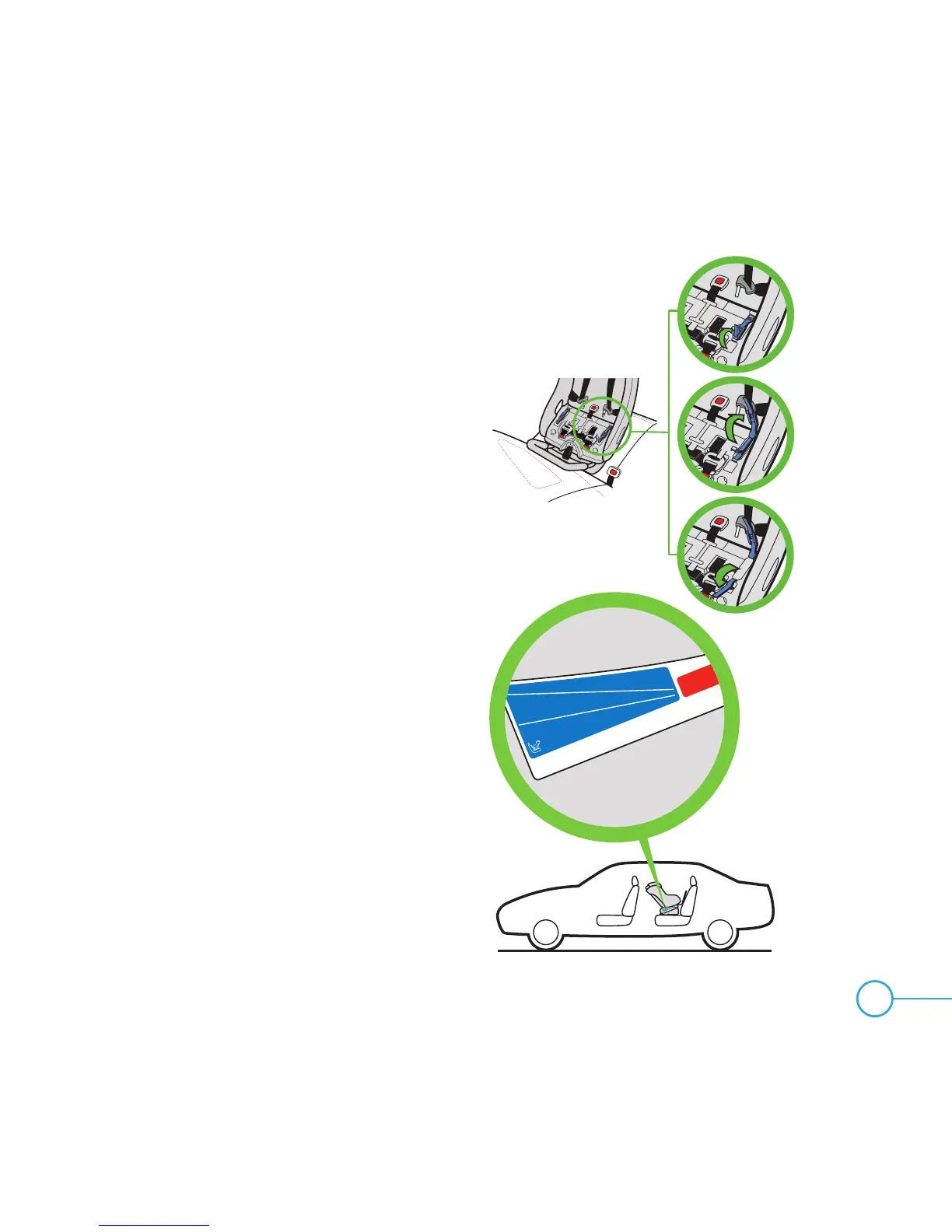

Figure 62
Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
3
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
2
Forward-Facing Rear-Facing
Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
Forward-Facing
