Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
3
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
2
Forward-Facing Rear-Facing
Child seat is properly reclined in Rear-Facing mode when the line
appropriate for the child’s weight is parallel to the ground
USE THIS LINE FOR INFANTS UNDER 22 lbs (10 kg)
USE THIS LINE FOR CHILDREN BETWEEN 22 - 50 lbs (10 - 22.7 kg)
Rear-Facing
1
• To Release Rigid LATCH Connectors: Fully extend Connectors, then pull Red Rigid LATCH Release Handles.
Forward-Facing

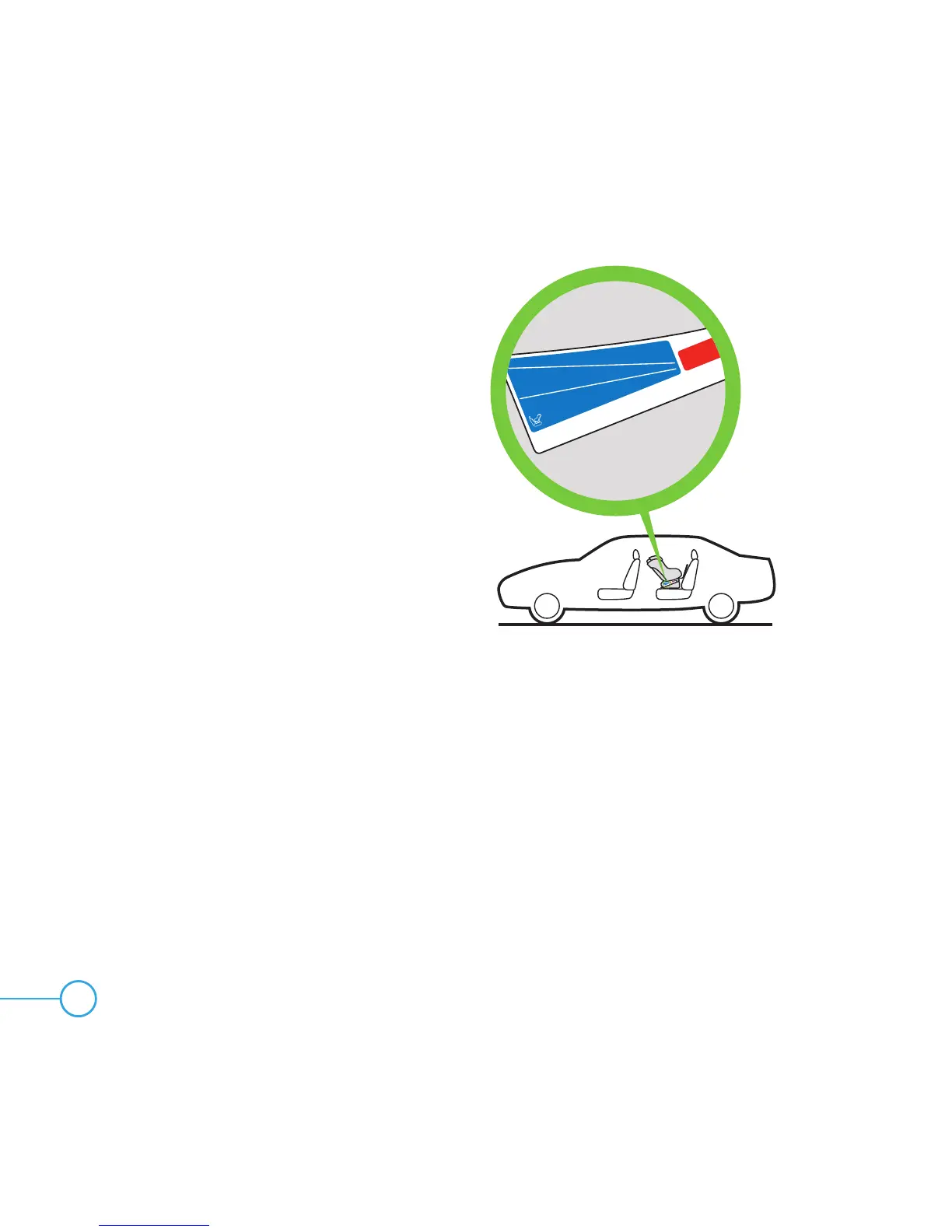

Figure 68
Step 10
Verify that the Rear-Facing Level Reference
Line appropriate for the child’s weight is
parallel to the ground as shown in Figure 68.
If not, go back to Step 6, adjust the recline
level and try installing again, or move the
seat to a different vehicle seating position.
NOTE: If needed, a rolled towel or pool
noodle may be placed under the foot end
of the car seat to achieve an acceptable
recline level.
St e p 11
Install Seat Cushion, see “Removing/Installing
Seat Cushion” on page 83.
