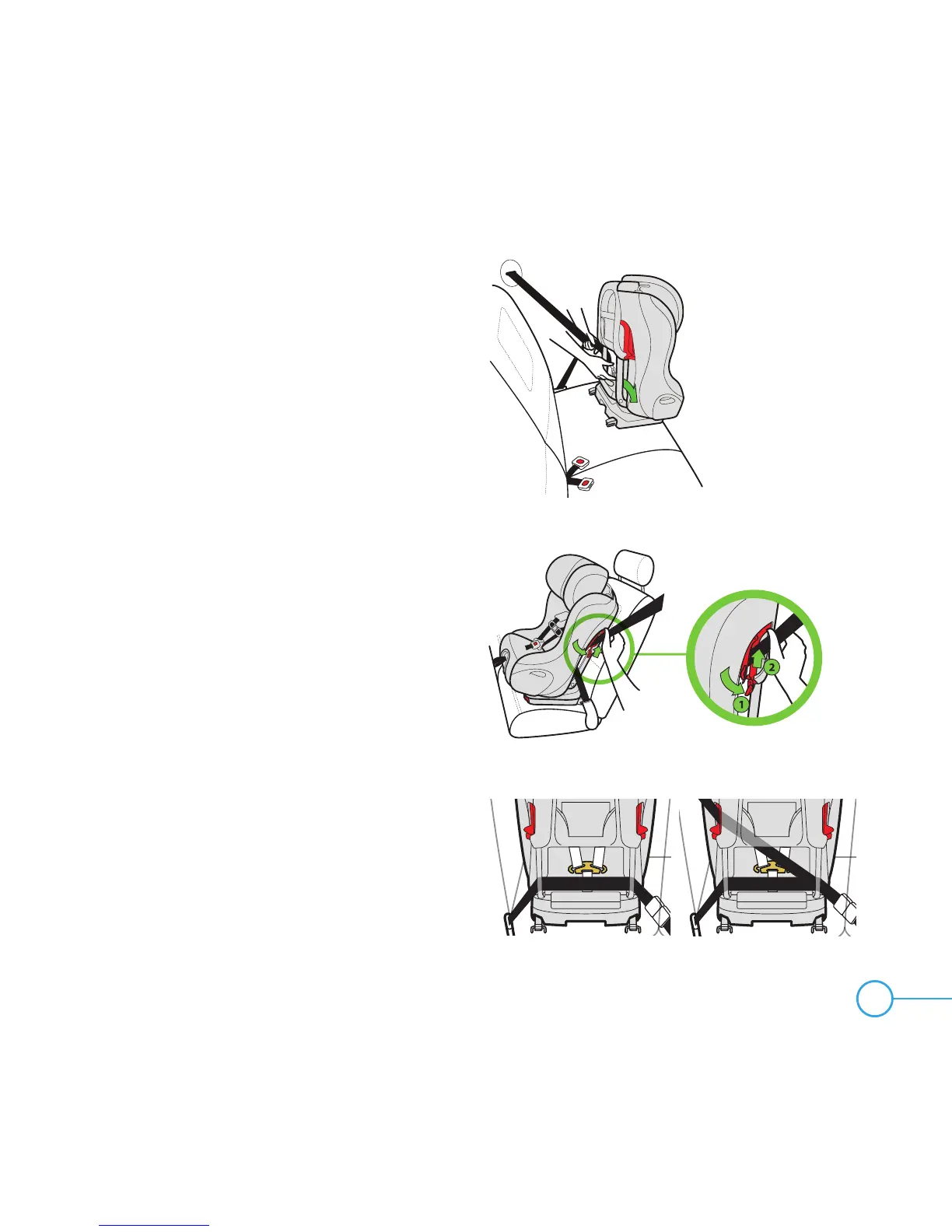

Figure 99
Step 7
Route vehicle belt through the Forward-
Facing Belt Path, taking care not to put
vehicle belt between Harness and back of
seat, and buckle vehicle belt, as shown in
Figure 99.
Step 8
If installing with a lap/shoulder belt, open
the Forward-Facing Belt Lock-off on the same
side of the seat as the vehicle shoulder belt
anchor point. Place the vehicle shoulder belt
through the Forward-Facing Belt Lock-off as
shown in Figure 100.
Step 9
Check that the entire belt is laying flat,
placed correctly in the Forward-Facing Belt
Path as shown in Figure 101 (lap belt only)
and Figure 102 (lap/ shoulder belt) and
NOT between the Harness and seat.
Figure 101 Figure 102
Figure 100
