RADIUS SL 860 07.2019 en 10
3.7.2 Required equipment of the tractor
The RADIUS may only be fitted if the carrier vehicle fulfils the following requirements:
Hydraulics: To operate the RADIUS, a single-acting distributor and a pressureless return are required.
The oil flow of the tractor must be able to supply the following oil quantity:
a) for one-sided operation 6–10 l/min (1.5 – 2.6 gpm)
b) for two-sided operation 12–20 l/min 12 – 20 l/min (3.0 – 5.2 gpm) (flow divider is necessary)
The pressure relief valve of the carrier vehicle shall be set to 180 bar.

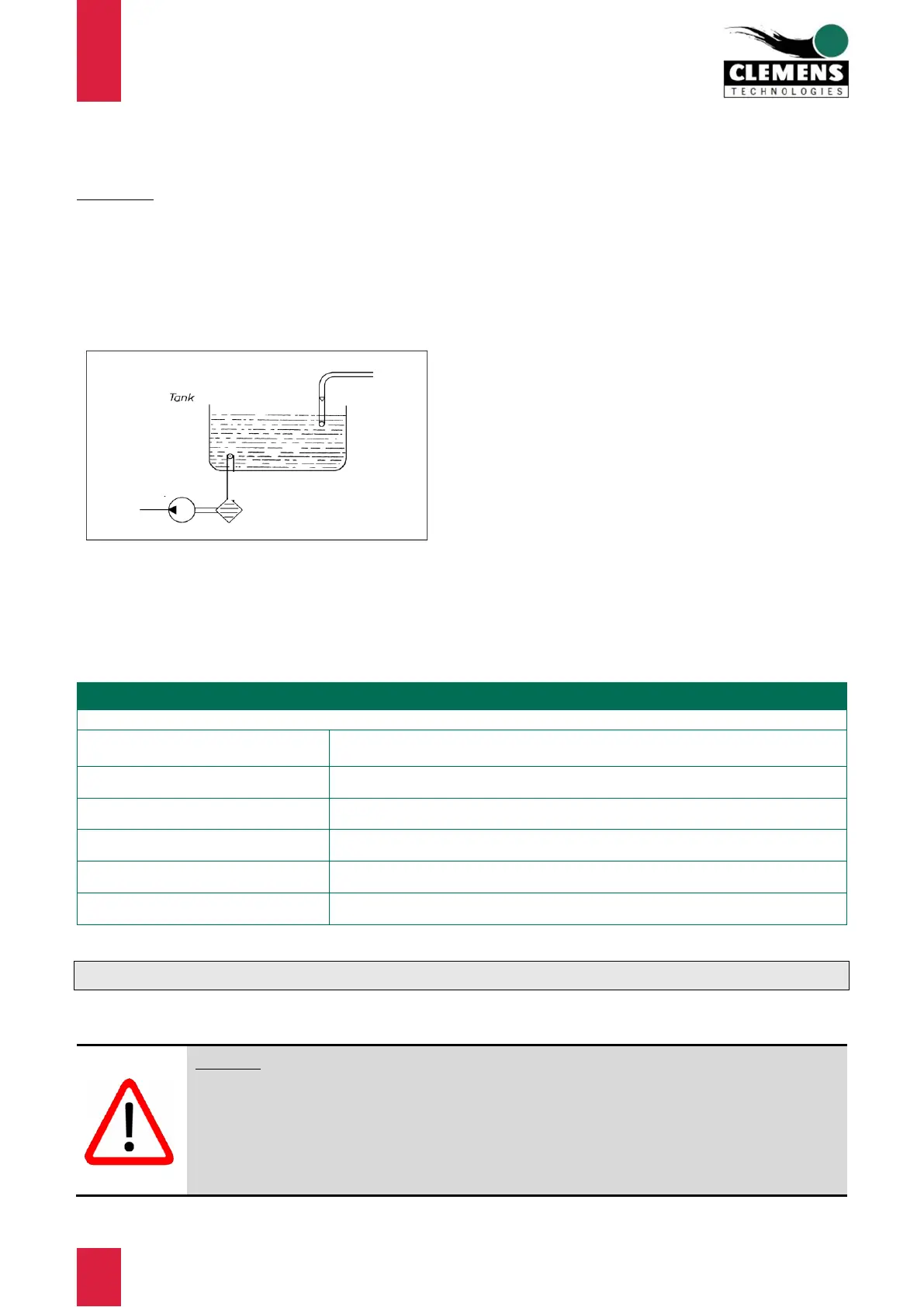

Figure 8 Return into the tank
The return flow of the oil should always be guided
pressureless back into the tank. It must be ensured that the
oil is delivered into the tank below the oil level (see Figure
8). The return hose should have at least nominal diameter
13 mm (0.5”) for one-sided operation and at least nominal
diameter 16 mm (0.63”) for two-sided operation from the
collective return.
If the carrier vehicle does not comply with all points, the RADIUS cannot function properly and the
manufacturer's warranty expires.
3.7.3 Technical data
One sided without blade share and sensor rod: approx. 33.5 kg (74 lb.)
blade share + sensor rod, depending on length 2.8 – 5.1 kg (6.2 – 11.2 lb.)
Length x width x height approx.
430 x 300 x 500 mm (17” x 12” x 20”) without blade share and sensor rod
Oil requirement one sided
6 – 10 l/min (1.5 – 2.6 gpm)
Oil requirement two sided
12 – 20 l/min (3.0 – 5.2 gpm)
4 Safety instructions
Compliance with the safety instructions is mandatory.
Attention:
Replace damaged and illegible stickers immediately!
Replace warning pictograms when repairing or replacing parts!
During cleaning work, make sure that warning pictograms are not damaged!
Familiarize yourself with the statements of the warning symbols and with the danger points
on the machine!
