10.4 Control valve

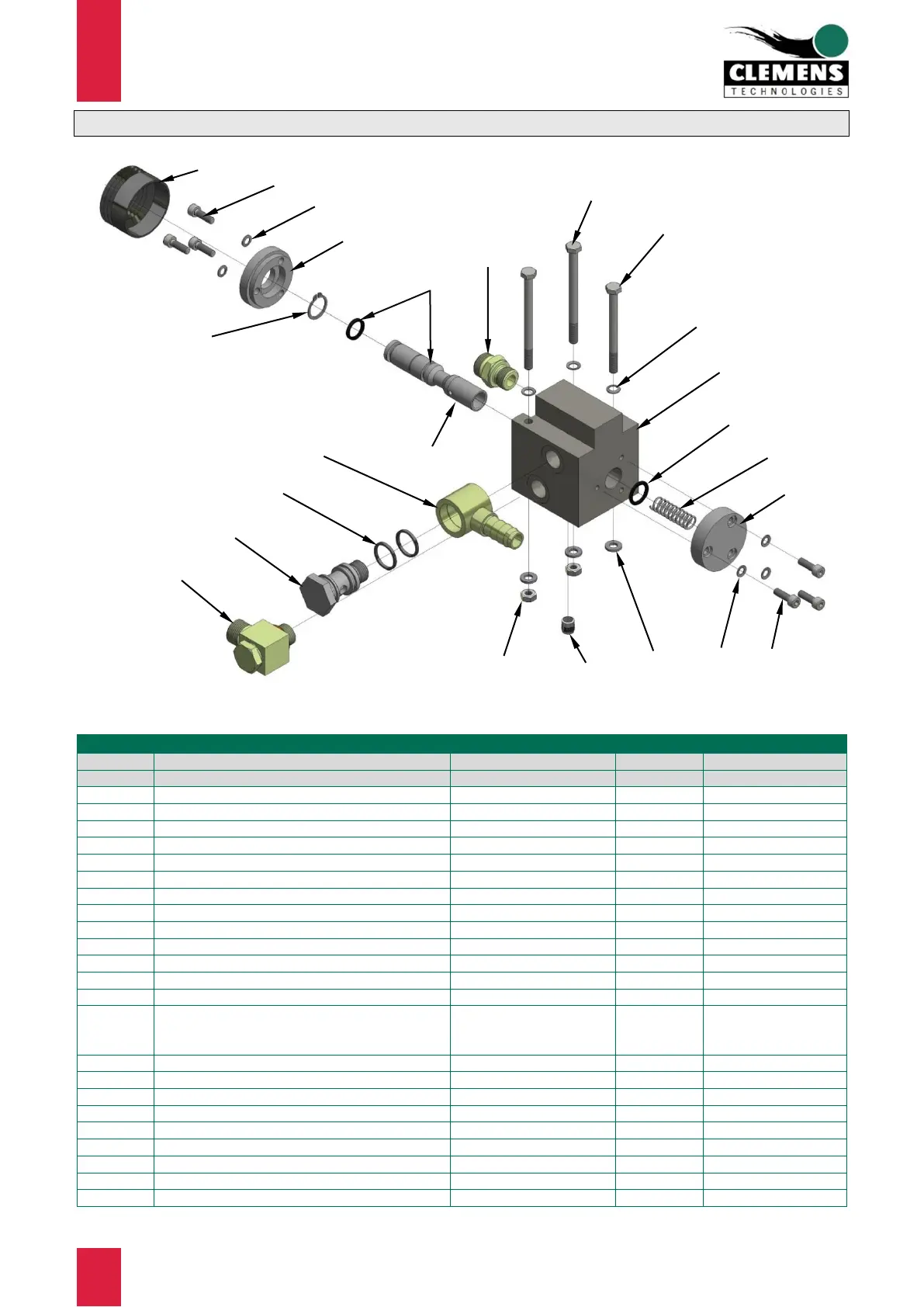

Figure 25 Spare parts Control valve
Item no.
Specification
Remark
Quantity
Order no.
Control valve rhs complete
1
CL856.030000
Control valve lhs complete
1
CL856.130000
1
Housing rhs
1
CL856.030001
1
Housing lhs
1
CL856.130001
2
Control piston
1
CL856.030002
3
Flange
1
CL856.030003
4
Cover
1
CL856.030004
5
Pressure spring
1
CW009.005300
6
Hollow screw
1
CW011.500600
7
Hose stem, return oil
1
CW011.600800
8
Lock washer
6
CW520.002500
9
Lock washer
3
CW520.002600
10
Angular connection
1
CW730.015800
11
Straight screwed socket
1
CW730.018100
12
Bellow
1
CW780.007000
13
Bore seal with O-ring
The replacement of this seal must be carried
out in accordance with section 7.5.1 !
1
CW780.012600
14
Expander
1
CW780.050100
15
Circlip ring
1
047116s
16
Socket head cap screw
6
091205016
17
Hexagon head screw
1
093106070
18
Hexagon head screw
2
093106080
19
Hexagon nut
2
093406
20
Washer
3
144006
21
O-Ring
1
OR01620
22
O-Ring
2
OR01820
1,1
13
3
4
11
10
5
12
18
17
16
19
20
9
8
15
21
14
7
22
6
16
8
2
