Clemens Technologies RADIUS SL 860 User Manual

RADIUS SL 860 07.2019 en 31
10.5 Control unit

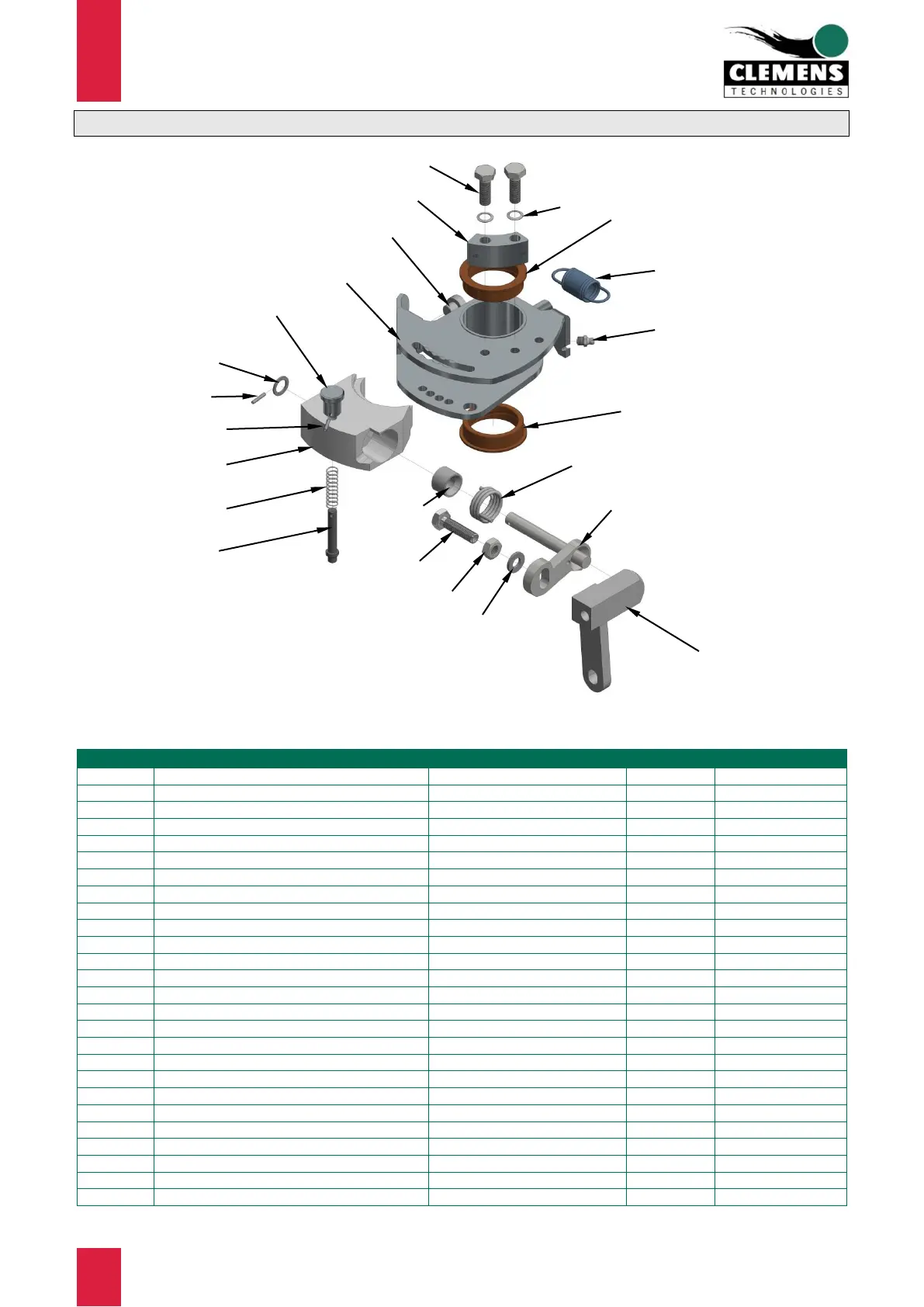

Figure 26 Spare parts Control unit
Item no.
Specification
Remark
Quantity
Order no.
1
Sensor housing rhs galv.
1
CL860.041000
1
Sensor housing lhs galv.
1
CL860.141000
2
Mounting pin rhs
1
CL856.042000
2
Mounting pin lhs
1
CL856.142000
3
Sensor rod clamp rhs
1
CA856.042000
3
Sensor rod clamp lhs
1
CA856.142000
4
Sensor rod seat rhs
1
CG856.040001
4
Sensor rod seat lhs
CG856.140001
5
Stop block
1
CL860.040001
6
Centering bolt
1
CA856.040002
7
Lock bolt
1
CL856.040003
8
Pressure section
1
CL856.040005
9
Collar bushing
2
CW004.051300
10
Pressure spring
1
CW009.004000
11
Leg spring rhs
1
CW009.040100
11
Leg spring lhs
1
CW009.040200
12
Lock washer
2
CW520.002800
13
Conical lubricating nipple
1
CW570.000100
14
Guide bushing
1
CL856.040004
15
Hexagon nut
1
093410
16
Hexagon head screw
2
093310030
17
Washer
1
144010
18
Adjusting washer
1
0988131915
19
Clamping sleeve
2
1481030162A
20
Tension spring (for strong weeds)
1
CW009.020600
21
Hexagon nut
with cup point
1
CW500.011800
9
9
13
11,11
2,2
3,3
20
8
6
4,4
10
7
15
19
17
14
1,1
16
5
19
18
21
12
