RADIUS SL 860 07.2019 en 29
10.3 Shaft unit

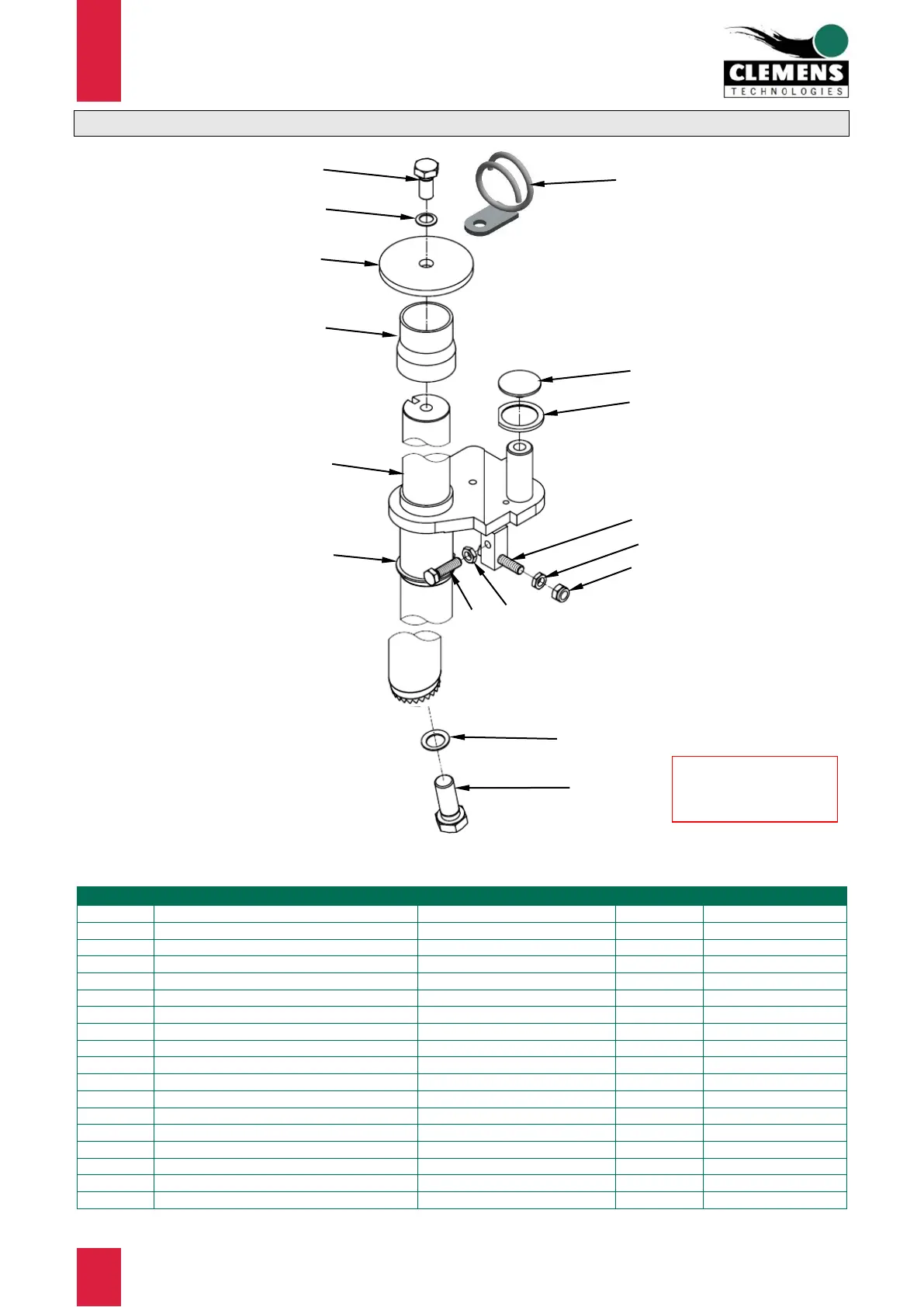

Figure 24 Spare parts Shaft unit
Item no.
Specification
Remark
Quantity
Order no.
1
Tool support rhs standard
1
CA860.021000
or
Tool support rhs 80 mm (3“) shorter
for fruit growing
CE860.021000
1
Tool support lhs standard
1
CA860.121000
or
Tool support rhs 80 mm (3“) shorter
for fruit growing
CE860.121000
2
Cover disk
1
CL856.020001
3
Spacer
1
CL860.020003
4
Disk
1
CW007.005200
5
Sliding disk
1
CW007.004900
6
Hexagon head screw
1
093312035
7
Hexagon head screw
1
096116050
8
Hexagon head screw
1
093308030
9
Hexagon nut
2
093408
10
Lock washer
1
CW520.002900
11
Screw locking disc
1
CW520.007800
12
Circlip ring
1
047145
13
Hexagon head screw
1
093308040
14
Hexagon nut
1
098508
15
Hose guide
1
CL845.901000
12
1,1
5
4
14
13
11
6
Tightening torque of
hexagon head screw
Item 7: 220 Nm
10
2
3
15
9
9
8
7
