5.2 Connecting the hydraulics to the tractor
Check that the hydraulic connections fit your tractor. There are two hoses leading to the RADIUS SL as
pressure/return lines which must not be confused. RADIUS one-sided: Pressure hose nominal size 8 mm (0.3”)
and return hose nominal size 13 mm (0.5”).
RADIUS two-sided: from flow divider to tractor pressure hose nominal size 10 mm (0.4”) and return hose nominal
size 16 mm (0.6”).
Attention:
As soon as the oil supply is switched on, the RADIUS blade share moves outwards. This is
particularly important when the unit is lifted, as it may cause injury. The unit should only be
switched on at the place of use, please keep your distance!
5.2.1 Hose installation
The hydraulic hoses are connected according to Figure 9 and Figure 10. “D“ means pressure inlet, “T“ means
tank and “Z“ connection to the cylinder.

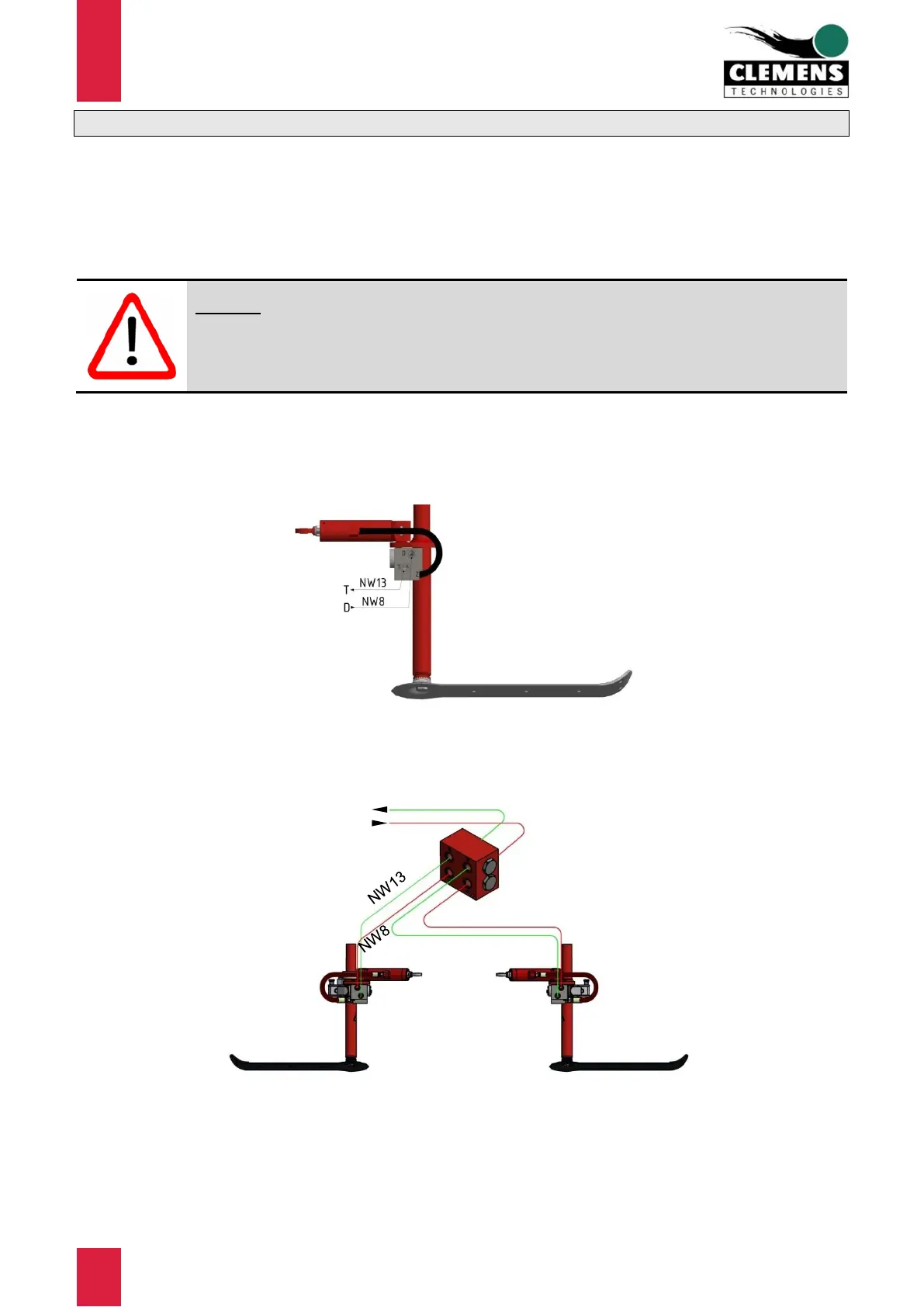

Figure 9 Hose connections on the basic unit
Figure 9: Here we show a right-hand machine without override valve.
Figure 10 Hose installation RADIUS 2-sided
Figure 10 shows the connection scheme in case of double-sided equipment without override valve, but with flow
divider and return oil-manifold. For further hose and attachment variants, please refer to the hosing diagrams in
the spare parts list!
