10.12 Lateral angle adjustment ‘S’ mechanical

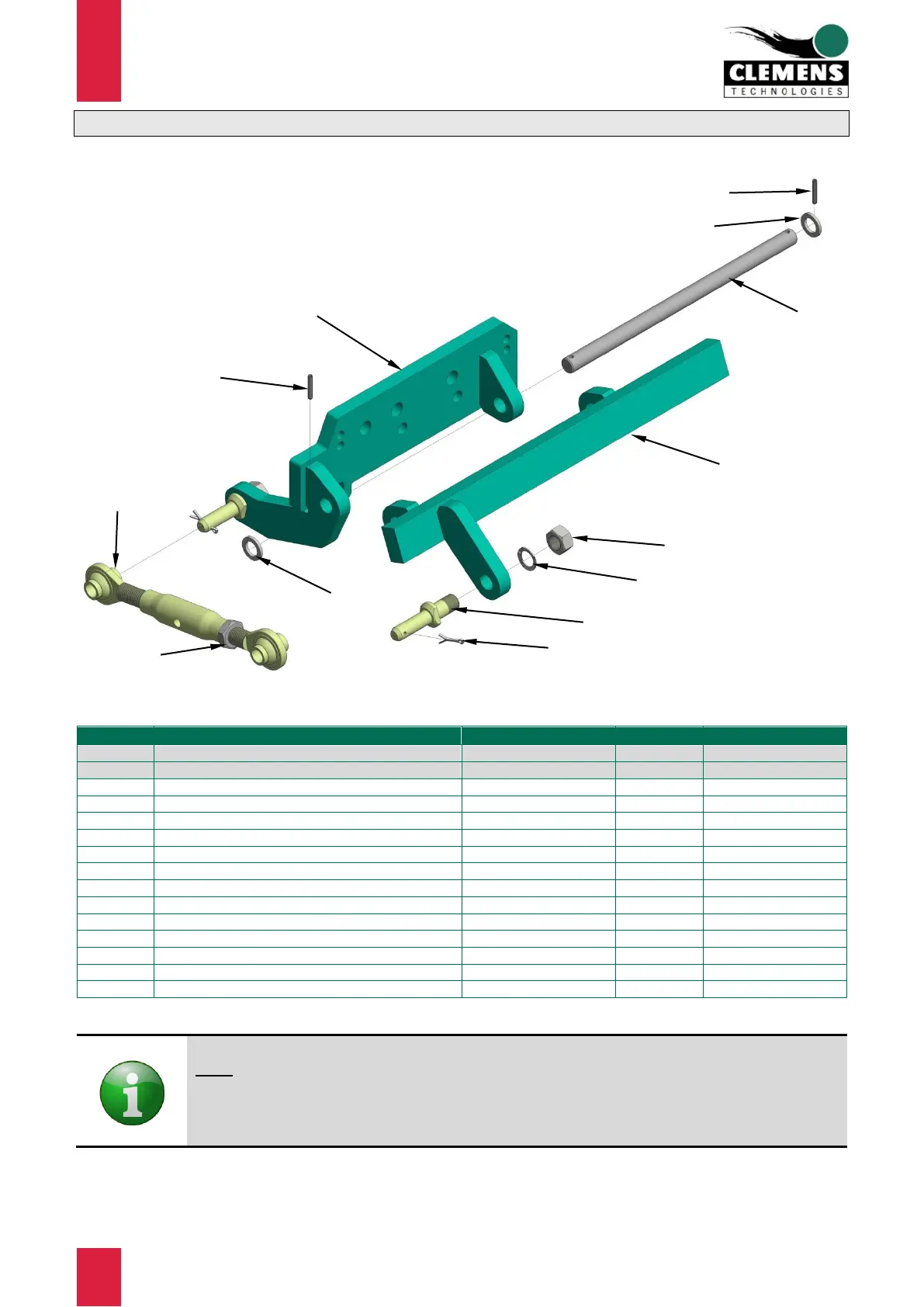

Figure 33 Spare parts Lateral angle adjustment ‘S’ mechanical
Item no.
Specification
Remark
Quantity
Order no.
Lateral angle adjustment ‘S’ mechanical rhs
complete
CI866.360000
Lateral angle adjustment ‘S’ mechanical lhs
complete
CI866.370000
1
Mount rhs (from June 2014)
1
CI866.362200
1
Mount lhs (from June 2014)
1
CI866.372200
2
Support rhs
1
CC866.362100
2
Support lhs
1
CC866.372100
3
Bolt
1
CC866.362001
4
Pin
2
CW003.004900
5
Lock washer
2
CW520.003400
6
Upper link complete
1
CW560.000700
7
Split pin
2
009440036
8
Hexagon nut
2
093422015
9
Hexagon nut
1
093624
10
Washer
2
144022
11
Clamping sleeve
2
148106036
Note:
As an alternative to items no. 6 and 9 (upper link) you will find a hydraulic adjustment on the
following page.
1
2
3
10
11
10
7
5
8
4
6
9
11
