10.8 Disk plow ø 300 mm (11.8“)

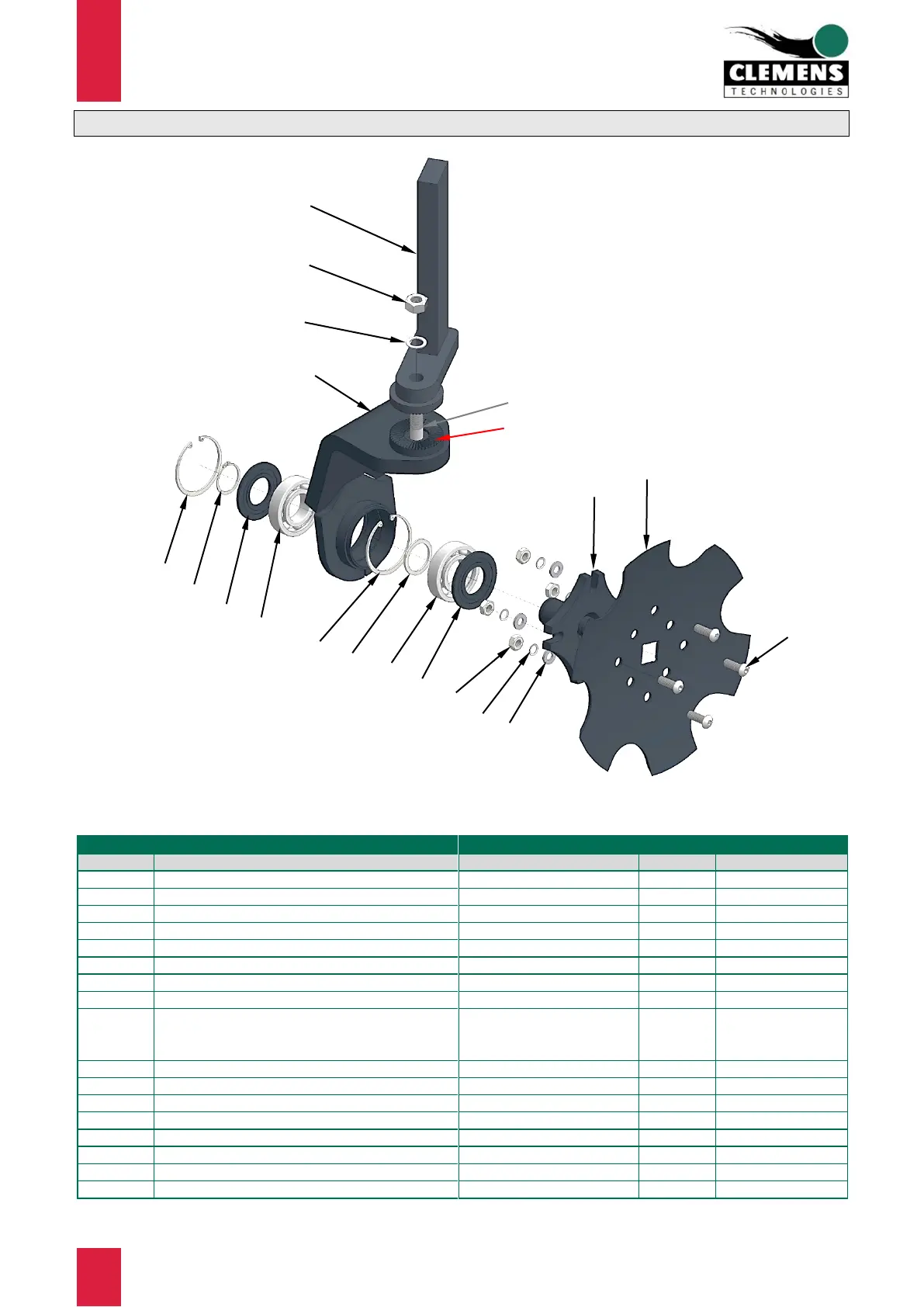

Figure 29 Spare parts Disk plow ø 300 mm (11.8")
Item no.
Specification
Remark
Quantity
Order no.
Disk plow with indented disk
Disk-ø 300 mm (11.8“)
CL926.920000
1
Bowed leg
1
CB919.121000
1.1
Serrated disc ø 65 mm (2.5“), for welding
available separately
1
CW902.002300
2
Disk support
1
CL919.122000
3
Support
1
CL926.923000
4
Oval head screw
4
CW500.010700
5
Lock washer
4
CW520.002800
6
Lock washer
1
CW520.003100
7
Ball bearing
2
CW540.026500
8
Plow disk
Ø300 mm (11.8”) indented
1
CW650.015800
alternatively:
Plow disk
Ø300 mm (11.8”) plain
CW650.015400
9
Gasket
2
CW780.030000
10
Circlip ring
1
047135
11
Circlip ring
2
047272025
12
Hexagon head screw
1
093116080
13
Hexagon nut
4
093410
14
Hexagon nut
1
093416
15
Supporting ring
1
0988354525s
16
Washer
4
144010
1
2
3
4
5
6
7
8
9
1.1
10
11
12
13
14
15
16
7
9
11
