10.10 Swivelling disk colter

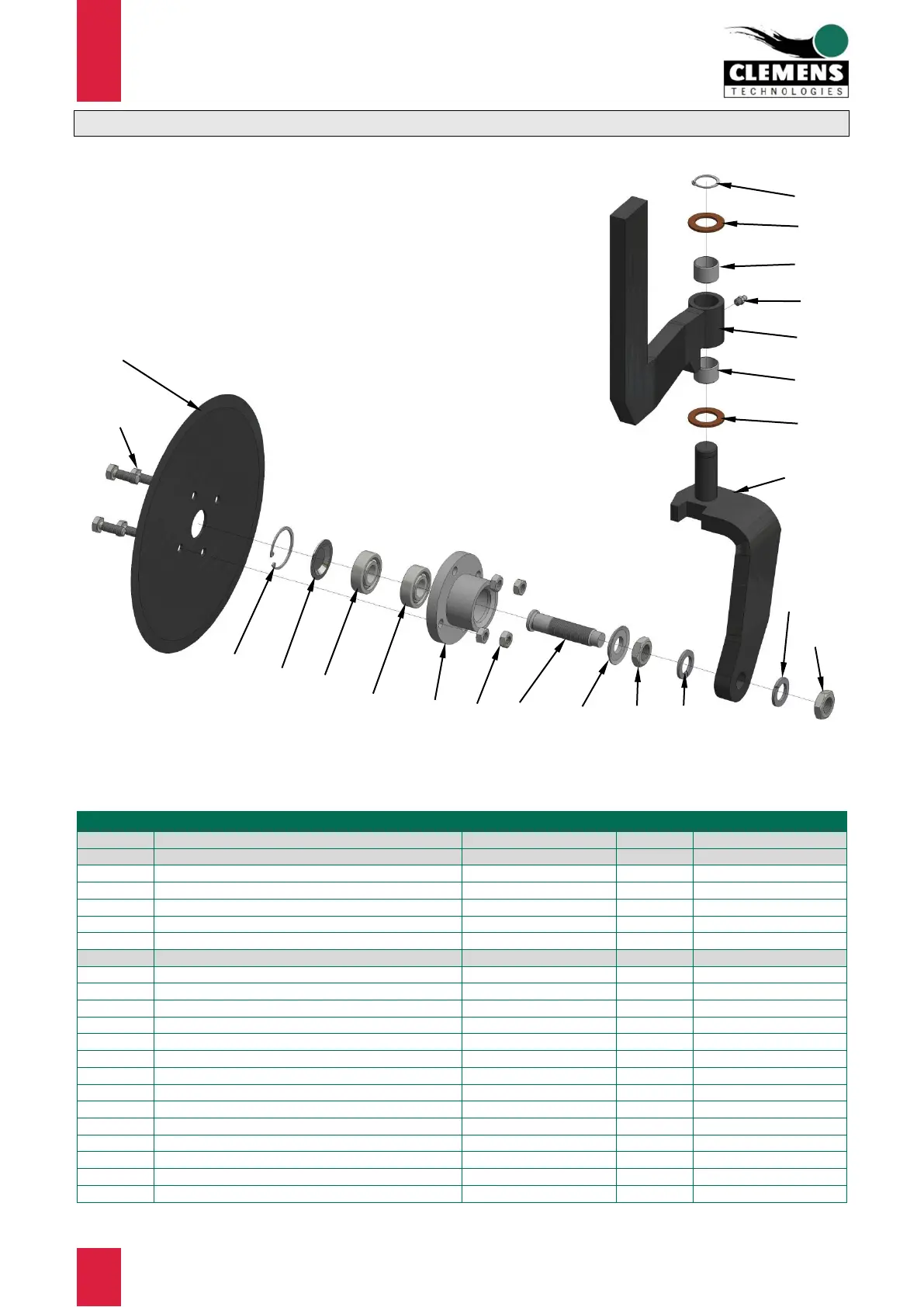

Figure 31 Spare parts Swivelling disk colter
Item no.
Specification
Remark
Quantity
Order no.
Disk colter 300 mm (11.8”) complete rhs
CC919.130000
Disk colter 300 mm (11.8”) complete lhs
CC919.630000
1
Bowed leg rhs
1
CC919.131000
1
Bowed leg lhs
1
CC919.631000
2
Stem rhs
1
CC919.132000
2
Stem lhs
1
CC919.632000
3
Spacer disk
2
CC919.130001
4
Hub support complete
1
CA919.123000
4.1
Hub
1
CA919.123001
4.2
Bolt
1
CA919.123002
4.3
Seal
1
CA919.123003
4.4
Dust protection cover
1
CW004.002400
4.5
Deep groove ball bearing
2
CW540.041800
4.6
Circlip ring
1
047247
4.7
Hexagon nut
1
093620015
5
Lock washer
2
CW520.004000
6
Slide bushing
2
CW550.001600
7
Conical lubricating nipple
1
CW570.000100
8
Colter disc
1
CW650.012200
9
Circlip ring
1
047125
10
Hexagon head screw
4
093310030
11
Hexagon nut
4
093410
4.6
4.2
4.4
4.5
4.5
4.1
4.3
4.7
4.7
8
10
11
5
5
2,2
1,1
6
6
3
3
9
7
