RADIUS SL 860 07.2019 en 28

10.2 Mounting kit

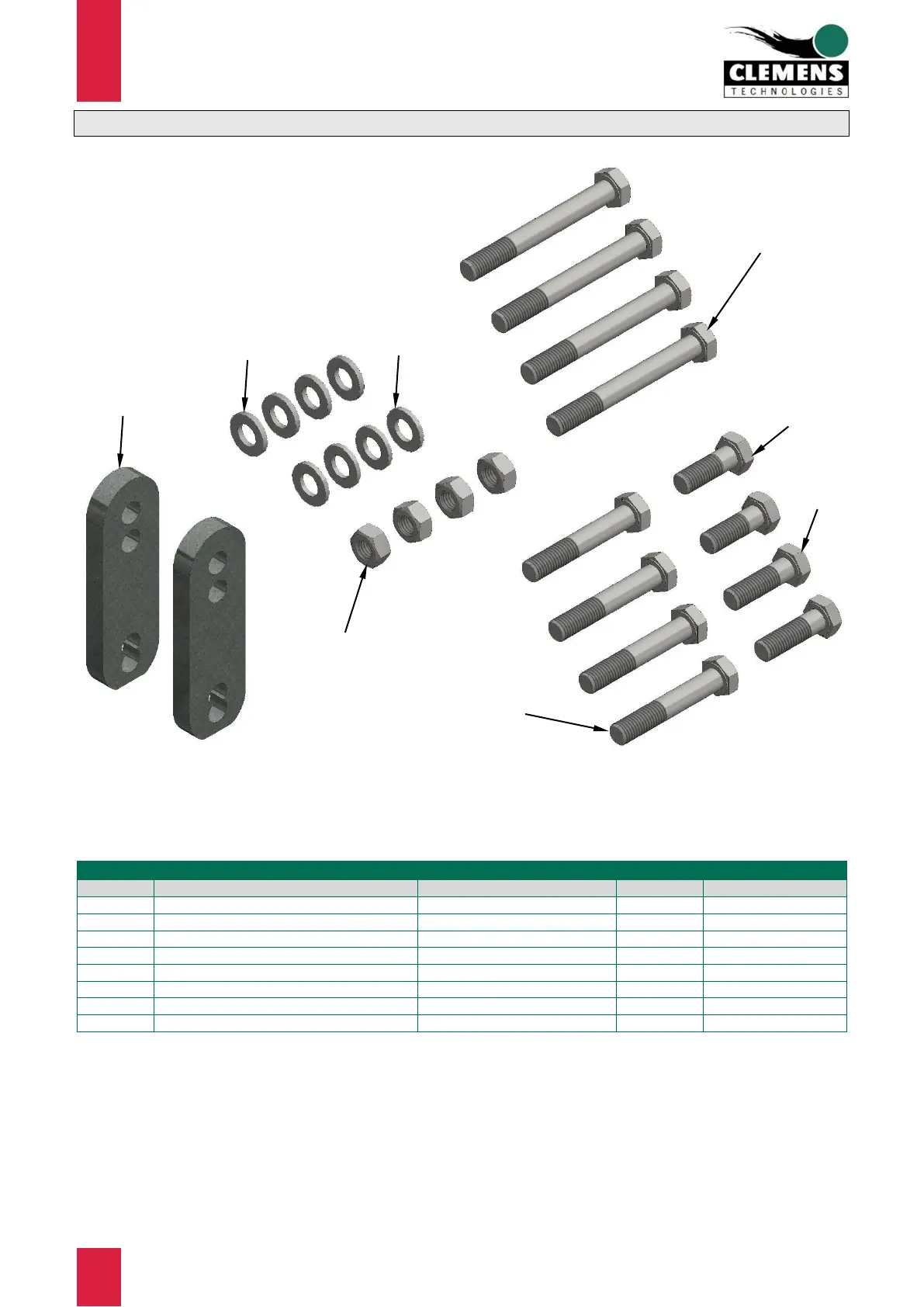

Figure 23 Spare parts Mounting kit

Item no.

Specification

Remark

Quantity

Order no.

Mounting kit

complete

CL860.220000

Clamp strap

CL860.010009

Lock washer

CW520.004300

Washer

012513

Hexagon head screw

093312035

Hexagon head screw

093112040

Hexagon head screw

093112070

Hexagon head screw

093112100

Hexagon nut

093412

Table of Contents2
Preface4
Advantages of the RADIUS SL 8604
EC Conformity Declaration5
Introduction6
General Description and Intended Use6
Basic Equipment6
Mounting Options - Mounting Heights - Working Depth7
Rear Mounting7
MID-Mounting with Column Lifter7
RADIUS Front-Mounted, Double Sided8
Support Wheels for Height Guidance8
Validity9
Contact9
General Technical Data9
Machine Number9
Required Equipment of the Tractor10
Technical Data10
Safety Instructions10
General Safety and Accident Prevention Regulations11
General11
Road and Transport Travel11
Maintenance and Repair12
Information on Noise12
Hydraulic System, Lubricant12
Warning and Information Pictograms13
First Installation14
Preparing the Machine and the Tractor14
Connecting the Hydraulics to the Tractor15
Hose Installation15
Commissioning16
Road and Transport Travel16
Operating and Adjusting the Machine16
General Indications17
Aeration17
Adjustment Without Hydraulic Pressure to the Unit17
Adjustment with Hydraulic Pressure to the Unit (Stroke Limitation)18
Adjustment of the Sensor Rod18
Working in Strong Weeds18
Changing the Blade Share18
Front Engaging Tools for RADIUS SL 86018
Drawing Cut (Trailing Position)19
Dismounting from the Tractor19
Shutting down the Machine/Implement19
Lifting the Machine with Belts and Chains20
Maintenance21
General21
Hydraulic Oil and Oil Filter21
Replacement of Wearing Parts22
Cleaning22
Seals22
Replacement of Control Valve Seal23
Lubrication Schedule24
Possible Faults and Their Elimination25
Workshop Instructions25
Basic Setting of the Machine25
Initial Installation25
First Commissioning25
Tightening Torques26
Spare Parts List and Optional Parts26
Basic Body27
Mounting Kit28
Shaft Unit29
Control Valve30
Control Unit31
Swivel Cylinder32
Blade Shares with Sensor Rods and Accessories33
Disk Plow Ø 300 MM (11.8")34
Disk Plow Ø 350 MM (13.8")35
Swivelling Disk Colter36
Clearing Body LW-137
Lateral Angle Adjustment 'S' Mechanical38
Hydraulic Installation for Lateral Angle Adjustment39
Oil Flow Divider with Return Oil Manifold 50/50 with Hoses40
Bridge Hose for 1-Sided Operation with 2-Sided Hydraulic Equipment, Disconnectable43
Retrofit Kit Manometer43
Override Valve, Electromagnetic, 1-Sided, Without Pressure Relief Valve44
Override Valve, Electromagnetic, 2-Sided, with Pressure Relief Valve46
Constant Flow Divider Adjustable 1-25 L (0.25-6.60 Gal.)49
Constant Flow Regulator 0-25 L (6.6 Gal.) and 0-50 L (13.2 Gal.) with Mounting Kit50
Mounting Kit B-Quantity Disconnectable for Flow Divider 0-25 L and 0-50 L51
Quantity B Disconnectable + Merged Return52
Hosing Variant Basic Device RADIUS: 1-Sided Mounting54
Hosing Variant 2 Pairs of RADIUS on High Clearance Tractor56
List of Illustrations58
