RADIUS SL 860 07.2019 en 27
10.1 Basic body

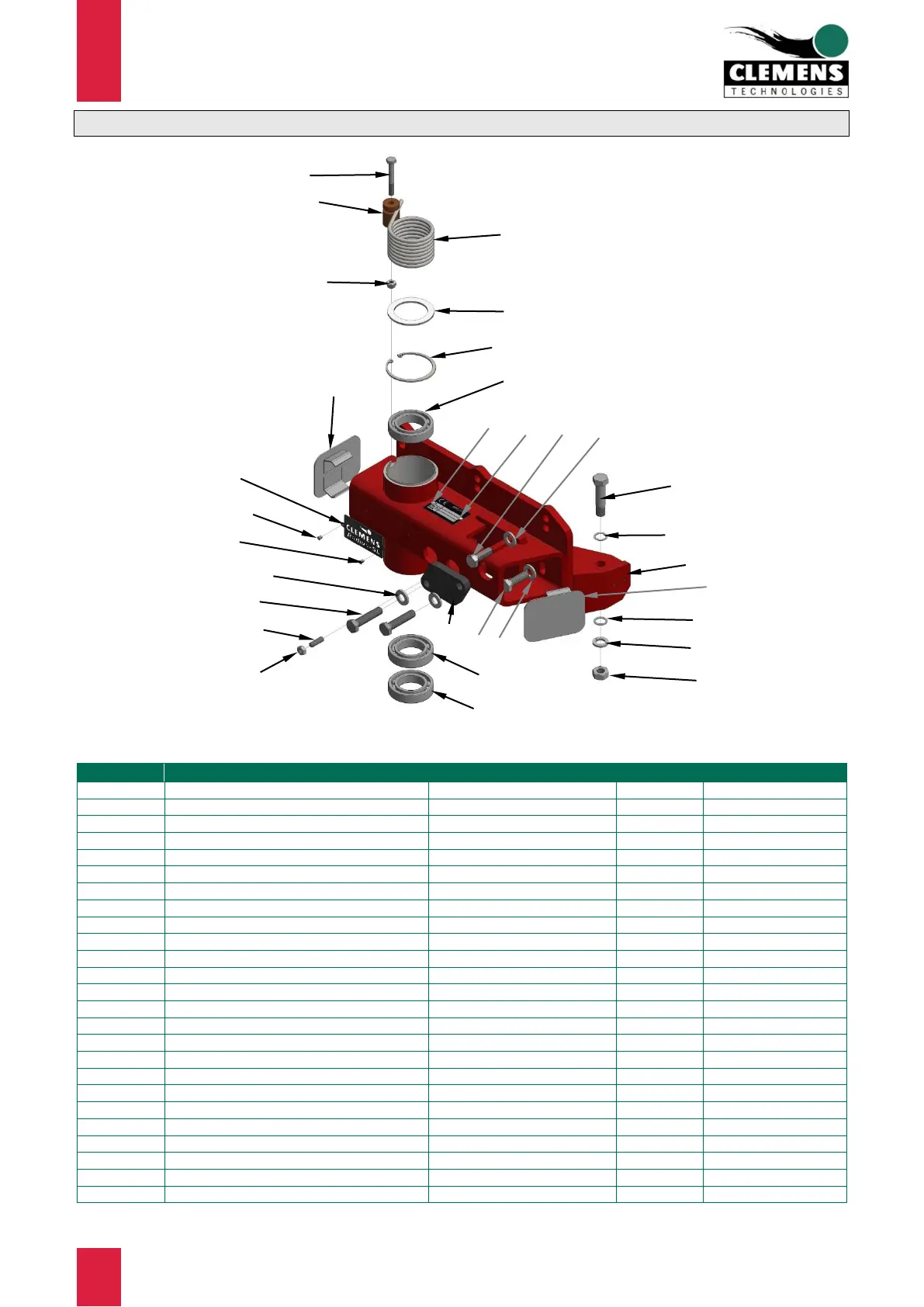

Figure 22 Spare parts Basic body
Item no.
Specification
Remark
Quantity
Order no.
1
Basic body rhs
1
CL860.011000
1
Basic body lhs
1
CL860.111000
2
Cover
2
CL860.010100
3
Clamping plate
1
CL856.010002
4
Company logo CLEMENS RADIUS SL
1
CL860.010012
5
Limiting bushing high
1
CL860.050002
7
Disk
1
CW007.004700
8
Leg spring high rhs
1
CW009.042100
8
Leg spring high lhs
1
CW009.042200
9
Deep groove ball bearing
3
CW540.064400
10
Spring washer
1
012714
11
Circlip ring
1
047272
12
Fitted screw
1
061014060s
13
Setscrew
1
091308025s
14
Hexagon screw
1
093108060
15
Hexagon screw
2
093312035
16
Hexagon screw
2
093312040
17
Hexagon screw
2
093312055
18
Hexagon nut
1
093408
19
Hexagon nut
1
093414
20
Hexagon nut
1
098508
21
Adjusting. washer
1
0988152105
22
Adjusting. washer
1
0988152110
23
Washer
6
144012
24
Blind rivet
4
7337030062A
1,1
2
2
3
5
4
7
8,8
9
9
9
10
12
13
14
15
16
17
18
19
20
21
22
23
23
23
24
24
24
24
11
