Clevo D400E - Mainboard Overview - Bottom (Connectors)

Introduction
1 - 14 Mainboard Overview - Bottom (Connectors)
1.Introduction
Mainboard Overview - Bottom (Connectors)

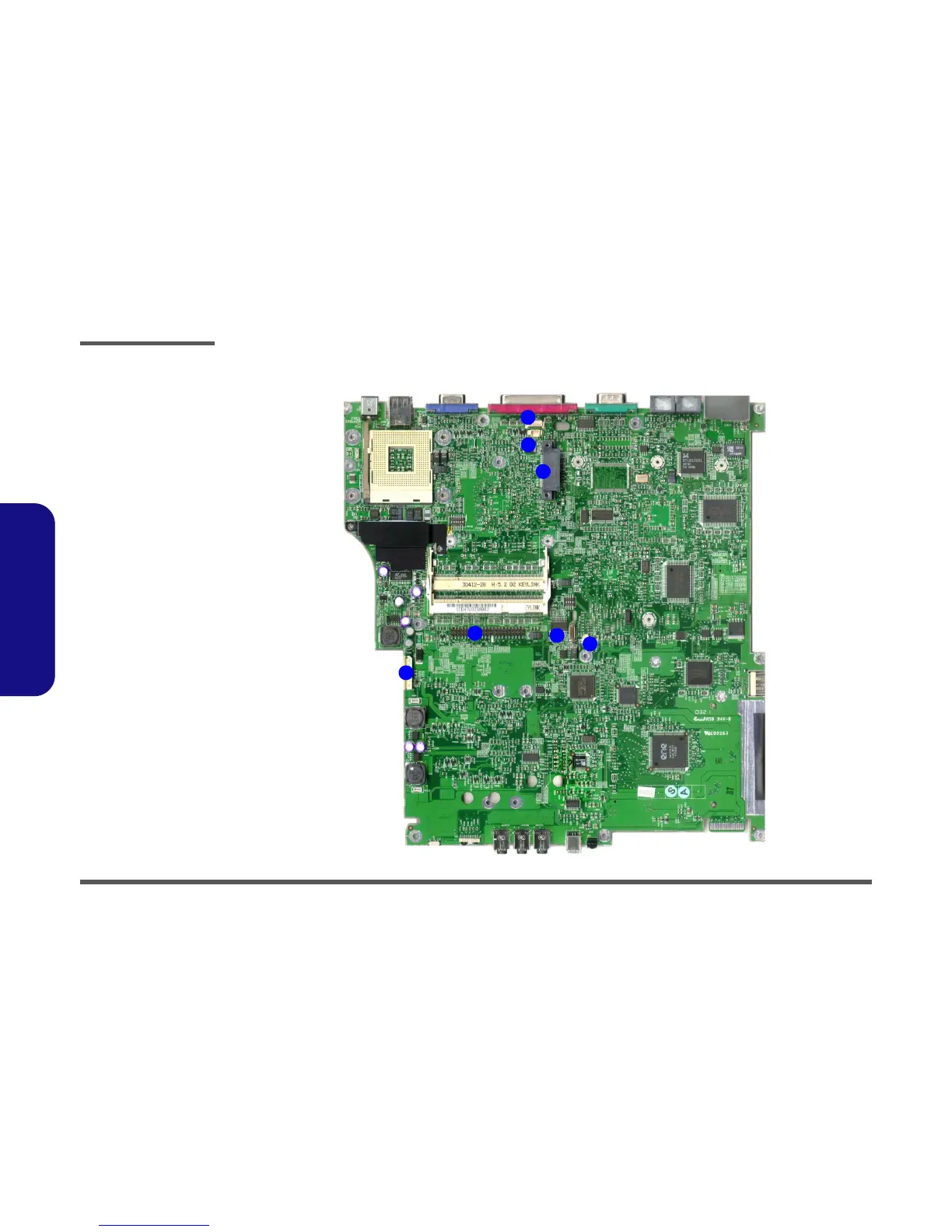

Figure 11
Mainboard Bottom
Connectors
1. Wireless LAN
Connector
(JWL1)
2. DDR Fan Cable
Connector
(JFAN2)
3. CD-ROM Device
Connector
(JCDROM1)
4. Hard Disk Cable
Connector
(JHDD1)
5. Bluetooth Module
Connector (JBT1)
6. CMOS Battery
Cable Connector
(JBAT1)
7. Battery Cable
Connector (CN5)
1
2
3
4
5
6
7
