Disassembly
2 - 18 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, remove the battery (page 2 - 8).
2. Press the three keyboard latches at the top of the keyboard to elevate the keyboard from its normal position (you
may need to use a small screwdriver to do this).
3. Carefully lift the keyboard up and out, being careful not to bend the keyboard ribbon cable (Figure 11b).
4. Disconnect the keyboard ribbon cable from the locking collar socket (Figure 11b) and lift the keyboard up
out of the computer.
1
2 3

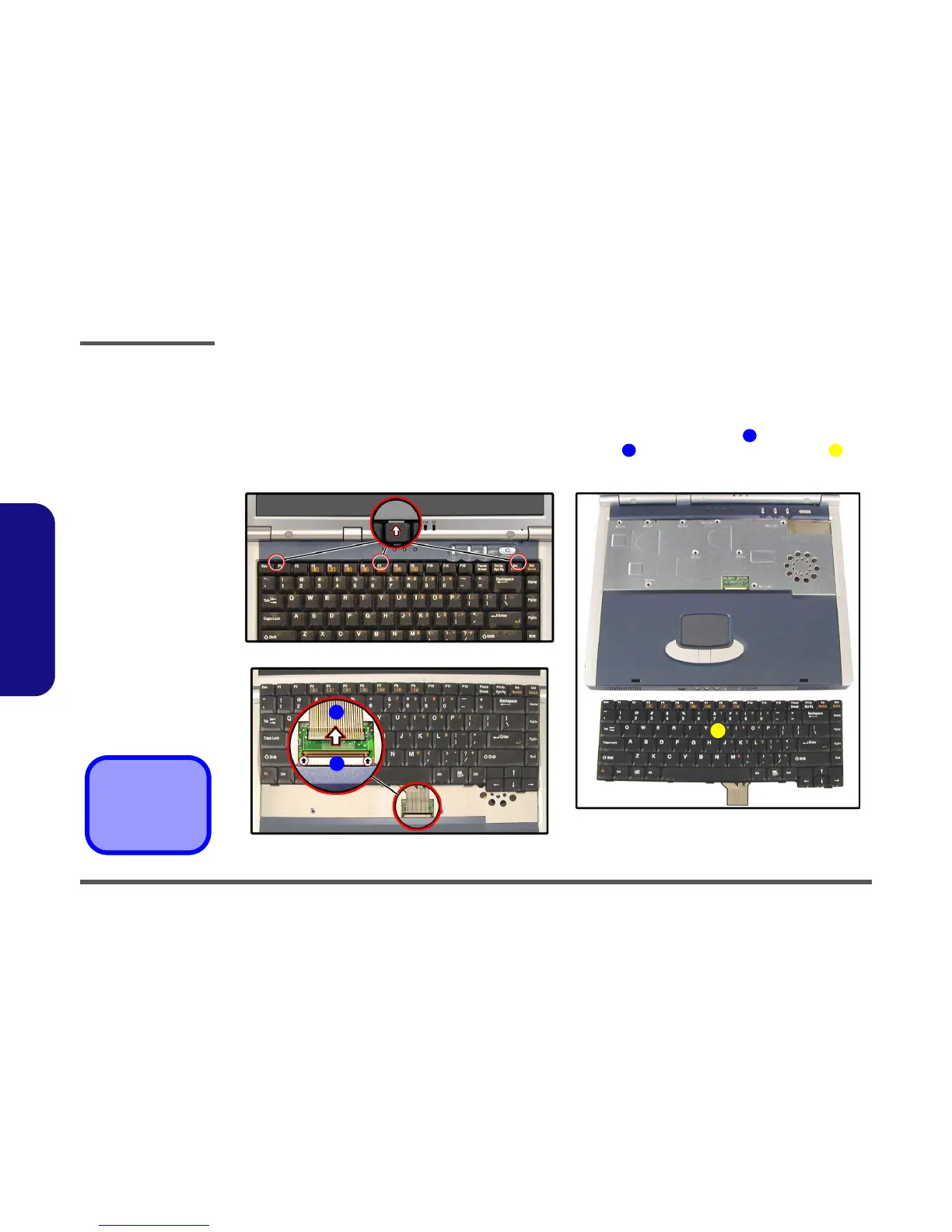

Figure 11
Keyboard Removal
a. Press the latches to ele-
vate the keyboard.
b. Disconnect the keyboard
cable form the locking
collar.
c. Remove the keyboard.
3. Keyboard
a.
3
c.
b.
1
2
