Disassembly
Removing the Fan Unit 2 - 27
2.Disassembly
Removing the Fan Unit
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), speakers (page 2 - 25) and main-
board (
page 2 - 26).
2. Remove screws - (Figure 20a) and lift out the fan unit .
5. Fan Unit
•4 Screws

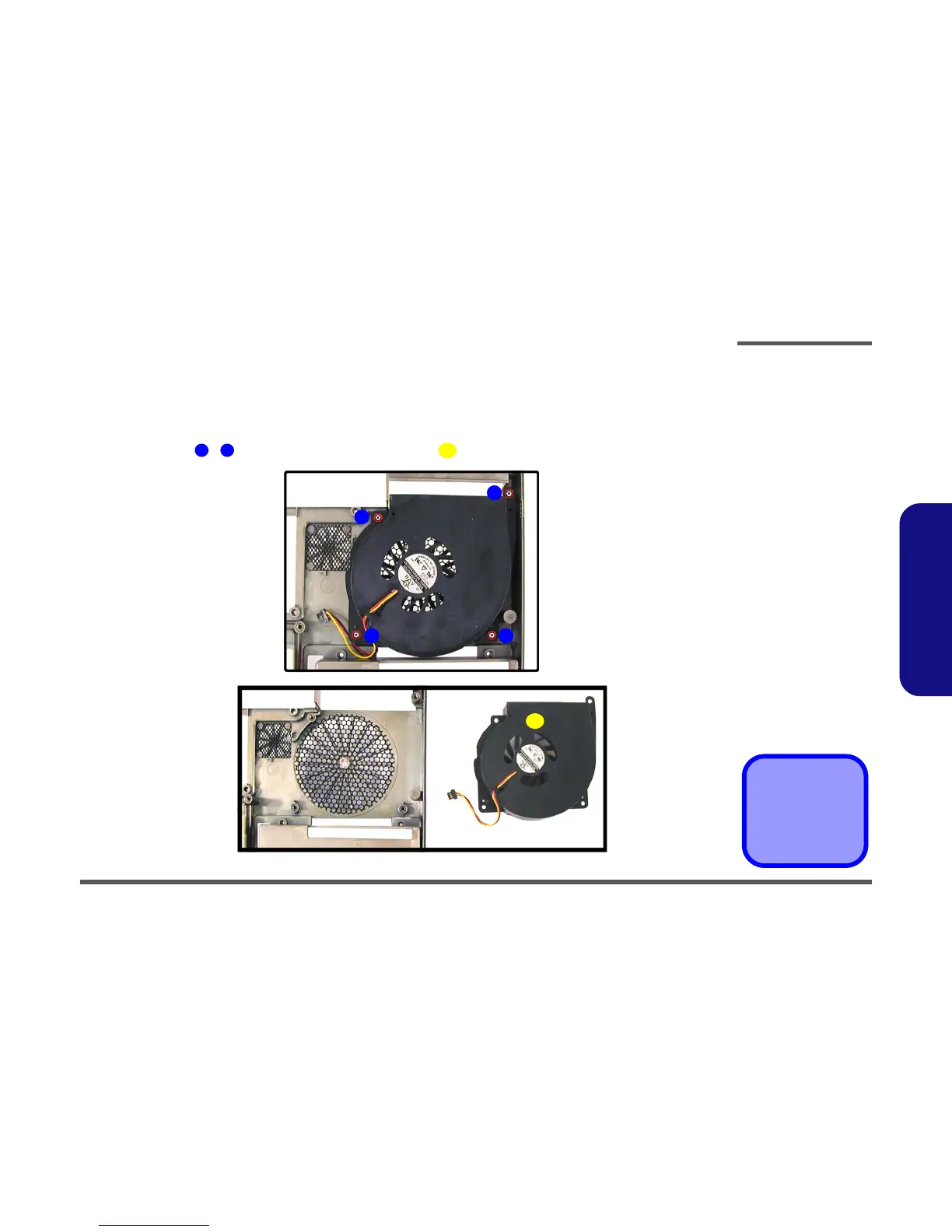

Figure 20
Fan Unit Removal
a. Remove the screws
b. Lift out the fan unit.
1 4 5
1
2
a.
b.
5
34
