Clevo D400E User Manual

Disassembly
Removing the LCD Module 2 - 33
2.Disassembly
Removing the LCD Module
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20), LCD front panel (page 2 - 30) and
inverter (
page 2 - 31).
2. Remove screws - (Figure 26a).
3. Separate the display back panel (Figure 26b), hinges and LCD module assembly.
4. Remove screws
- (Figure 26c) and separate the LCD module and brackets .

7. Back Panel
8. Hinges
17. LCD module
18. Brackets
•14 Screws

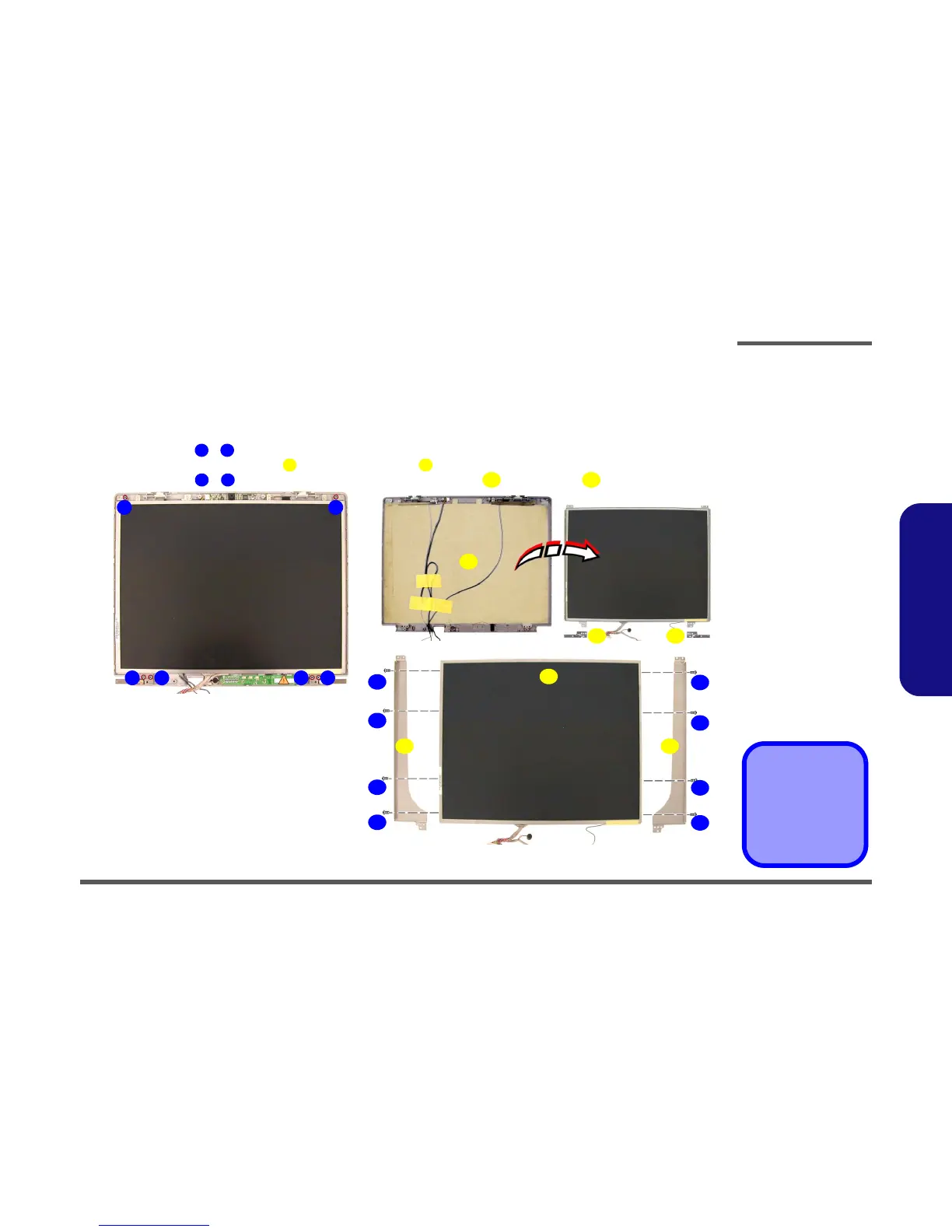

Figure 26
LCD Module
Removal
a. Remove the screws.
b. Separate the back pan-
el, hinges and LCD mod-
ule assembly.
c. Remove the screws and
separate the brackets
and LCD module.
1 6
7 8
9 16
17
a. b.
1 2
34
7
56
17
8 8
c.
9
11
10
12
13
15
14
16
1818
18
