Disassembly
2 - 26 Removing the Mainboard
2.Disassembly
Removing the Mainboard
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and speakers (page 2 - 25).
2. Disconnect cables & (Figure 19a) and remove screws .
3. Remove screws
- , separate the mainboard , rear bracket and bottom case (Figure 19b).
10. Mainboard
11. Rear Bracket
12. Bottom Case
•8 Screws

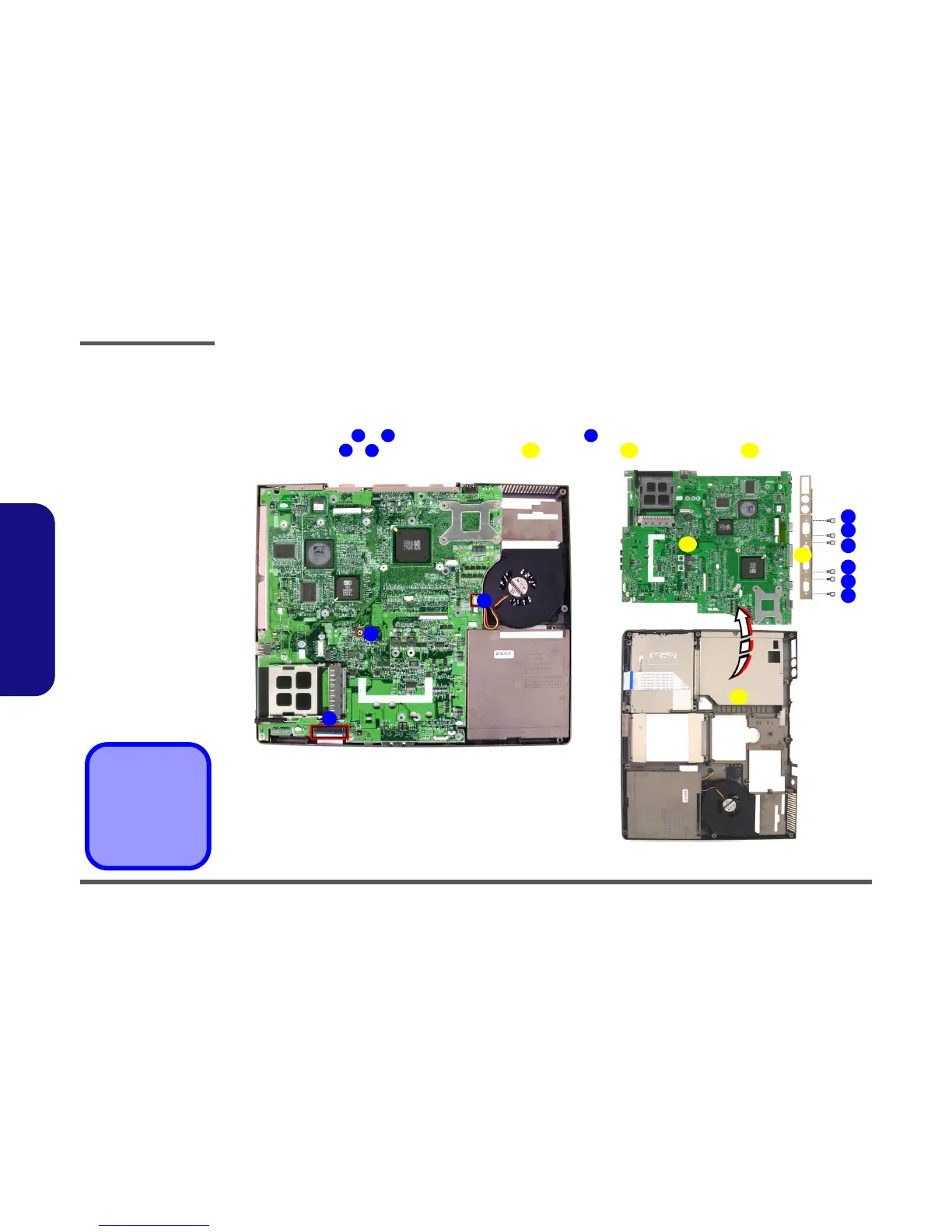

Figure 19
Mainboard Removal
a. Disconnect the cables
and remove the screws.
b. Remove screws, sepa-
rate the mainboard, rear
bracket and bottom
case.
1 2 3
4
9
10 11 12
1
2
a. b.
3
12
10
11
4
5
6
7
8
9
