Disassembly
2 - 24 Removing the Modem
2.Disassembly
Removing the Modem
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).
2. Remove screws & (Figure 17) from the modem and disconnect cable .
3. Remove the modem module .
4. Modem
•2 Screws

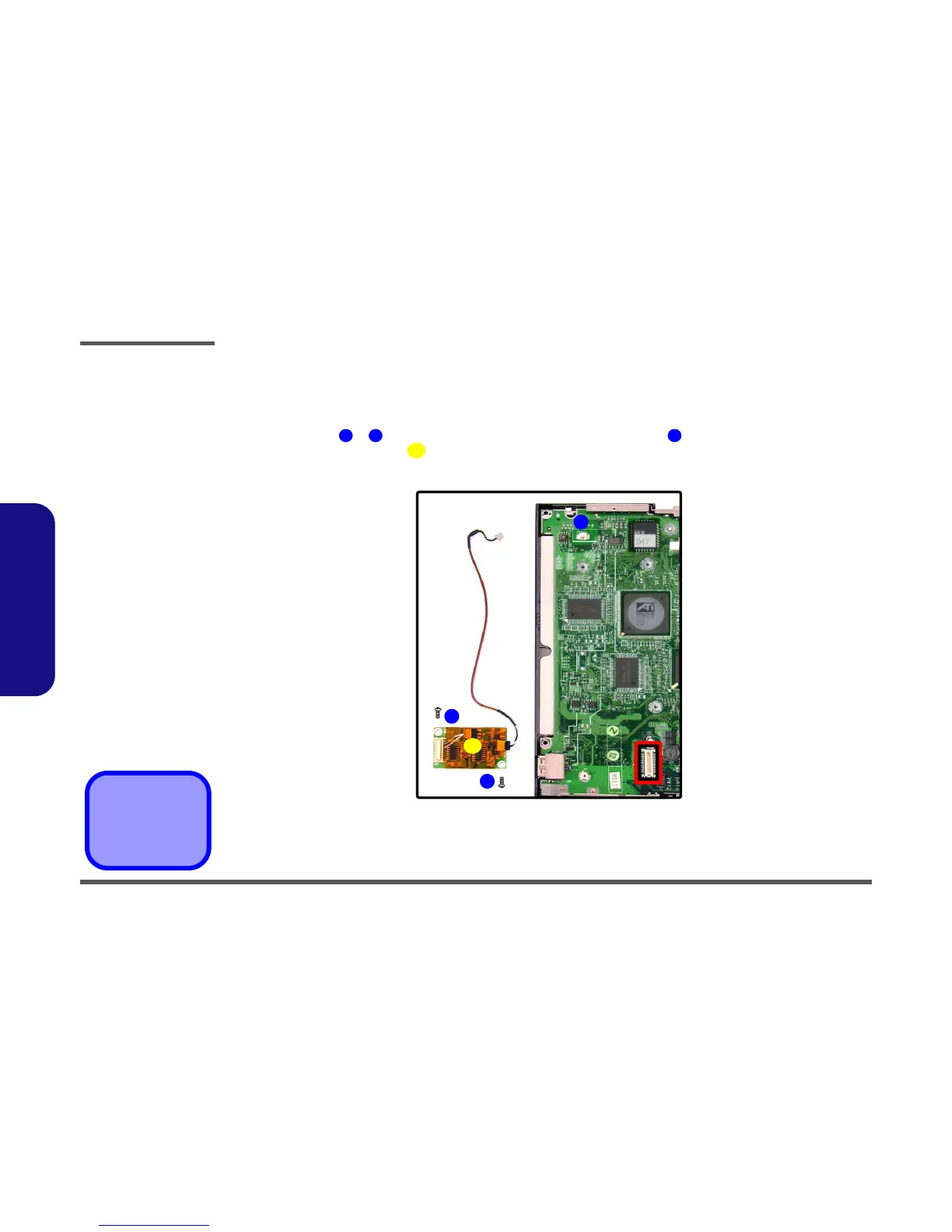

Figure 17
Modem Removal
Remove the screws, dis-
connect the cable, and
remove the modem
module.
1 2 3
4
1
2
3
4
To Next Page
