Disassembly
Removing the Switch Board 2 - 23
2.Disassembly
Removing the Switch Board
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19) and the top case and LCD (page 2 - 20).
2. Remove screws & (Figure 16a) from the switch board assembly.
3. Lift the switch board assembly
(Figure 16b) off the top case.

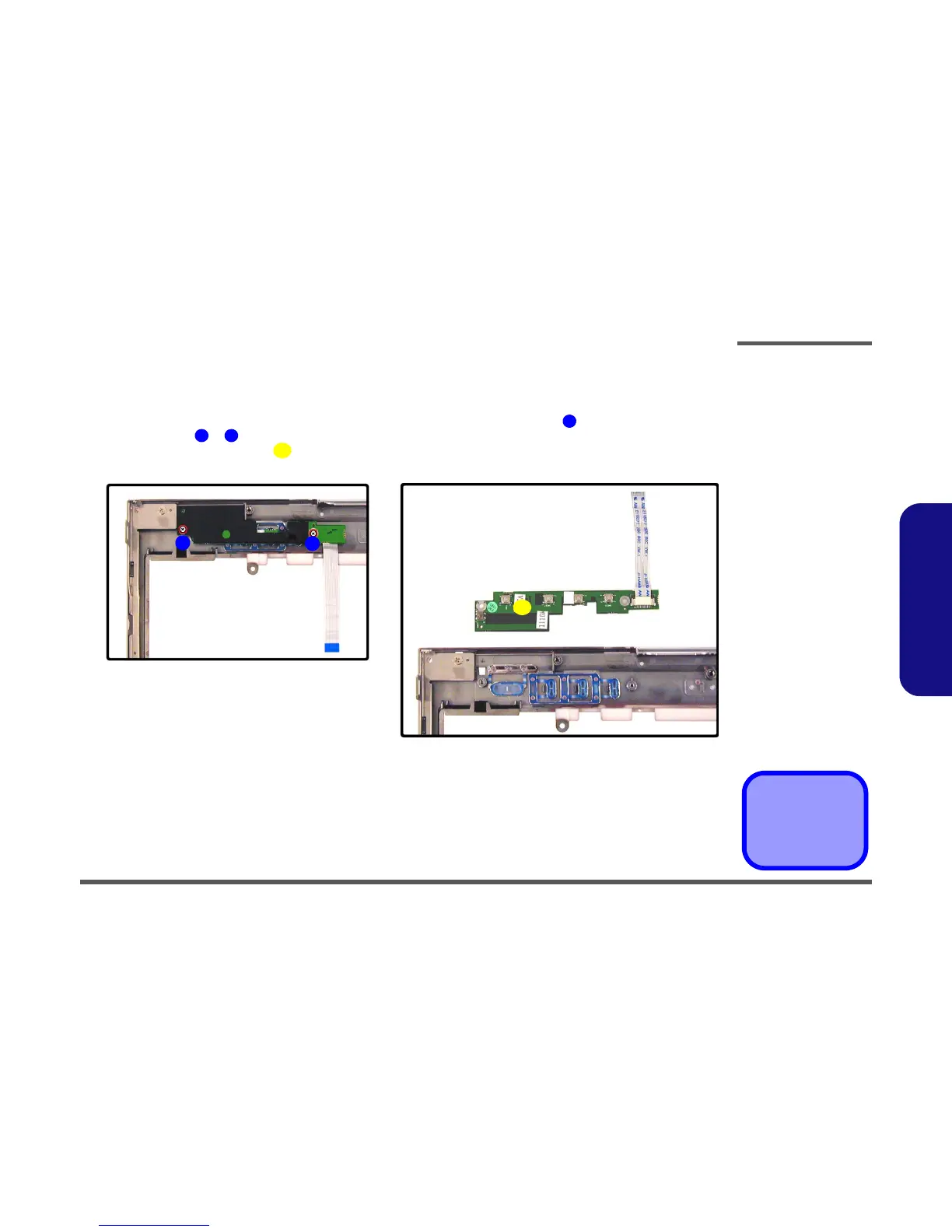

Figure 16
Switch Board
Removal
a. Remove the screws.
b. Lift the switch board as-
sembly off the top case.
3. Switch Board
•2 Screws
10
1 2
3
a. b.
1
2
3
To Next Page
