Clevo D400E User Manual

Schematic Diagrams
B - 2
B.Schematic Diagrams

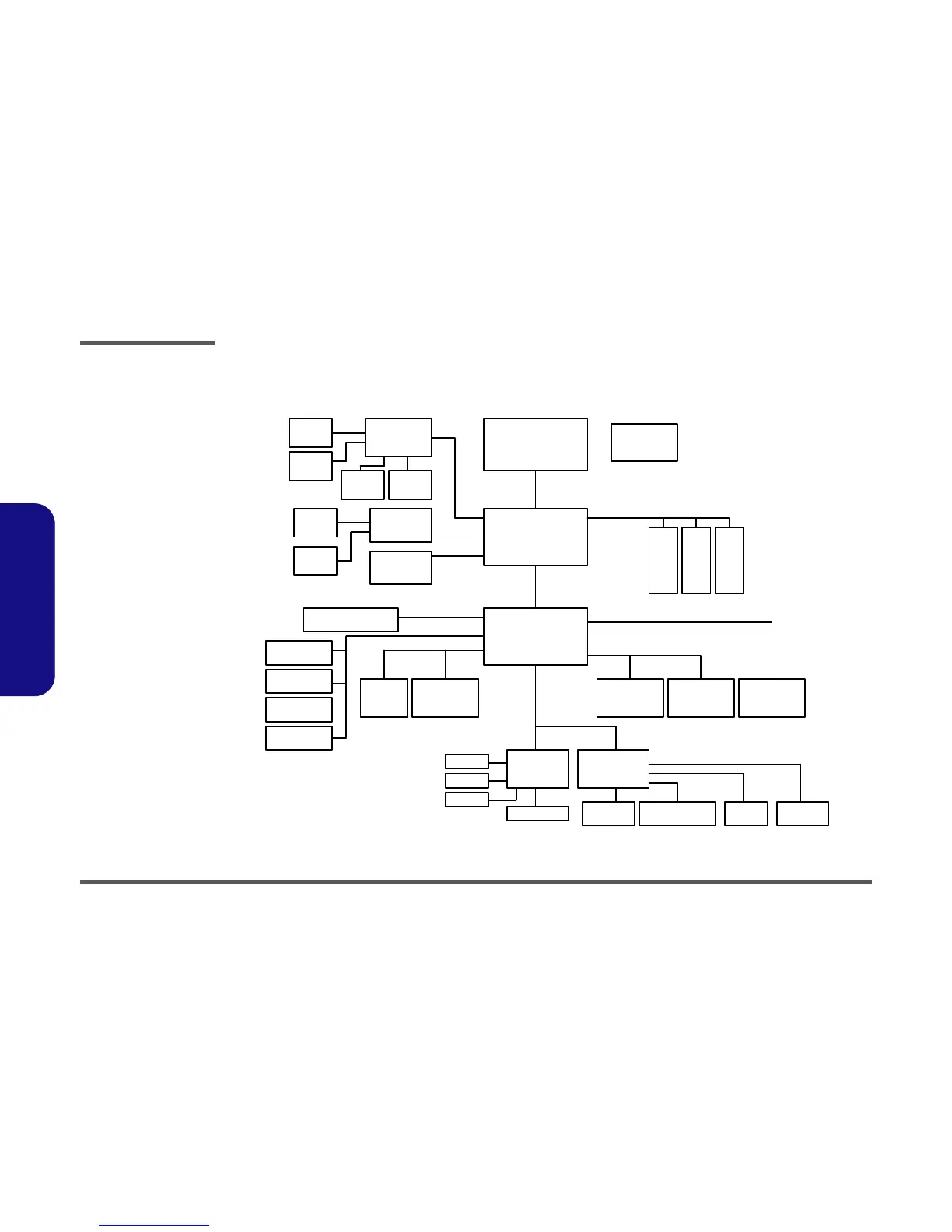

System Block Diagram
Sheet 1 of 41
System Block
Diagram
NORTHWOOD
MODEM
AUDIOMDC CODEC
ALC201A RTL8100BL
Realtek
CLOCK
GENERATOR
SOCKET - 478
Host Bus
GTL+ & AGTL
702 mBGA
DIMM1
DIMM2
Rtt
VB-LINK
PANEL
DDR INTERFACE
MuTIOL
SiS 962
371 mBGA
RGB
CRT PORT
BLUE BOOTH
USB PORT
AC ' 97 I/F
ENE 1410
CardBus
KBC H8
H8S-2149 HM
LPC I/F
INT.KB
EXT.KB
EXT.PS2
TOUCH PAD
LPC Super I/O
NS PC87393
FLASH ROM
XBUS
SiS 302LV
Ultra 66/100/133
TV-OUT
USB 2.0 I/F
Video Camera
HDD/CD-ROM CON
Wireless LAN
1394 PHY
PCI I/F
TSB41LV01
M I II/F
FDD CONCOM/PRT PORT IR
ATI M9
2/16/32
DDRAM
2/16/32
DDRAM
AB
AGP Bus 66MHz
VGATV-OUT
PANEL
SiS M645DX
