Disassembly
Removing the LCD and Top Case 2 - 21
2.Disassembly
5. Slide the LCD hinge covers & (Figure 14a) out of the computer.
6. Remove screws
& (Figure 14b) then carefully (pay careful attention to the antenna cables) lift the LCD
assembly (Figure 14c) off the computer.
7. Remove screws
& (Figure 14d) and disconnect cables & , then lift the top case assembly off the
computer.
1 2

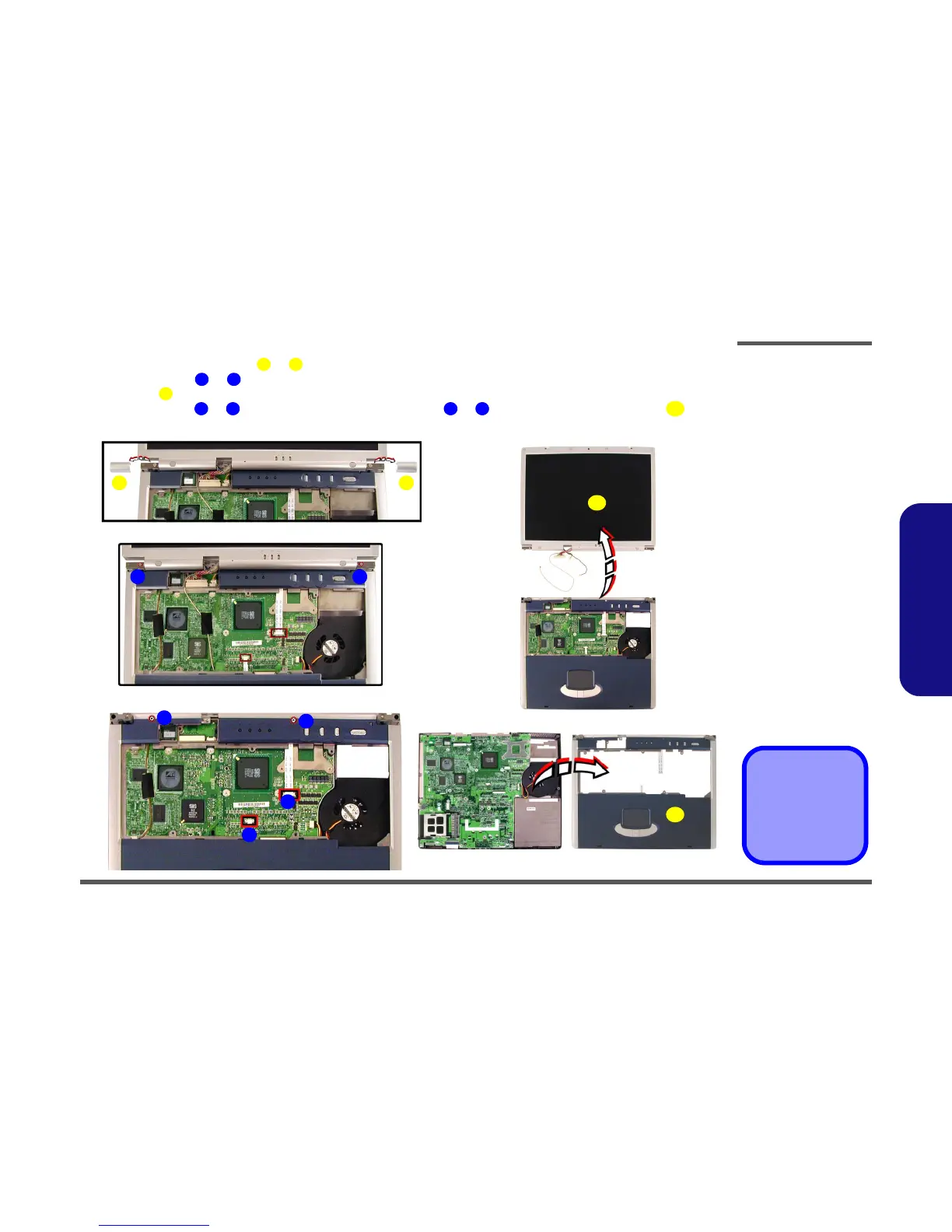

Figure 14
LCD & Top Case
Removal Cont’d
a. Remove the hinge cov-
ers.
b. Remove the screws from
the LCD.
c. Lift the LCD top case as-
sembly.
d. Remove the screws and
disconnect the cables.
e. Lift the top case assem-
bly off the computer.
1&2. Hinge covers
5. LCD Assembly
10. Top Case
•4 Screws
3 4
5
6 7 8 9
10
a.
d.
7
6
9
b.
c.
10
3 4
5
e.
8
21
To Next Page
