Clevo NB50TK1 - Rtl8411 B

Schematic Diagrams
RTL8411B B - 55
B.Schematic Diagrams
RTL8411B
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
6-06-75140-068
6-07-5R074-1A0
SPEC:30PPM
6 IN 1 SOCKET - MMC / RSMMC
- SD / mini SD / SDHC / SDXC
ࡑFNJዴᇡֹ-ׯTIPSU
崘ℏⰌ.
Close to chip
PIN11 PIN32 PIN48
LDO Mode
Gary_For common design
60 mil
PIN27
6-14-0R23F-01B-1
0.2_06
྽ᜢഈiptuႝྍ0!DBSE
ܘක-WDD`DBSE
ႝᓸᔈեܭ1/6ҷ-നϿሡ2ntය໔
PIN13
40 mil

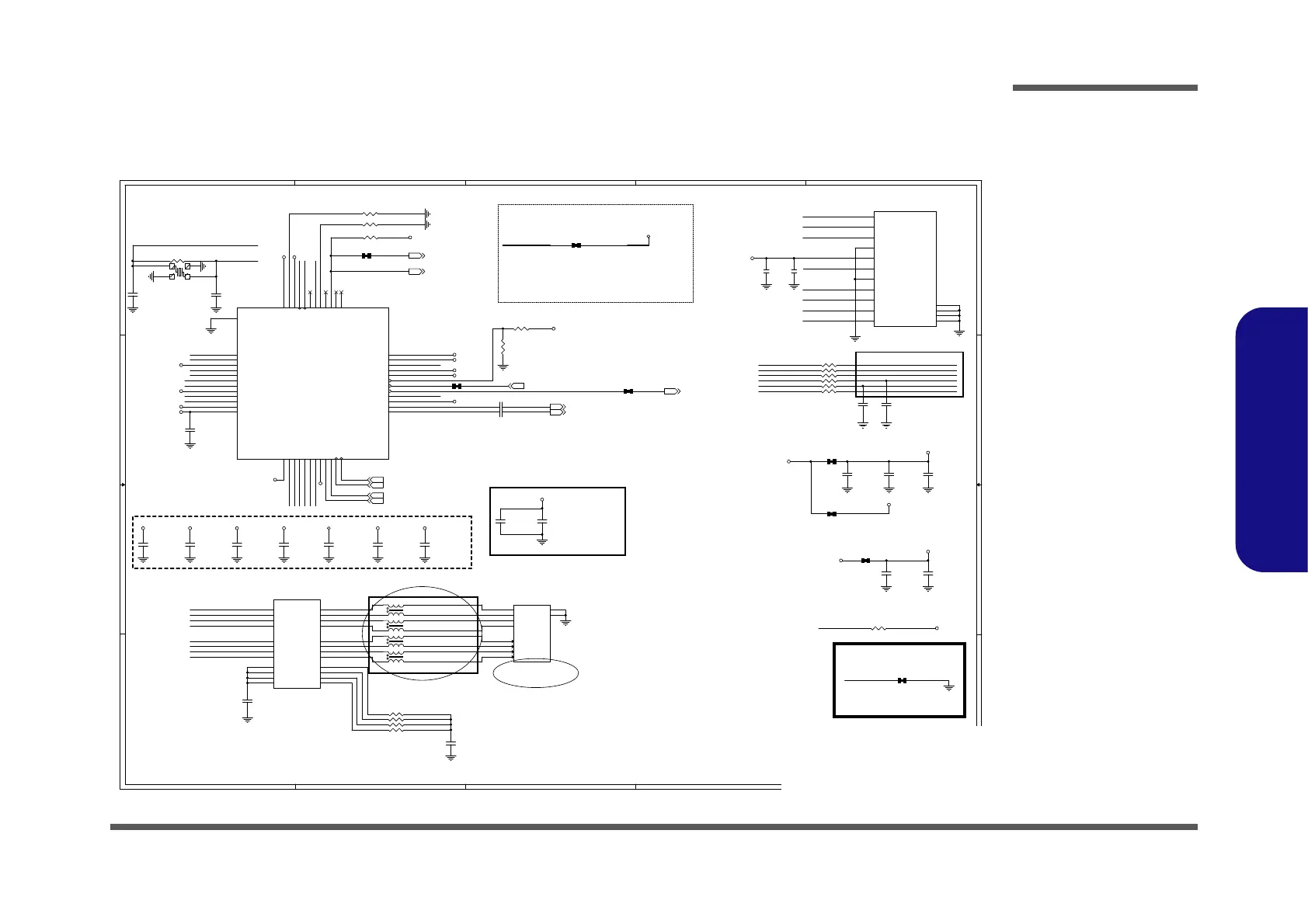

GIGA LAN (RTL8411)
LAN POART
PIN27
PCBfootprint:
HSX321G
ໆౢዴᇡMEP!NPEF
PLࡕ-
ׯTIPSU႟ҹ
慷䓊䡢娵⼴暣旣
,
㓡
SHORT
暞ẞ
Switching Regulator close to PIN48
(>20mil)
(>20mil)
PULL LOW: LDO Mode
MEP!Npef;!Mb-Db-Dc
ό΢ҹ-Sb΢ҹ
PIN32PIN3 PIN8 PIN46
6-03-08411-032
LAN (RTL8411B)
TO EC8587 PIN123 LAN_WAKEUP#
TO SB PCH WAKE#.
FOR S5 WAKE UP ON LAN
Near Cardreader CONN
capacitors must be close to pin side.
Remind that R576 using the
main power (S0 power).
MBO`DMLSFR$ӵό٬Ҕёᘐ໒-ܭQDIᆄޔௗQVMM!EPXO
BIOS pulls high or low to GPO pin,
Pkease refer to LAN/PHY Disable
Application Note.
PIN12
Crystal
㓡䓐HSX321S(3.2X2.5X0.65)
meet realtek Freq tolerance 50ppm
VDD3 meet rising time
>1ms
PIN20 PIN20
20171227
㓡䞕嶗
0919 modify
MAVDD33
MGND
MVDD33/18
MGND
MGND
MGND
MGND
MVDD10
MGND
MVDD10 MVDD10 MVDD10
MGND MGNDMGND
MVDD10
MGNDMGND
MVDD10
MVDD10
MAVDD33
MCARD_3V3
MEVDD10
MAVDD33
MGND
MVDD10
MREGOUT
MD3V3
MVDD10
MVDD33/18
MAVDD33
MGND
MVCC_CARD
MGND
MGND
M3.3VS
MGND
M3.3VS
MGNDMGND
MVDD10
MGNDMGND
MEVDD10
MGNDMGND
MGND
MGND
MVCC_CARD
MGND
MVDD3
MD3V3
MAVDD33
MGND MGND MGND
MGND
MVDD33/18
MVCC_CARD
MGND
MCARD_3V3
MGND
MPCIE_WAKE# 53
MPCIE_RXN5_GLAN 53
MPCIE_RXP5_GLAN 53
MCLK_PCIE_GLAN 53
MCLK_PCIE_GLAN# 53
MPCIE_TXP5_GLAN 53
MPCIE_TXN5_GLAN 53
MLAN_CLKREQ# 53
MBUF_PLT_RST# 53
MLAN_WAKEUP# 53
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB507-D02
D02
[54] MULTI /B(RTL8411B)
A3
54 57Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB507-D02
D02
[54] MULTI /B(RTL8411B)
A3
54 57Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB507-D02
D02
[54] MULTI /B(RTL8411B)
A3
54 57Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
MR17 75_1%_04
MR23 0_04
MR15 75_1%_04
MC27
12p_50V_NPO_04
MR22 0_04
ML1
GST5009 LF
TCT1
1
2
TD1+
3
TD1-
TCT2
4
5
TD2+
6
TD2-
TCT3
7
8
TD3+
9
TD3-
TCT4
10
11
TD4+
12
TD4-
13
MX4-
14
MX4+
MCT4
15
16
MX3-
17
MX3+
MCT3
18
19
MX2-
20
MX2+
MCT2
21
22
MX1-
23
MX1+
MCT1
24
MC28
12p_50V_NPO_04
MC37
0.1u_10V_X7R_04
MC7
1u_6.3V_X5R_04
MR11
*28mil_short_06
MC34
*0.1u_10V_X7R_04
MR4 1K_04
MR3 *0402_short
MC38
0.1u_16V_Y5V_04
MR26 0_04
MC30
100PF 2KV 1206
MR8 *28mil short-p
MR10
*28mil_short_06
MR25 0_04MR2 *0402_short
MR18 75_1%_04
MR5
15K_04
ML7
*WCM2012F2S-161T03-short
1
4
2
3
QFN48
MU1
RTL8411B
RTL8411B
MDIP0
1
MDIN0
2
MDIP1
4
MDIN1
5
MDIP2
6
MDIN2
7
AVDD10
8
MDIP3
9
MDIN3
10
HV_GIGA
11
VDD3
12
REG_OUT
36
VDDREG
35
VDD1
33
ISOLATEBPIN
31
PERSTBPIN
30
CLKREQBPIN
29
MS_BS/SD_WP#
28
DV33_18
27
HSON
26
HSOP
25
HV_GIGA
48
RSET
47
CKXTAL2
45
CKXTAL1
44
MS_CD#
43
SD_CD#
42
LED0
41
LED_CR
40
LANWAKEB
39
LED1/GPO
38
LED2
37
CARD_3V3
13
SD_D1
14
SD_D0/MS_D1
15
SD_CLK/MS_D0
16
SD_CMD/MS_D2
17
SD_D3/MS_D3
18
SD_D2/MS_CLK
19
VDDTX
20
HSIP
21
HSIN
22
REFCLK_P
23
REFCLK_N
24
E_PAD
49
AVDD10
3
VD33
32
ENSWREG
34
LV_CEN
46
MC26
0.1u_16V_Y5V_04
MR24 0_04
MR1
*20mil_short_04
MC33
*5p_50V_NPO_04
MC20
0.1u_16V_Y5V_04
MC22
0.1u_16V_Y5V_04
MC10
0.1u_16V_Y5V_04
MR16 75_1%_04
MC29
0.1u_16V_Y5V_04
MC24
0.1u_16V_Y5V_04
ML9
*WCM2012F2S-161T03-short
1
4
2
3
MC9
0.1u_16V_Y5V_04
MC35
*5p_50V_NPO_04
ML10
*WCM2012F2S-161T03-short
1
4
2
3
MX1
FSX3L 25MHZ
1 2
34
MC36
4.7u_6.3V_X5R_06
MR27
*20mil_short_04
MC6 0.1u_10V_X7R_04
MR21 0_04
PJS-08SL3B
MJ_RJ1
PN = 6-21-B4080-008
130451-02
DD-
8
DD+
7
DB-
6
DC-
5
DC+
4
DB+
3
DA-
2
DA+
1
shield
GND1
shield
GND2
MC23
0.1u_16V_Y5V_04
MR20 0.2R_5%_06
MR13 2.49K_1%_04
MR19 1M_04
MJ_CARD1
CM2S-061-H-N
PN = 6-21-A4450-111
SD-10395-001-3
SD_C/D
P11
SD_DATA1
P8
SD_DATA0
P7
SD_VSS2
P6
SD_CLK
P5
SD_VDD
P4
SD_VSS1
P3
SD_CMD
P2
SD_DATA3
P1
GND1
GND1
GND2
GND2
SD_DATA2
P9
SD_WP
P10
GND3
GND3
GND4
GND4
MC5 0.1u_10V_X7R_04
MC11
0.01u_16V_X7R_04
MR9
*28mil_short_06
MR12 *1K_04
MC1
*4.7u_6.3V_X5R_06
MC8
0.1u_16V_Y5V_04
ML6
*WCM2012F2S-161T03-short
1
4
2
3
MC21
0.1u_16V_Y5V_04
MR14 *10K_04
MC13
0.1u_16V_Y5V_04
MSD_D1_R
MSD_D3/MS_D3_R
MSD_CMD/MS_D2_R
MMS_BS/SD_WP#
MSD_D0/MS_D1_R
MSD_CD#
MSD_CMD/MS_D2 MSD_CMD/MS_D2_R
MSD_D0/MS_D1_R
MSD_D1_R
MSD_CLK/MS_D0_R
MSD_D3/MS_D3_R
MSD_D1
MSD_CLK/MS_D0
MSD_D3/MS_D3
MSD_D0/MS_D1
MSD_D2/MS_CLK
MCARD_3V3
MLMX1+
MNMCT_4
MLMX3+
MLMX1-
MNMCT_3
MNMCT_1
MLMX4+
MLMX2-
MLMX4-
MNMCT_2
MLMX2+
MLMX3-
MSD_CLK/MS_D0_R
MNMCT_R
MDLMX4-
MDLMX3-
MDLMX3+
MDLMX2+
MDLMX1+
MDLMX4+
MDLMX1-
MLAN_MDIN3
MLAN_MDIP2
MLAN_MDIN0
MLAN_MDIN2
MLAN_MDIP0
MLAN_MDIP1
MLAN_MDIN1
MLAN_MDIP3
MNTCT
MDLMX2-
MSD_D2/MS_CLK_R
MSD_D2/MS_CLK_R
MENSWREG
MREGOUTMXTAL1
MXTAL2
MRTL8411B_HSOP
MGND
MISOLATEB
MRTL8411B_HSON
MLAN_WAKEUP#
MENSWREG
MLAN_MDIP1
MCLKREQB
MLAN_MDIN1
MMS_BS/SD_WP#
MREGOUT
MSD_CD#
MLAN_MDIP2
MLAN_MDIN2
MLAN_MDIP3
MLAN_MDIN3
MSD_D1 MSD_CMD/MS_D2 MSD_CLK/MS_D0 MSD_D0/MS_D1
MEECS
MRSET
MSD_D3/MS_D3
MLAN_MDIP0
MXTAL2 MXTAL1
MSD_D2/MS_CLK
MLAN_MDIN0
Sheet 54 of 57
RTL8411B
