Clevo NB50TK1 - Processor 4;6

Schematic Diagrams
B - 6 Processor 4/6
B.Schematic Diagrams
Processor 4/6
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A

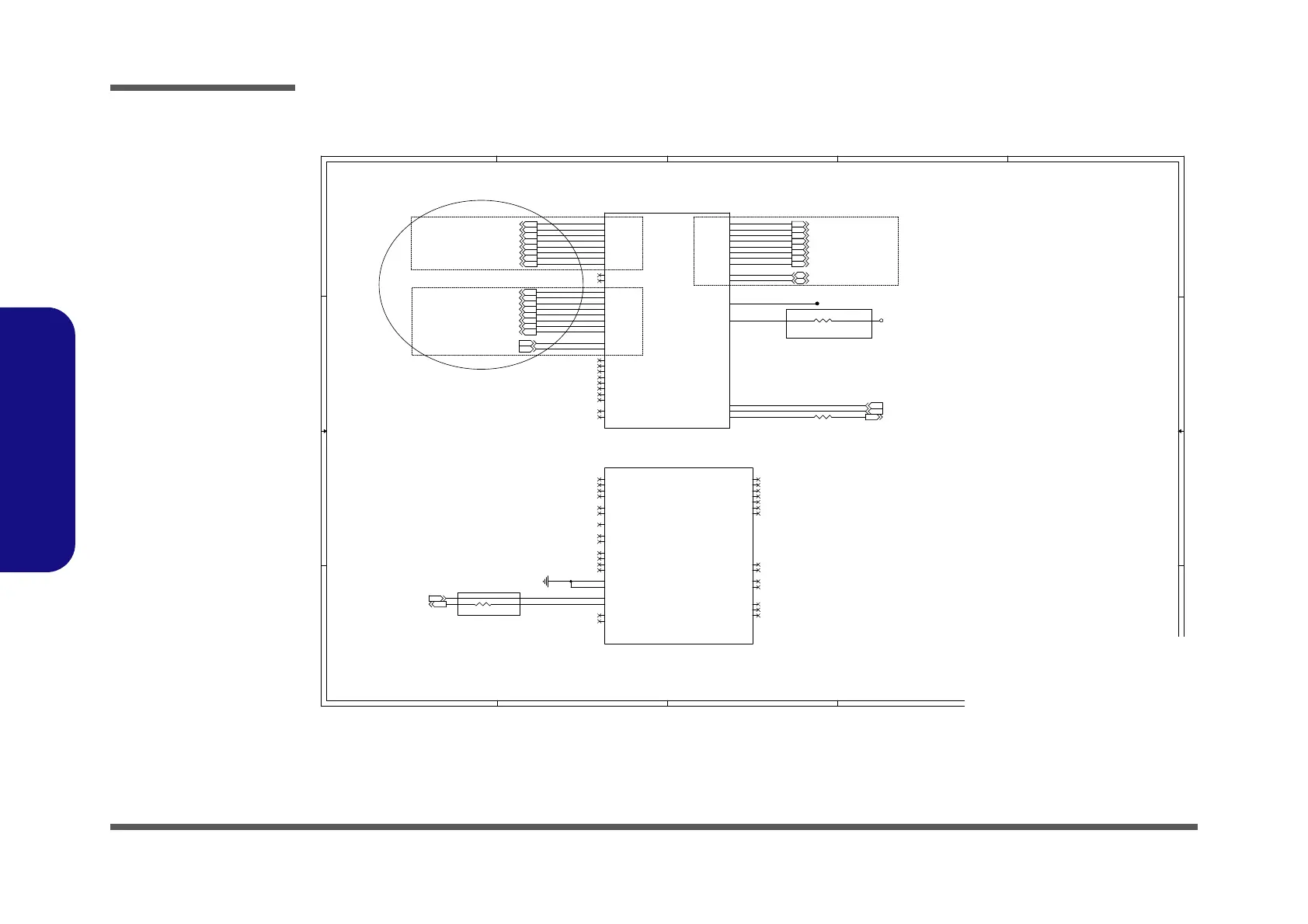

Coffee Lake-S Processor 4/6 ( DISPLAY RESERVED)
Width = 5mil
Space = 25mil
lengh = 600mil(max)
eDP
mDP
HDMI
1.4b
CHECK
INSIDE CPU CAVITY
CLOSE WITHIN BREAK OUT CPU
(<200MILS)
0823 CHANGE PORT(Ming sir)
VCCIO
AUD_AZACPU_SDO_R 27
AUD_AZACPU_SCLK 27
AUD_AZACPU_SDI 27
EDP_TXN_0 23
EDP_TXN_1 23
EDP_TXP_1 23
EDP_TXP_0 23
EDP_AUXP 23
EDP_AUXN 23
PCH_2_CPU_TRIGGER31
CPU_2_PCH_TRIGGER31
EDP_TXN_2 23
EDP_TXP_2 23
EDP_TXN_3 23
EDP_TXP_3 23
HDMI_DATA2P22
HDMI_DATA2N22
HDMI_DATA0P22
HDMI_DATA0N22
HDMI_DATA1N22
HDMI_DATA1P22
HDMI_CLOCKN22
HDMI_CLOCKP22
MDP_D020
MDP_D#020
MDP_D#120
MDP_D120
MDP_D220
MDP_D#220
MDP_D320
MDP_D#320
IGPU_AUX_CH_N20
IGPU_AUX_CH_P20
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB500-D02
D02
[05] PROCESSOR 5/6
B
557Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NB50TJ1-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB500-D02
D02
[05] PROCESSOR 5/6
B
557Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NB50TJ1-D02
Title
Size Document Number Rev
Date: Sheet
of
6-71-NB500-D02
D02
[05] PROCESSOR 5/6
B
557Friday, December 29, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
NB50TJ1-D02
U30D
3H993921-4M41-02H
4 OF 12
lga1151
PN = 6-86-25B51-001
DDI3_AUXP
B11
DDI3_AUXN
C11
DDI3_TXN_3
B17
DDI3_TXP_3
C17
DDI3_TXN_2
A16
DDI3_TXP_2
B16
DDI3_TXN_1
B15
DDI3_TXP_1
C15
DDI3_TXN_0
A14
DDI3_TXP_0
B14
DDI2_AUXP
A12
DDI2_AUXN
B12
DDI2_TXN_3
E20
DDI1_AUXN
C13
DDI2_TXP_0
B18
DDI2_TXN_0
A18
DDI2_TXP_1
D18
DDI2_TXN_1
E18
DDI2_TXP_2
C19
DDI2_TXP_3
D20
DDI2_TXN_2
D19
DDI1_AUXP
B13
EDP_DISP_UTIL
D14
EDP_AUXN
E12
EDP_AUXP
D12
EDP_TXP_3
F9
EDP_TXN_3
G9
EDP_TXP_1
D9
EDP_TXN_0
D10
EDP_TXP_0
E10
DDI1_TXP_0
C21
DDI1_TXP_3
C23
DDI1_TXN_2
A23
DDI1_TXP_2
B23
DDI1_TXN_0
D21
DDI1_TXP_1
D22
DDI1_TXN_1
E22
EDP_TXP_2
G10
EDP_TXN_2
H10
EDP_TXN_1
C9
DDI1_TXN_3
D23
PROC_AUDIO_CLK
V3
DISP_RCOMP
M9
PROC_AUDIO_SDI
V2
PROC_AUDIO_SDO
U1
R18 20_1%_04
U30J
3H993921-4M41-02H
10 OF 12
lga1151
PN = 6-86-25B51-001
RSVD19
J19
RSVD18
J17
RSVD9
AW2
RSVD17
J15
RSVD8
AV1
RSVD16
J14
RSVD7
AU9
RSVD_TP3
K8
RSVD15
J13
VSS_AY3
AY3
RSVD6
AU10
RSVD25
L12
RSVD_TP2
J8
RSVD14
J11
RSVD5
AJ22
RSVD24
L10
RSVD_TP1
J7
RSVD13
H8
VSS_G8
G8
RSVD4
AC37
RSVD23
K13
RSVD12
D15
RSVD3
AB38
RSVD22
K12
RSVD11
C40
RSVD2
AB37
RSVD21
K11
RSVD10
B39
PROC_TRIGOUT
B3
RSVD1
AB35
IST_TRIG
L8
RSVD20
K10
PROC_TRIGIN
D1
R53 20_1%_04
R343 24.9_1%_04
EDP_UTIL
DP_RCOMP
AUD_AZACPU_SDO_R
AUD_AZACPU_SDI_R
AUD_AZACPU_SCLK
CPU_2_PCH_TRIGGER_R
Sheet 5 of 57
Processor 4/6
