Clevo NB50TK1 - Mainboard Overview - Top (Connectors)

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

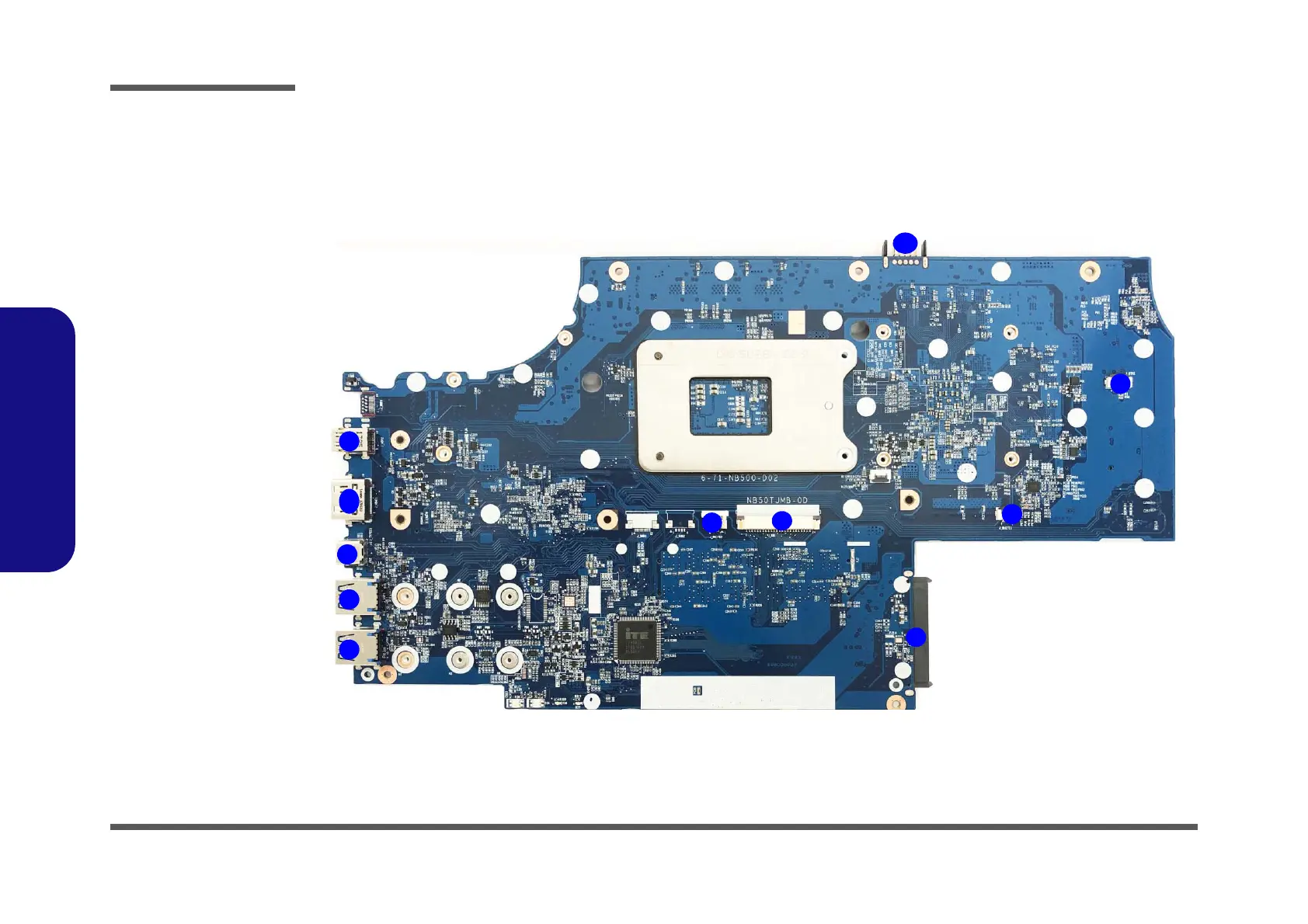

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. Mini Display Port
2. HDMI-Out Port
3. USB Port 3.1
(Type C)
Connector
4. USB Port 3.1
(Type A)
Connector
5. KB LED (White)
Connector
6. Keyboard Cable
Connector
7. HDD Connector
8. KB LED (White)
Connector
9. Power Button
Connector
10. Battery
Connector
10
7
8
6
5
1
2
4
3
4
9
