Clevo P170HM

Disassembly
Removing the Hard Disk from the Secondary HDD Bay 2 - 11
2.Disassembly
5. Remove screws - and the insulation plate (Figure 7d).
6. Reverse the process to install a new disk (make sure you install the insulation plate).
7. Slide the HDD assembly into the bay at an angle as illustrated.
8. Make sure the insulation plate slides under the HDD bay guide at point .
9. Slide the assembly in the direction of the arrow and secure the assembly with the screws.

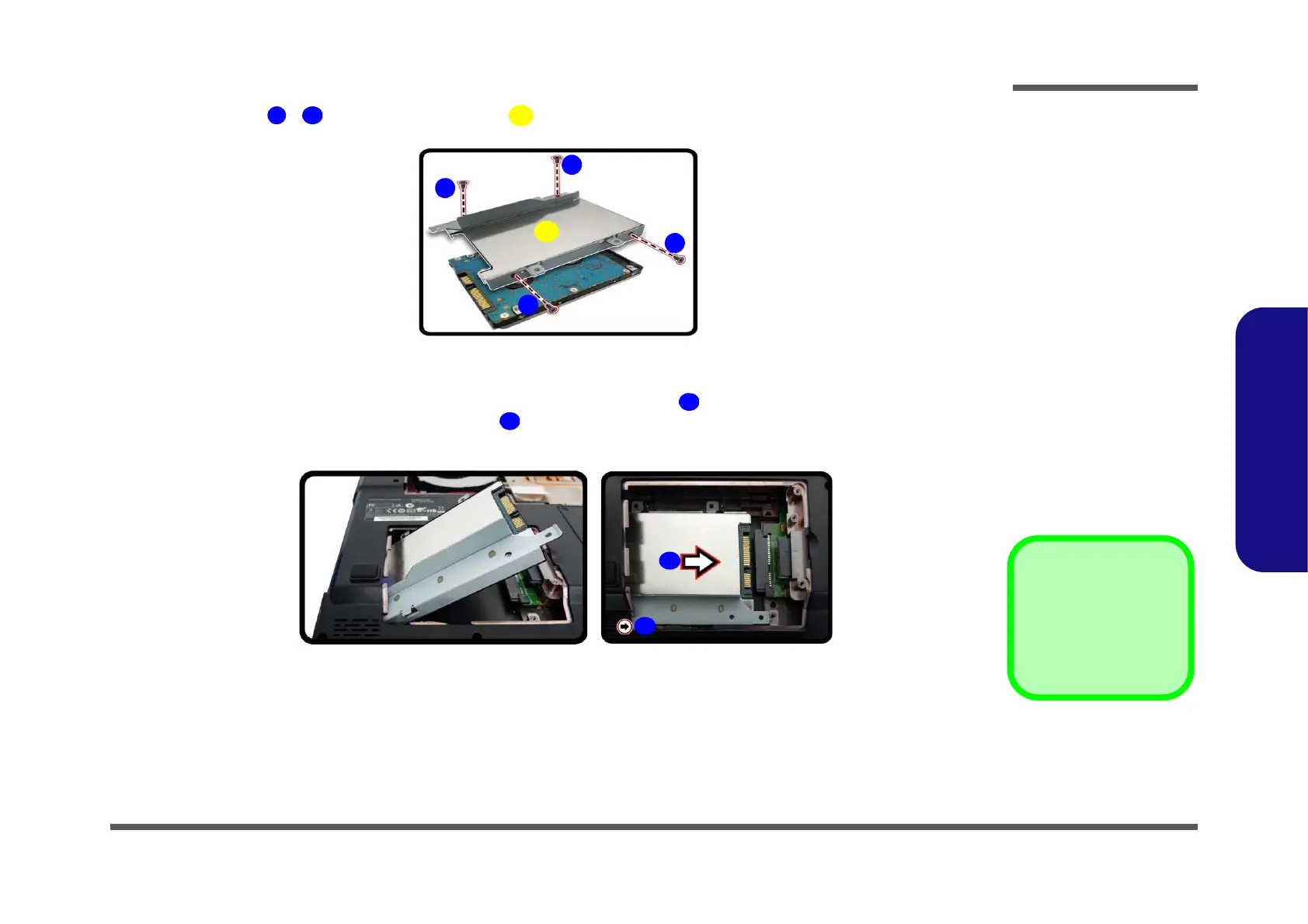

Figure 7
Secondary HDD
Assembly Removal
d. Remove the screws and
the insulation plate.

10. HDD Insulation Plate
•4 Screws
6
9
10
9
7
6
8
d.
10
11
12
9
7
8
11
12
