Advanced M52 Microprocessor User's Guide
ADVANCED M52UMCT2019 COLOR 13
The Control Panel

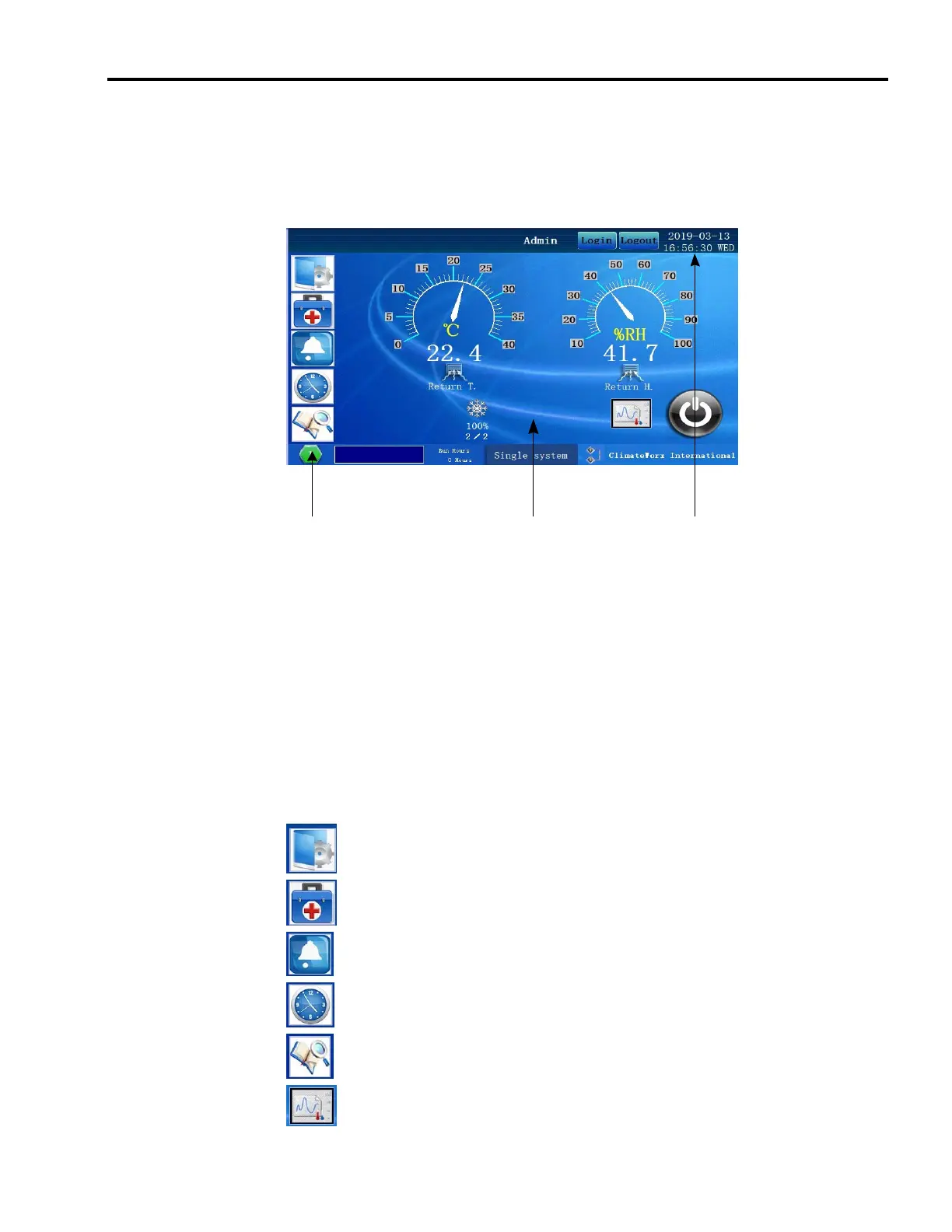

The control panel is formed by a graphic LCD display and an overlay touch screen keypad. The
layout of the screen consists of three distinctive regions - the Banner line, the Active tab display
area and the Tab bar. The tabs are set-up like the tabs in a 3-ring binder. Each section contains
different information.
ctive Tab Display Area
ab Bar Banner Line
The Banner line shows the current date and time. Date is in DD/MM/YYYY format and time in
24-hour HH:mm format.
Active tab display area
Data and information are grouped into tabs for ease of retrieval. The Active tab display area
shows information corresponding to the current selected tab.
Tab bar
Tab bar shows the available tabs and allows user to switch tab display by pressing the
corresponding tab icon. There are 7 tabs in the Tab bar:
Settings Tab
Testmode Tab
Alarm Tab
Timer On/ Off Schedule Tab
Historical Event Tab
Temperature and Humidity Graph Tab
